MRF1517NT1
5
RF Device Data
Freescale Semiconductor

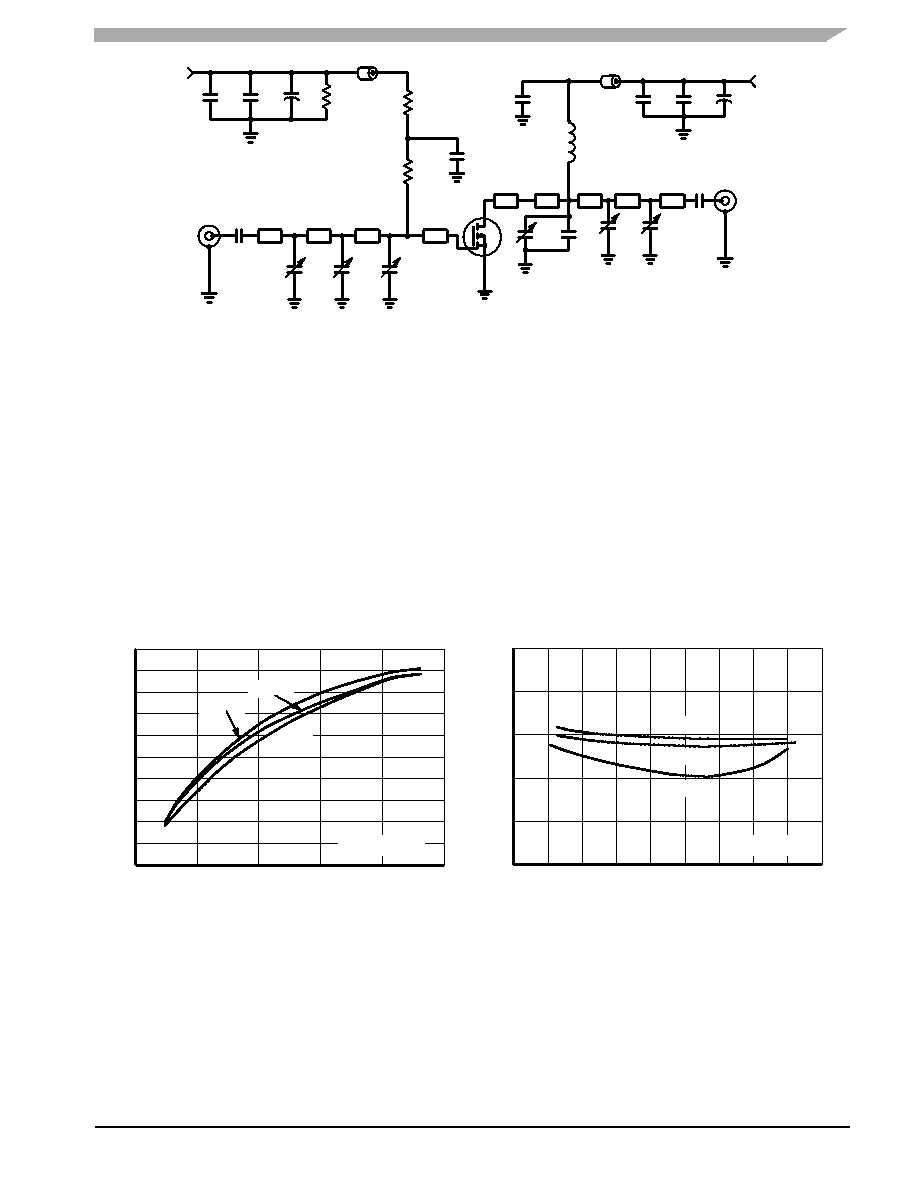

Figure 10. 400 - 440 MHz Broadband Test Circuit
VDD
C6
R3
C7
C5
R2
RF
INPUT
RF
OUTPUT
Z2
Z3
Z5
C1
C3
C13
DUT
Z6
Z8
Z9
Z4
L1
Z7
N2
C17
B2
N1
+
C12
C4
C11
B1, B2
Short Ferrite Beads, Fair Rite Products
(2743021446)
C1, C13
300 pF, 100 mil Chip Capacitors
C2, C3, C4, C10,
C11, C12
0 to 20 pF, Trimmer Capacitors
C5, C17
130 pF, 100 mil Chip Capacitors
C6, C14
10 μF, 50 V Electrolytic Capacitors
C7, C15
0.1 μF, 100 mil Chip Capacitors
C8, C16
1,000 pF, 100 mil Chip Capacitors
C9
33 pF, 100 mil Chip Capacitor
L1
55.5 nH, 5 Turn, Coilcraft
N1, N2
Type N Flange Mounts
R1
12 Ω, 0805 Chip Resistor
R2
1.0 kΩ, 1/8 W Resistor
R3
33 kΩ, 1/2 W Resistor
Z1
0.617″ x 0.080″ Microstrip
Z2
0.723″ x 0.080″ Microstrip
Z3
0.513″ x 0.080″ Microstrip
Z4, Z5
0.260″ x 0.223″ Microstrip
Z6
0.048″ x 0.080″ Microstrip
Z7
0.577″ x 0.080″ Microstrip
Z8
1.135″ x 0.080″ Microstrip
Z9
0.076″ x 0.080″ Microstrip
Board
Glass Teflon, 31 mils, 2 oz. Copper
Z1
C2
VGG
C14
+
C8
B1
R1
C15
C16
C9
C10
TYPICAL CHARACTERISTICS, 400 - 440 MHz
Pout, OUTPUT POWER (WATTS)
IRL,
INPUT
RETURN
LOSS
(dB)
5
15
25
10
2
1
0
45
Figure 11. Output Power versus Input Power
Pin, INPUT POWER (WATTS)
2
Figure 12. Input Return Loss versus Output Power
P out
,
OUTPUT
POWER
(W
A
TTS)
0
6
0.4
0.1
4
440 MHz
0.3
0.5
0.2
0
10
400 MHz
3
9
7
68
9
710
20
400 MHz
420 MHz
440 MHz
1
3
5
8
420 MHz
VDD = 7.5 Vdc
