MRF19045R3 MRF19045LR3 MRF19045SR3 MRF19045LSR3
MOTOROLA RF DEVICE DATA

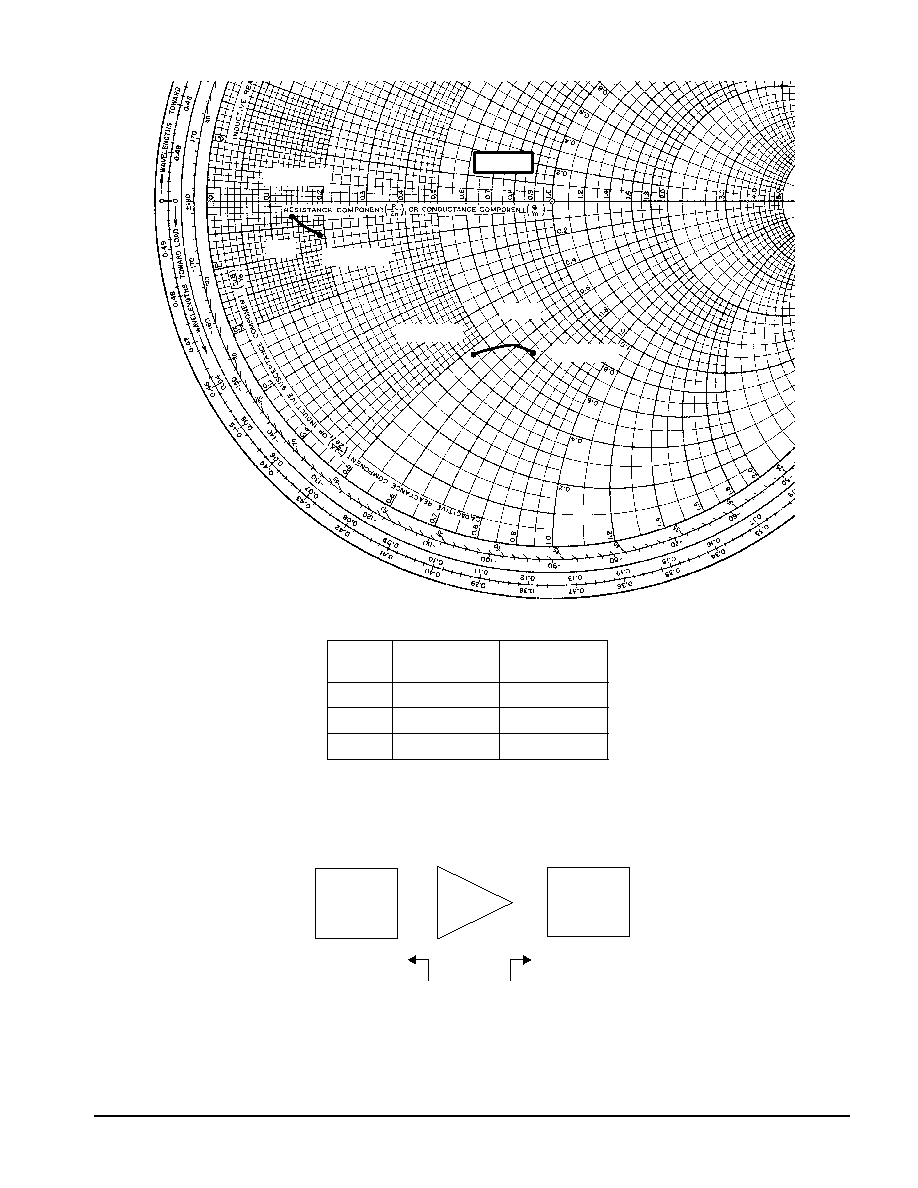

Figure 15. Series Equivalent Input and Output Impedance
f
MHz
Zsource
Zload
1930
1960
1990
15.52 - j16.5
11.11 - j13.01
14.24 - j14.44
4.52 - j1.86
3.85 - j1.04
3.44 - j0.69
VDD = 26 V, IDQ = 550 mA, Pout = 9 W Avg., 2Carrier NCDMA
Zo = 25
f = 1930 MHz
f = 1990 MHz
Zsource
Zload
Zsource = Test circuit impedance as measured from
gate to ground.
Zload
= Test circuit impedance as measured
from drain to ground.
Z source
Z load
Input
Matching
Network
Device
Under Test
Output
Matching
Network
