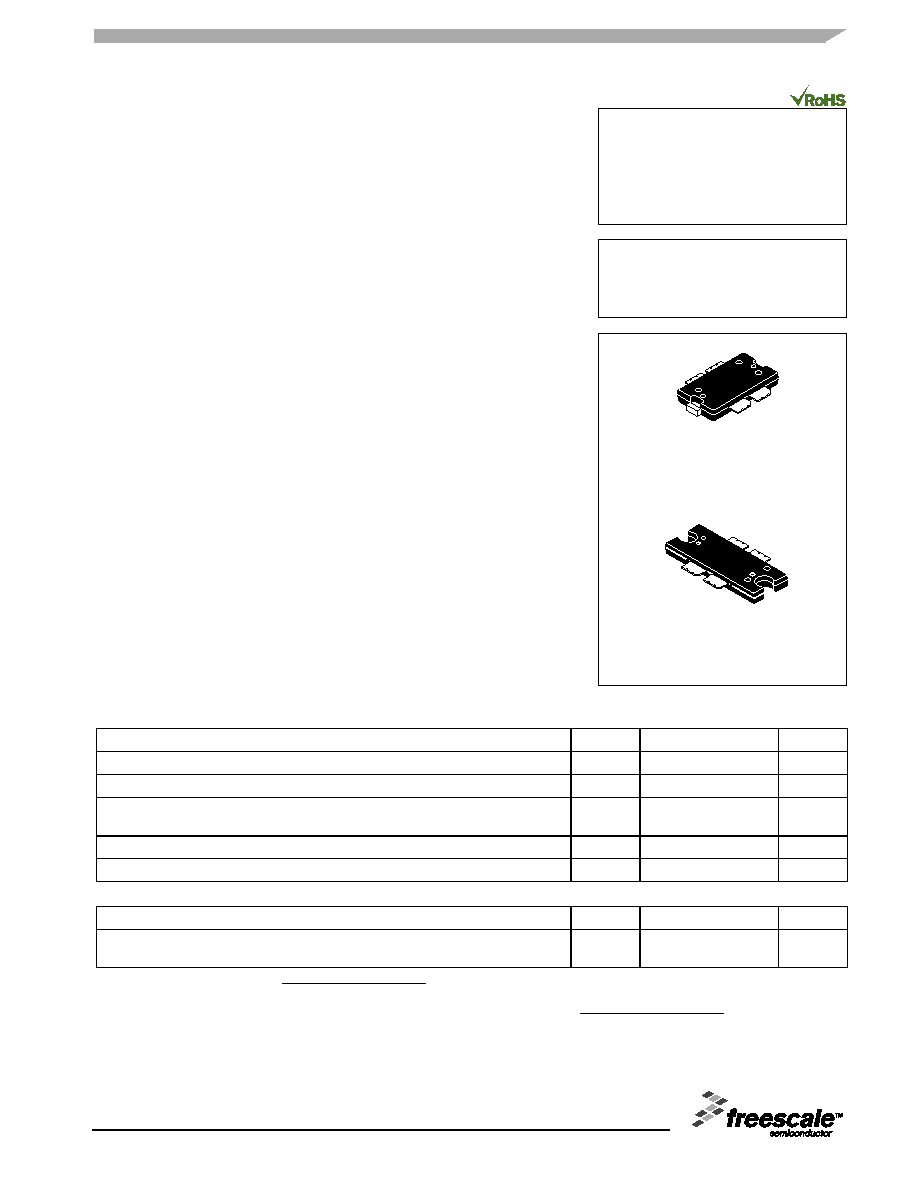

MRF5S19060NR1 MRF5S19060NBR1
1
RF Device Data
Freescale Semiconductor
RF Power Field Effect Transistors
N-Channel Enhancement-Mode Lateral MOSFETs
Designed for broadband commercial and industrial applications with
frequenc ies from 1930 to 1990 MHz . The high gain and broadband
performance of these devices make them ideal for large - signal, common -
source amplifier applications in 28 Volt base station equipment.
Typical 2-carrier N-CDMA Performance: VDD = 28 Volts, IDQ = 750 mA,
Pout = 12 Watts Avg., 1990 MHz, IS-95 (Pilot, Sync, Paging, Traffic Codes
8 Through 13) Channel Bandwidth = 1.2288 MHz. PAR = 9.8 dB @ 0.01%
Probability on CCDF.
Power Gain — 14 dB
Drain Efficiency — 23%
IM3 @ 2.5 MHz Offset — -37 dBc in 1.2288 MHz Channel Bandwidth
ACPR @ 885 kHz Offset — -51 dBc in 30 kHz Channel Bandwidth
Capable of Handling 5:1 VSWR, @ 28 Vdc, 1960 MHz, 12 Watts CW
Output Power
Features
Characterized with Series Equivalent Large-Signal Impedance Parameters
Internally Matched for Ease of Use
Integrated ESD Protection
200°C Capable Plastic Package
N Suffix Indicates Lead-Free Terminations. RoHS Compliant.
In Tape and Reel. R1 Suffix = 500 Units per 44 mm, 13 inch Reel.
Table 1. Maximum Ratings
Rating
Symbol
Value
Unit
Drain-Source Voltage
VDSS
-0.5, +65
Vdc
Gate-Source Voltage
VGS
-0.5, +15
Vdc
Total Device Dissipation @ TC = 25°C
Derate above 25°C
PD
218.8
1.25
W
W/°C
Storage Temperature Range
Tstg
- 65 to +175
°C
Operating Junction Temperature
TJ
200
°C
Table 2. Thermal Characteristics
Characteristic
Symbol
Value (1,2)
Unit
Thermal Resistance, Junction to Case
Case Temperature 75°C, 12 W CW
RθJC
0.80
°C/W
1. MTTF calculator available at http://www.freescale.com/rf. Select Software & Tools/Development Tools/Calculators to access MTTF
calculators by product.
2. Refer to AN1955, Thermal Measurement Methodology of RF Power Amplifiers. Go to http://www.freescale.com/rf.
Select Documentation/Application Notes - AN1955.
Document Number: MRF5S19060N
Rev. 7, 10/2008
Freescale Semiconductor
Technical Data
MRF5S19060NR1
MRF5S19060NBR1
1930-1990 MHz, 12 W AVG., 28 V
2 x N-CDMA
LATERAL N-CHANNEL
RF POWER MOSFETs
CASE 1486-03, STYLE 1
TO-270 WB-4
PLASTIC
MRF5S19060NR1
CASE 1484-04, STYLE 1
TO-272 WB-4
PLASTIC
MRF5S19060NBR1
Freescale Semiconductor, Inc., 2008. All rights reserved.
