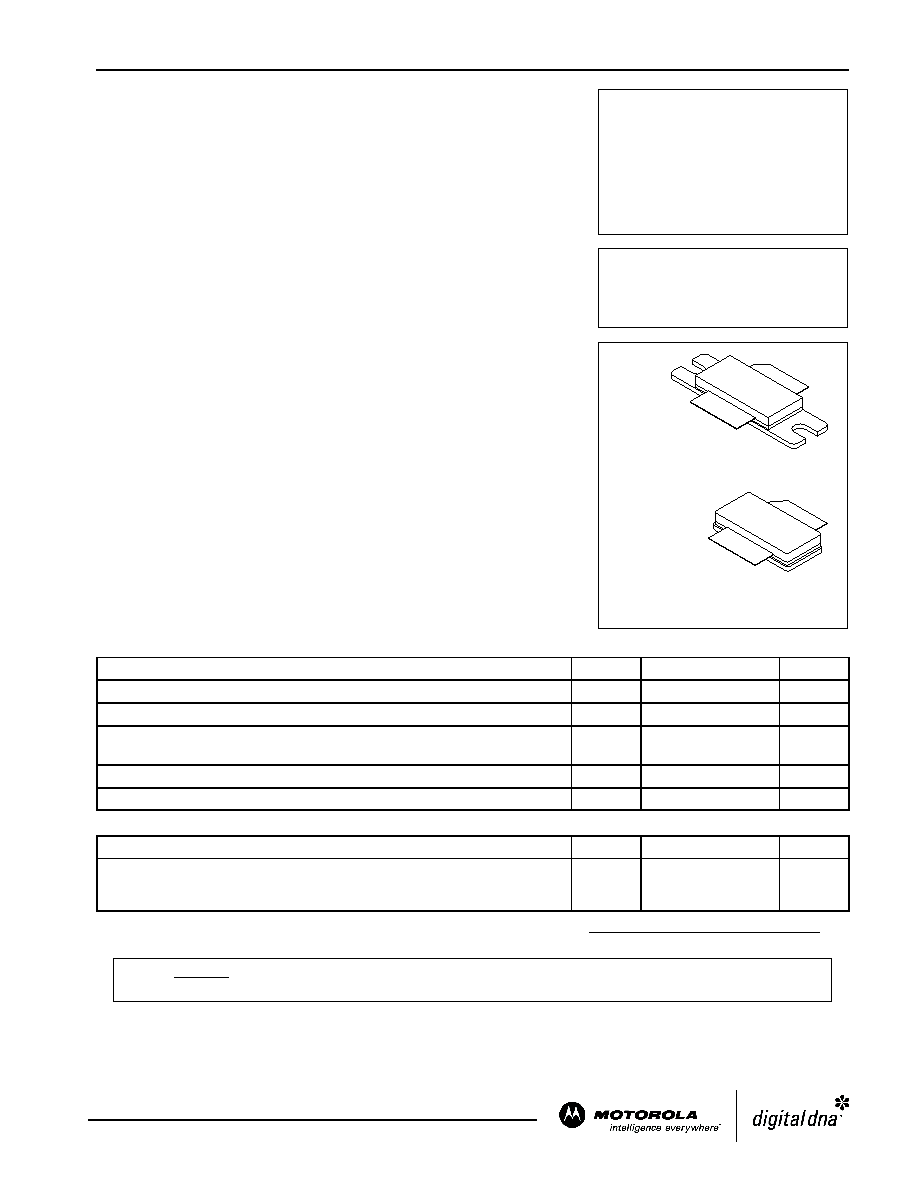

MRF5S21100HR3 MRF5S21100HSR3
MOTOROLA RF DEVICE DATA
The RF MOSFET Line
RF Power Field Effect Transistors
N-Channel Enhancement-Mode Lateral MOSFETs
Designed for W-CDMA base station applications with frequencies from 2110
to 2170 MHz. Suitable for TDMA, CDMA and multicarrier amplifier applica-
tions. To be used in Class AB for PCN - PCS/cellular radio and WLL
applications.
Typical 2-carrier W-CDMA Performance: VDD = 28 Volts, IDQ = 1050 mA,
Pout = 23 Watts Avg., Full Frequency Band, Channel Bandwidth =
3.84 MHz, Peak/Avg. = 8.5 dB @ 0.01% Probability on CCDF.
Power Gain — 13.5 dB
Drain Efficiency — 26%
IM3 @ 10 MHz Offset — -37 dBc @ 3.84 MHz Channel Bandwidth
ACPR @ 5 MHz Offset — -40 dBc @ 3.84 MHz Channel Bandwidth
Capable of Handling 10:1 VSWR, @ 28 Vdc, 2140 MHz, 100 Watts CW
Output Power
Characterized with Series Equivalent Large-Signal Impedance Parameters
Internally Matched, Controlled Q, for Ease of Use
Qualified Up to a Maximum of 32 VDD Operation
Integrated ESD Protection
Lower Thermal Resistance Package
Low Gold Plating Thickness on Leads, 40″ Nominal.
In Tape and Reel. R3 Suffix = 250 Units per 56 mm, 13 inch Reel.
MAXIMUM RATINGS
Rating
Symbol
Value
Unit
Drain-Source Voltage
VDSS
65
Vdc
Gate-Source Voltage
VGS
-0.5, +15
Vdc
Total Device Dissipation @ TC = 25°C
Derate above 25°C
PD
273
1.56
Watts
W/°C
Storage Temperature Range
Tstg
- 65 to +150
°C
Operating Junction Temperature
TJ
200
°C
THERMAL CHARACTERISTICS
Characteristic
Symbol
Value (1)
Unit
Thermal Resistance, Junction to Case
Case Temperature 80°C, 100 W CW
Case Temperature 80°C, 23 W CW
RθJC
0.57
0.64
°C/W
(1) Refer to AN1955/D, Thermal Measurement Methodology of RF Power Amplifiers. Go to http://www.motorola.com/semiconductors/rf.
Select Documentation/Application Notes - AN1955.
NOTE - CAUTION - MOS devices are susceptible to damage from electrostatic charge. Reasonable precautions in handling and
packaging MOS devices should be observed.
Order this document
by MRF5S21100H/D
MOTOROLA
SEMICONDUCTOR TECHNICAL DATA
MRF5S21100HR3
MRF5S21100HSR3
2170 MHz, 23 W AVG., 28 V
2 x W-CDMA
LATERAL N-CHANNEL
RF POWER MOSFETs
CASE 465-06, STYLE 1
NI-780
MRF5S21100HR3
CASE 465A-06, STYLE 1
NI-780S
MRF5S21100HSR3
Motorola, Inc. 2004
REV 1
