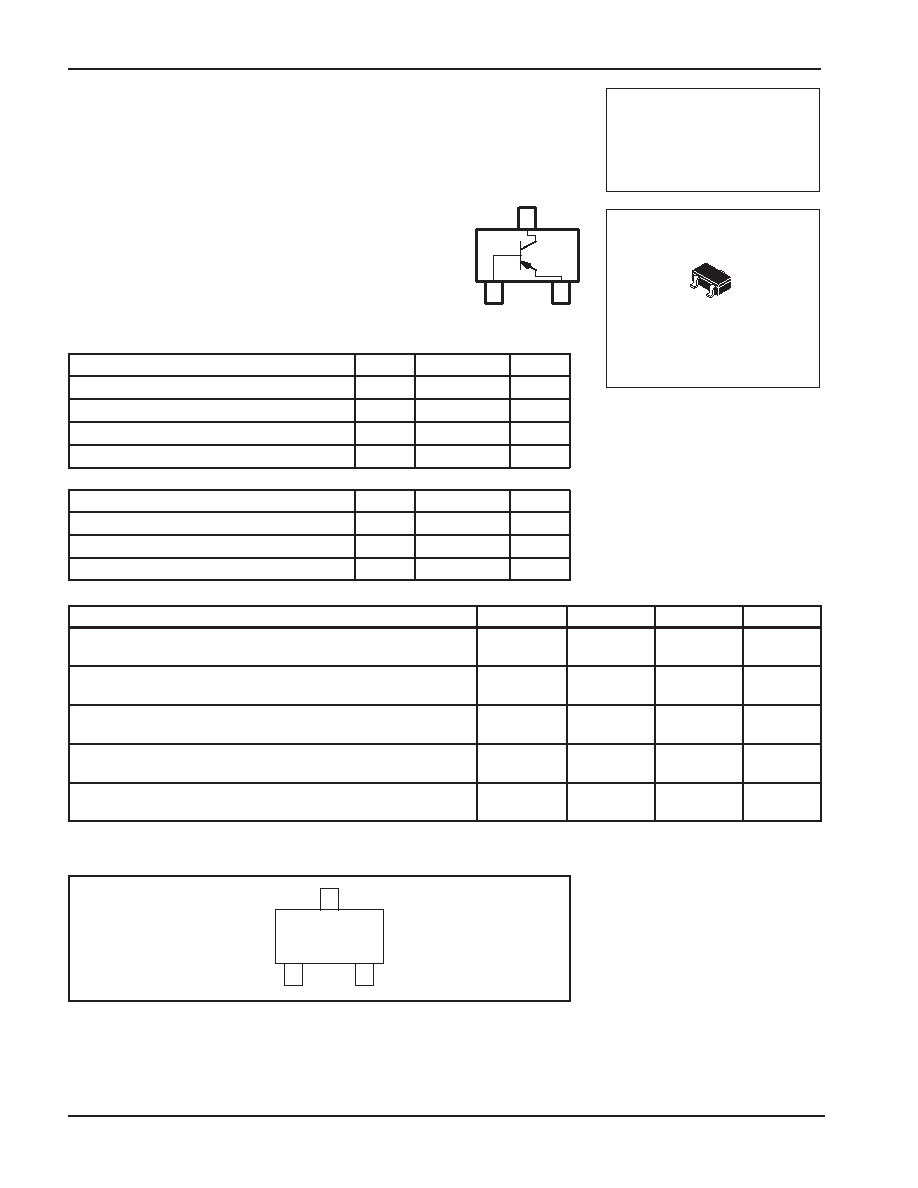

2–716
Motorola Small–Signal Transistors, FETs and Diodes Device Data
PNP RF Amplifier Transistor
Surface Mount
MAXIMUM RATINGS (TA = 25°C)
Rating
Symbol
Value
Unit
Collector–Base Voltage
VCBO
–30
Vdc
Collector–Emitter Voltage
VCEO
–20
Vdc
Emitter–Base Voltage
VEBO
– 5.0
Vdc
Collector Current — Continuous
IC
–30
mAdc
THERMAL CHARACTERISTICS
Characteristic
Symbol
Max
Unit
Power Dissipation
PD
200
mW
Junction Temperature
TJ
150
°C
Storage Temperature
Tstg
– 55 ~ +150
°C
ELECTRICAL CHARACTERISTICS (TA = 25°C)
Characteristic
Symbol
Min
Max
Unit
Collector Cutoff Current
(VCB = –10 Vdc, IE = 0)
ICBO
—
– 0.1
Adc
Collector–Emitter Breakdown Voltage
(VCE = – 20 Vdc, IB = 0)
ICEO
—
–100
Adc
Emitter–Base Breakdown Voltage
(VEB = – 5.0 Vdc, IC = 0)
IEBO
—
–10
Adc
DC Current Gain(1)
(VCE = –10 Vdc, IC = –1.0 mAdc)
hFE
110
220
—
Current–Gain — Bandwidth Product
(VCB = –10 Vdc, IE = 1.0 mAdc)
fT
150
—
MHz
1. Pulse Test: Pulse Width
≤ 300 s, D.C. ≤ 2%.
DEVICE MARKING
Marking Symbol
ECX
The “X” represents a smaller alpha digit Date Code. The Date Code indicates the actual month
in which the part was manufactured.
Preferred devices are Motorola recommended choices for future use and best overall value.
MOTOROLA
SEMICONDUCTOR TECHNICAL DATA
MSA1022-CT1
Motorola Preferred Device
CASE 318D–03, STYLE 1
SC–59
2
1
3
COLLECTOR
3
2
BASE
1
EMITTER
(Replaces MSA1022–BT1/D)
