Semiconductor Components Industries, LLC, 2002
May, 2002 – Rev. 2
1
Publication Order Number:
NCP562/D

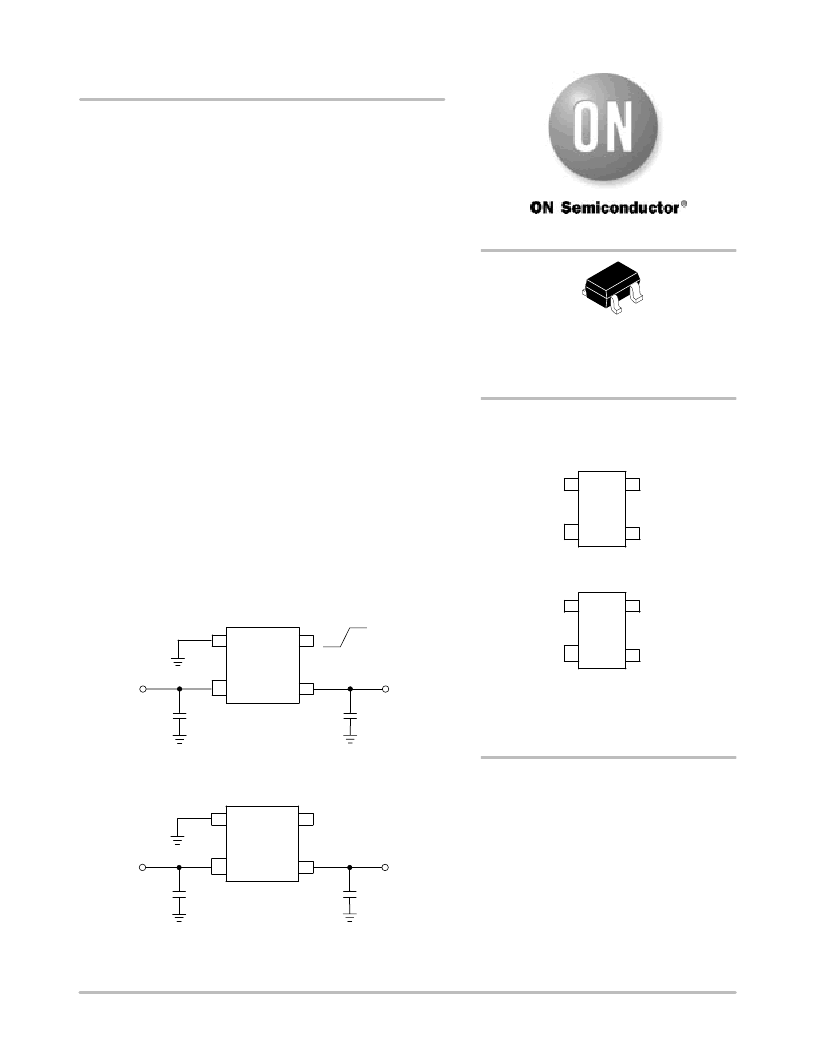

NCP562, NCP563
80 mA CMOS Low Iq
Low-Dropout Voltage
Regulator
This series of fixed output low–dropout linear regulators are
designed for handheld communication equipment and portable battery
powered applications which require low quiescent. This series
features an ultra–low quiescent current of 2.5
contains a voltage reference unit, an error amplifier, a PMOS power
transistor, resistors for setting output voltage, current limit, and
temperature limit protection circuits. The NCP562 series provides an
enable pin for ON/OFF control.
The NCP562 has been designed to be used with low cost ceramic
capacitors and requires a minimum output capacitor of 0.1 F. The
device is housed in the micro–miniature SC82–AB surface mount
package. Standard voltage versions are 1.5, 1.8, 2.5, 2.7, 2.8, 3.0, 3.3,
and 5.0 V. Other voltages are available in 100 mV steps.
A. Each device
Features
Low Quiescent Current of 2.5 A Typical
Low Output Voltage Option
Output Voltage Accuracy of 2.0%
Temperature Range of –40
°
C to 85
°
C
NCP562 Provides an Enable Pin
Typical Applications
Battery Powered Instruments
Hand–Held Instruments
Camcorders and Cameras
Figure 1. NCP562 Typical Application Diagram
This device contains 28 active transistors
Output
C2
+
Input
Gnd
Enable
V
in
V
out
+
C1
OFF
ON
Figure 2. NCP563 Typical Application Diagram
This device contains 28 active transistors
Output
C2
+
Input
Gnd
N/C
V
in
V
out
+
C1
See detailed ordering and shipping information in the package
dimensions section on page 9 of this data sheet.
ORDERING INFORMATION
SC82–AB (SC70–4)
SQ SUFFIX
CASE 419C
1
4
PIN CONNECTIONS &
MARKING DIAGRAMS
Gnd
(NCP562 Top View)
1
2
4
3
V
in
Enable
V
out
x
xxx
M
= Device Code
= Date Code
Gnd 1
2
4
3
V
in
N/C
V
out
x
(NCP563 Top View)
http://onsemi.com
