1996
PRELIMINARY DATA SHEET
HETERO JUNCTION FIELD EFFECT TRANSISTOR
NE1280 SERIES
K-BAND MEDIUM POWER AMPLIFIE
N-CHANNEL HJ-FET CHIPS
DESCRIPTION
The NE1280 series is medium power HJ-FET chips
which offer high output power and high gain for telecom
transmit power amplifier applications to 30 GHz.
NE1280100 is one cell die of 450
μ
m gate width,
offering 0.1 W output power. NE1280200 is two cells of
900
μ
m gate width, offering 0.2 W output power.
NE1280400 is four cells of 1.8
μ
m gate width, offering
0.4 W output power.
The devices incorporate WSi/Au gate to get high gain
and silicon nitride glassivation for superior scratch resistance
and mechanical protection.
Via hole source grounding result in superior RF
performance. To reduce the thermal resistance, the
devices have a PHS. (Plated Heat Sink)
NEC’s strigent quality assurance and test procedures
assure the highest reliability and performance.
FEATURES
Class A operation
High power output
High liniar gain
High reliability
Document No. P10977EJ1V0DS00 (1st edition)
Date Published June 1996 P
Printed in Japan

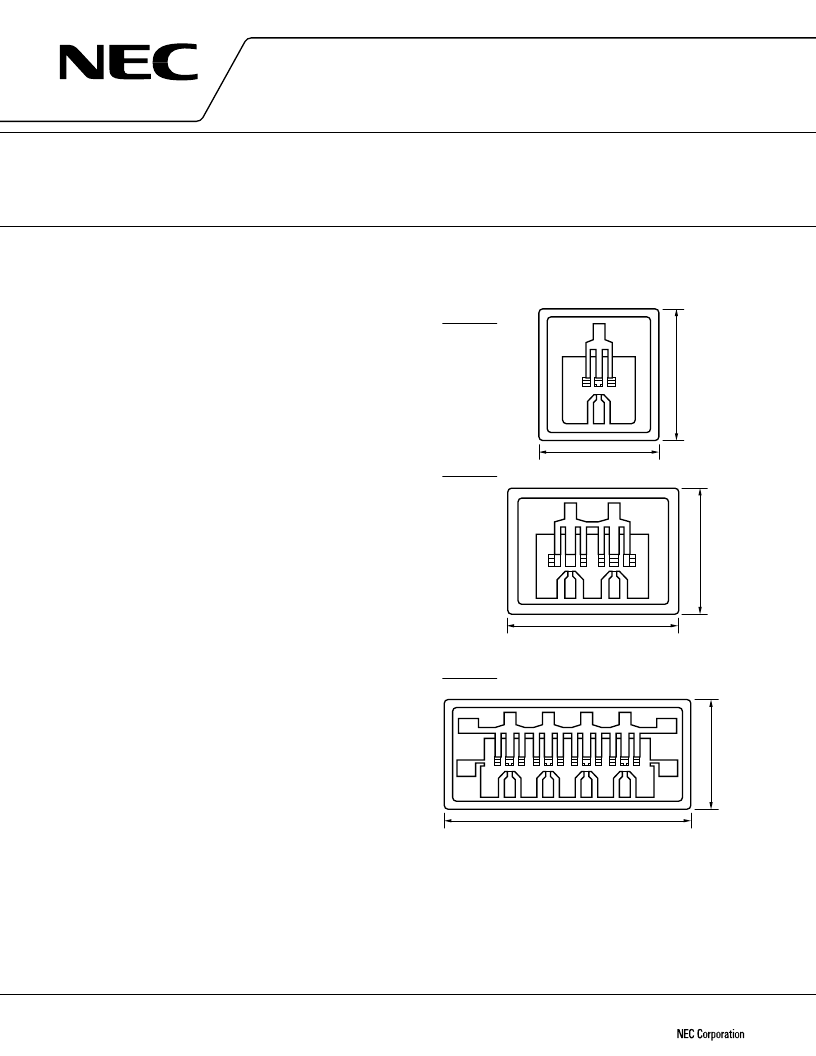

CHIP DIMENSIONS (unit:
μ
m)
460
500
NE1280100
460
NE1280200
510
NE1280400
460
980
