Semiconductor Components Industries, LLC, 2005
August, 2005
Rev. 5
1
Publication Order Number:
NIS6111/D

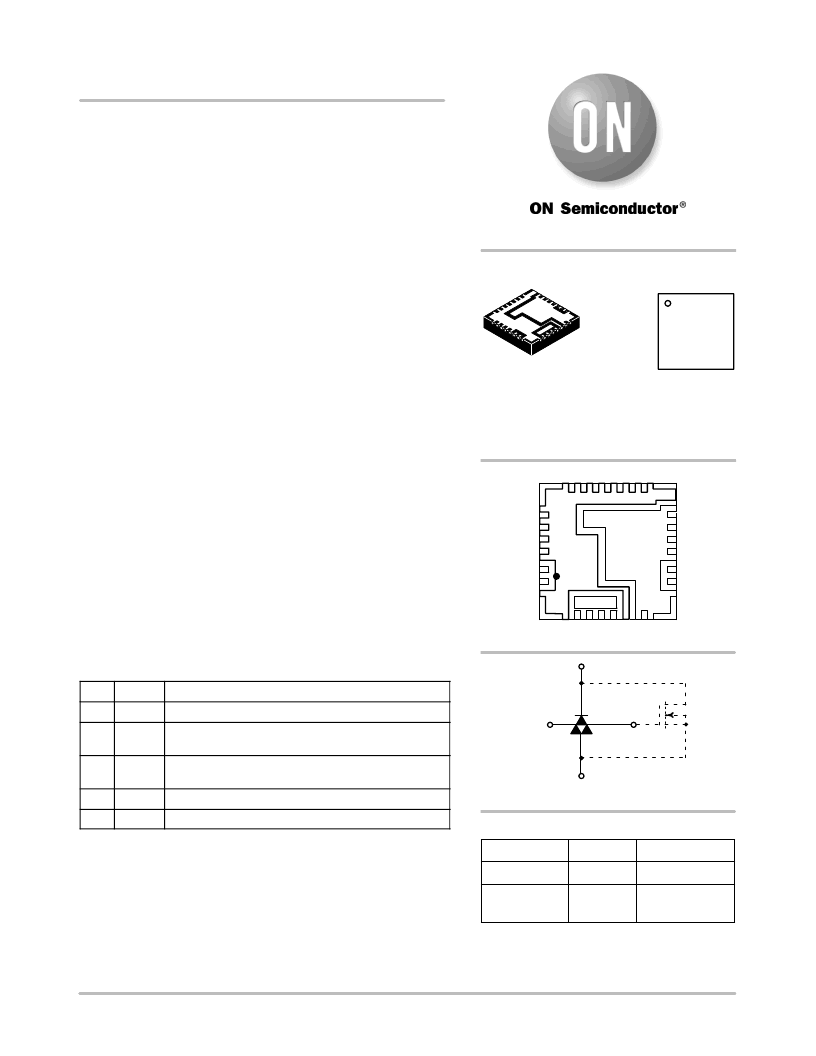

NIS6111
BERS IC (Better Efficiency
Rectifier System)
Ultra Efficient, High Speed Diode
The NIS6111 ORing diode is a high speed, high efficiency, hybrid
rectifier, designed for low voltage, high current systems, such as
those required for today’s digital circuits. It couples a high speed
integrated circuit with a power MOSFET to create a diode with the
same forward drop characteristics as a MOSFET. It offers increased
efficiency for switching power supplies as well as in ORing diode
applications.
It offers a low on resistance that can be further reduced by the
addition of external MOSFETs. It features the highest reverse
recovery speed of any device in the industry.
Features
Low Forward Drop Improves System Efficiency
Ultra High Speed
Can be used in High Side and Low Side Configurations
24 V Rating
Allows use of External MOSFETs for Extended Current Handling
Capacity
Pb
Free Package is Available*
Applications
Redundant Power Supplies for High
Availability Systems
Static ORing Diodes
Low Voltage, Isolated Outputs
Flyback, Forward Converter, Half Bridge Converters
PIN ASSIGNMENT
Pin
Symbol
Function
1
Anode
Power Input Connected to System
2
Bias
Output of Internal Voltage Regulator provides power for
internal only. No external components required at this pin.
3
Gate
Gate Driver Output for Internal and External
N
Channel MOSFET
4
Cathode
Power Output Connected to System
5
Reg In
Input of Internal Voltage Regulator
*For additional information on our Pb
Free strategy and soldering details, please
download the ON Semiconductor Soldering and Mounting Techniques Reference
Manual, SOLDERRM/D.
PLLP32
CASE 488AC
MARKING
DIAGRAM
NIS6111= Specific Device Code
A
= Assembly Location
WL
= Wafer Lot
YY
= Year
WW
= Work Week
G
= Pb
Free Package
1
NIS6111
AWLYYWWG
(Bottom View)
5
4
32
1
http://onsemi.com
Equivalent Circuit
Cathode
Reg In
Gate
Anode
NTD110N02R
4
3
5
1
Device
Package
Shipping
ORDERING INFORMATION
NIS6111QPT1
PLLP32
1500 Tape & Reel
For information on tape and reel specifications,
including part orientation and tape sizes, please
refer to our Tape and Reel Packaging Specification
Brochure, BRD8011/D.
NIS6111QPT1G
PLLP32
(Pb
Free)
1500 Tape & Reel
