參數資料
型號: NST489AMT1
廠商: ON SEMICONDUCTOR
元件分類: 小信號晶體管
英文描述: High Current Surface Mount NPN Silicon Low VCE(sat) Switching Transistor for Load Management in Portable Applications(大電流,表面安裝,NPN型,低VCE(sat)開關晶體管)
中文描述: 2000 mA, 30 V, NPN, Si, SMALL SIGNAL TRANSISTOR
封裝: CASE 318G-02, TSOP-6

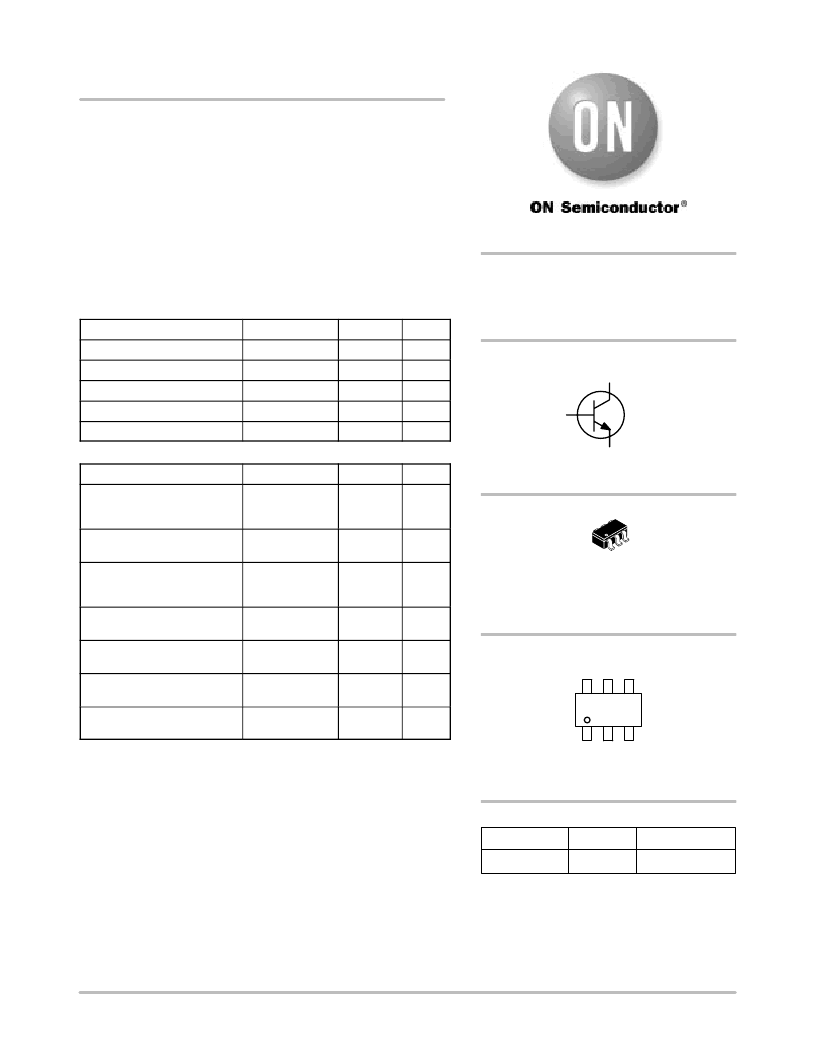

文件頁數: 1/6頁
文件大小: 58K
代理商: NST489AMT1
Semiconductor Components Industries, LLC, 2004
August, 2004 Rev. 4
1
Publication Order Number:
NST489AMT1/D
NST489AMT1
High Current Surface Mount
NPN Silicon Low V
CE(sat)
Switching Transistor for
Load Management in
Portable Applications
MAXIMUM RATINGS
(T
A
= 25
°
C)
Rating
Symbol
Max
Unit
Collector-Emitter Voltage
V
CEO
30
V
Collector-Base Voltage
V
CBO
50
V
Emitter-Base Voltage
V
EBO
5.0
V
Collector Current Continuous
I
C
2.0
A
Collector Current Peak
I
CM
3.0
A
THERMAL CHARACTERISTICS
Characteristic
Symbol
Max
Unit
Total Device Dissipation
T
= 25
°
C
Derate above 25
°
C
P
D
(Note 1)
535
4.3
mW
mW/
°
C
Thermal Resistance,
JunctiontoAmbient
R
JA
(Note 1)
234
°
C/W
Total Device Dissipation
T
A
= 25
°
C
Derate above 25
°
C
P
D
(Note 2)
1.180
9.4
W
mW/
°
C
Thermal Resistance,
JunctiontoAmbient
R
JA
(Note 2)
106
°
C/W
Thermal Resistance,
JunctiontoLead #1
R
JL
(Note 1)
R
JL
(Note 2)
110
50
°
C/W
°
C/W
Total Device Dissipation
(Single Pulse < 10 s)
P
(Notes 2 and 3)
1.75
W
Junction and Storage
Temperature Range
T
J
, T
stg
55 to
+150
°
C
Maximum ratings are those values beyond which device damage can occur.
Maximum ratings applied to the device are individual stress limit values (not
normal operating conditions) and are not valid simultaneously. If these limits are
exceeded, device functional operation is not implied, damage may occur and
reliability may be affected.
1. FR4 with 1 oz and 3.9 mm
2
of copper area.
2. FR4 with 1 oz and 645 mm
2
of copper area.
3. Refer to Figure 8.
Device
Package
Shipping
ORDERING INFORMATION
NST489AMT1
TSSOP6
CASE 318G
TSOP6
STYLE 6
3000/Tape & Reel
DEVICE MARKING
4
5
6
3
2
1
COLLECTOR
1, 2, 5, 6
3
BASE
4
EMITTER
30 VOLTS
3.0 AMPS
NPN TRANSISTOR
N2
d
N2 = Specific Device Code
d
= Date Code
For information on tape and reel specifications,
including part orientation and tape sizes, please
refer to our Tape and Reel Packaging Specifications
Brochure, BRD8011/D.
http://onsemi.com
