參數資料
| 型號： | PI6C2972FCE |
| 廠商： | Pericom |
| 文件頁數： | 1/7頁 |
| 文件大小： | 0K |
| 描述： | IC PLL CLOCK DRIVER 52-LQFP |
| 產品變化通告： | Product Discontinuation Notice 14/Jan/2008 |
| 標準包裝： | 160 |
| 類型： | PLL 時鐘驅動器 |
| PLL： | 帶旁路 |
| 輸入： | LVCMOS，LVTTL，晶體 |
| 輸出： | LVCMOS |
| 電路數： | 1 |
| 比率 - 輸入:輸出： | 3:12 |
| 差分 - 輸入:輸出： | 無/無 |
| 頻率 - 最大： | 125MHz |
| 除法器/乘法器： | 是/無 |
| 電源電壓： | 3.135 V ~ 3.465 V |
| 工作溫度： | 0°C ~ 70°C |
| 安裝類型： | 表面貼裝 |
| 封裝/外殼： | 52-LQFP |
| 供應商設備封裝： | 52-LQFP（10x10） |
| 包裝： | 托盤 |
1
PS8590C
09/22/04
12345678901234567890123456789012123456789012345678901234567890121234567890123456789012345678901212345678901234567890123456789012123456789012
PI6C2972
Description
The PI6C2972 are 3.3V compatible, PLL based clock driver devices
targeted for high-performance CISC or RISC processor based sys-
tems. With output frequencies of up to 125 MHz and skews of 550ps
the PI6C2972 are ideally suited for most synchronous systems. The
devices offer twelve low skew outputs plus a feedback and sync
output for added flexibility and ease of system implementation.
The PI6C2972 features an extensive level of frequency programma-
bility between the 12 outputs as well as the input vs output
relationships. Using the select lines output frequency ratios of 1:1,
2:1, 3:1, 3:2, 4:1, 4:3, 5:1, 5:2, 5:3, 6:1 and 6:5 between outputs can be
realized by pulsing low one clock edge prior to the coincident edges
of the Qa and Qc outputs. The Sync output will indicate when the
coincident rising edges of the above relationships will occur. The
Power–On Reset ensures proper programming if the frequency
select pins are set at power up. If the fselFB2 pin is held high, it may
be necessary to apply a reset after power–up to ensure synchroni-
zation between the QFB output and the other outputs. The internal
power–on reset is designed to provide this function, but with
power–up conditions being dependent, it is difficult to guarantee.
All other conditions of the fsel pins will automatically synchronize
during PLL lock acquisition.
The PI6C2972 offers a very flexible output enable/disable scheme.
Note that all of the control inputs on the PI6C2972 have internal pull–
up resistors.
The PI6C2972 is fully 3.3V compatible and requires no external loop
filter components. All inputs accept LVCMOS/LVTTL compatible
levels while the outputs provide LVCMOS levels with the capability
to drive 50-ohm transmission lines. For series terminated lines each
PI6C2972 output can drive two 50-ohm lines in parallel thus effec-
tively doubling the fanout of the device.
Features
Fully Integrated PLL
Output Frequency up to 125 MHz
Compatible with PowerPC and Pentium Microprocessors
3.3VVCC
+ 100ps Typical Cycle–to–Cycle Jitter
Packaging (Pb-free & Green available):
-52-pinLQFP(FC)

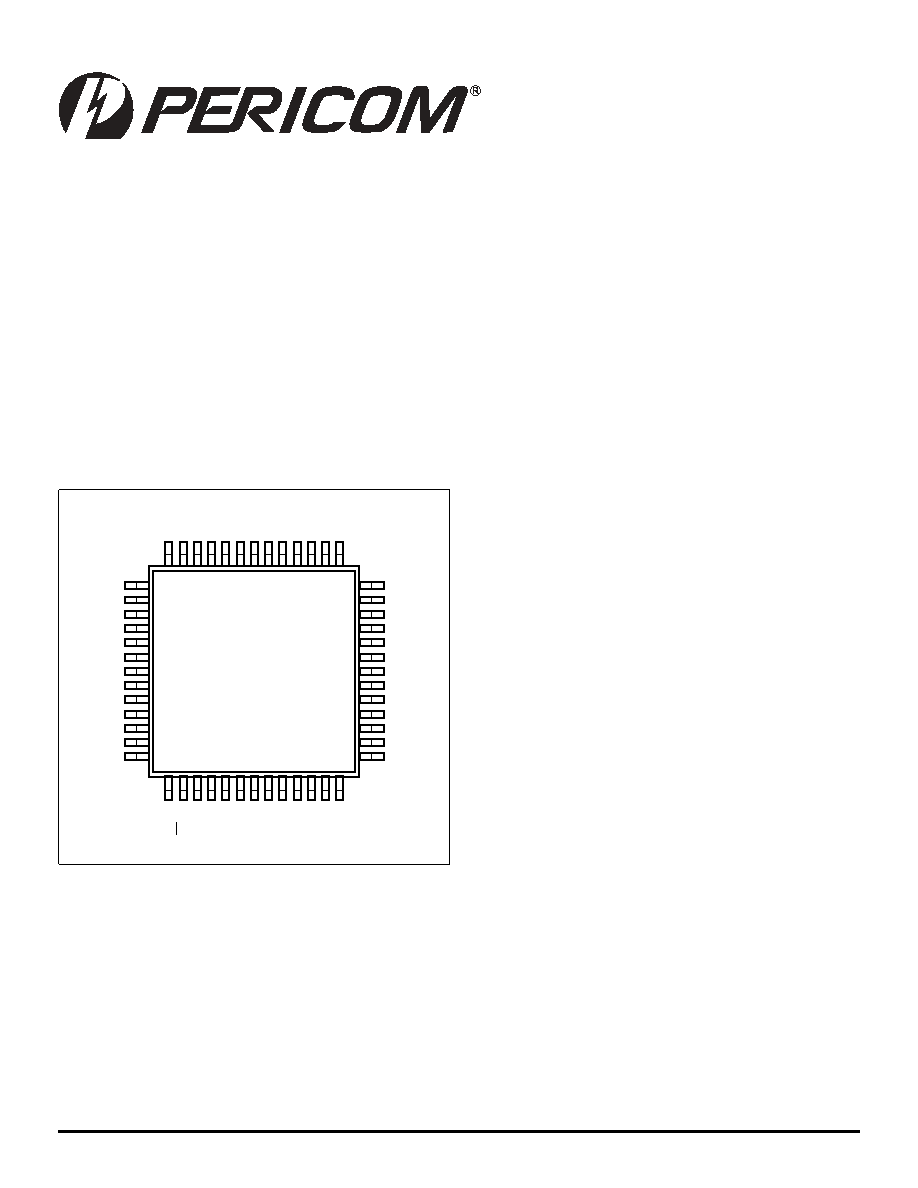

Low Voltage PLL Clock Driver
PinConfiguration
40
41
42
43
44
45
46
47
48
49
50
51
52
26
25
24
23
22
21
20
19
18
17
16
15
14
1
2
3
4
5
6
7
8
9 10 11 12 13
39 38 37 36 35 34 33 32 31 30 29 28 27
fselb1
fselb0
fsela1
fsela0
Qa3
VCCO
Qa2
GNDO
Qa1
VCCO
Qa0
GND0
VCO_Sel
fselFB1
QSync
GNDO
Qc0
VCCO
Qc1
fselc0
fselc1
Qc2
VCCO
Qc3
GND0
Inv_Clk
GNDO
Qb0
VCCO
Qb1
GND0
Qb2
VCCO
Qb3
Ext_FB
GNDO
QFB
VCCI
fselFB0
GND1
MR/OE
Frz_Clk
Frz_Data
fselFB2
PLL_EN
Ref_Sel
TClk_Sel
TClk0
TClk1
xtal1
xtal2
VCCA
