Small Optical Encoder Modules
Technical Data
Features
Small Size
Low Cost
Multiple Mounting Options
Wide Resolution Range
Linear and Rotary Options
Available
No Signal Adjustment
Required
Insensitive to Radial and
Axial Play
-40
°
C to +85
°
C Operating
Temperature
HEDS-9700 Series
Two Channel Quadrature
Output
TTL Compatible
Single 5V Supply
Wave Solderable
Description
The HEDS-9700 series is a high
performance, low cost, optical
incremental encoder module.
When operated in conjunction
with either a codewheel or
codestrip, this module detects
rotary or linear position. The

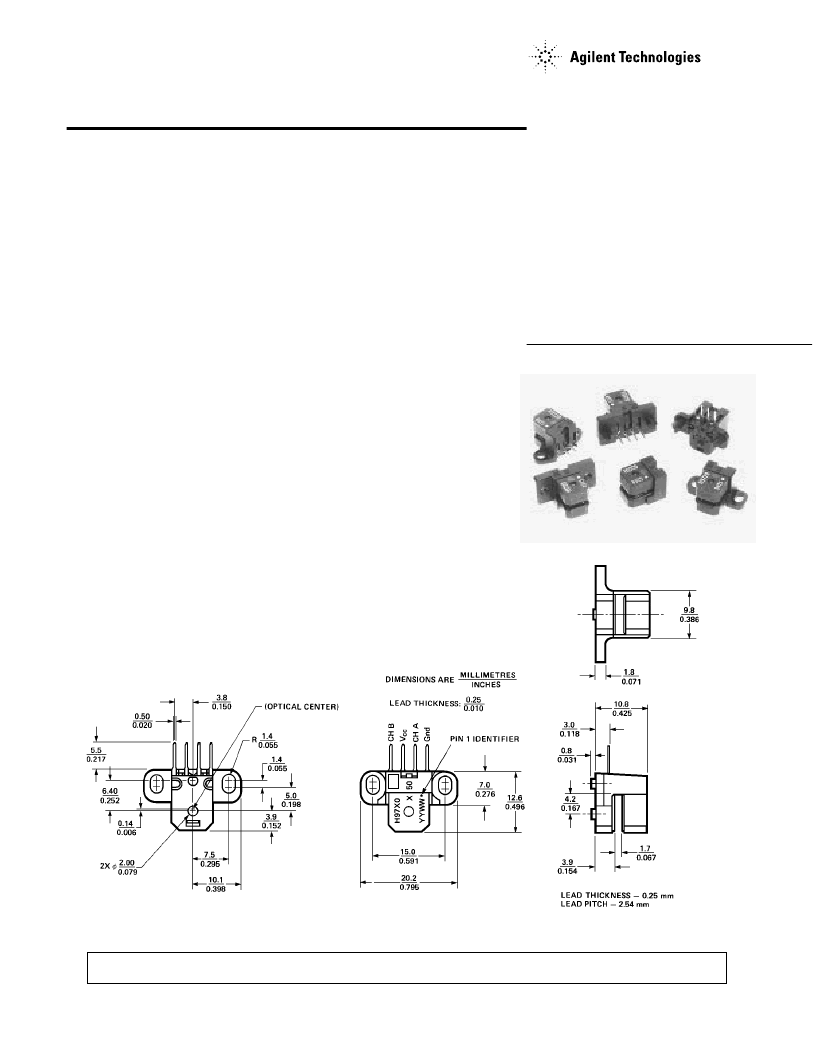

Package Dimensions
Mounting Option #50 - Standard (Baseplane Mounting)
Contact Factory for Detailed Package Dimensions
ESD WARNING; NORMAL HANDLING PRECAUTIONS SHOULD BE TAKEN TO AVOID STATIC DISCHARGE.
