8

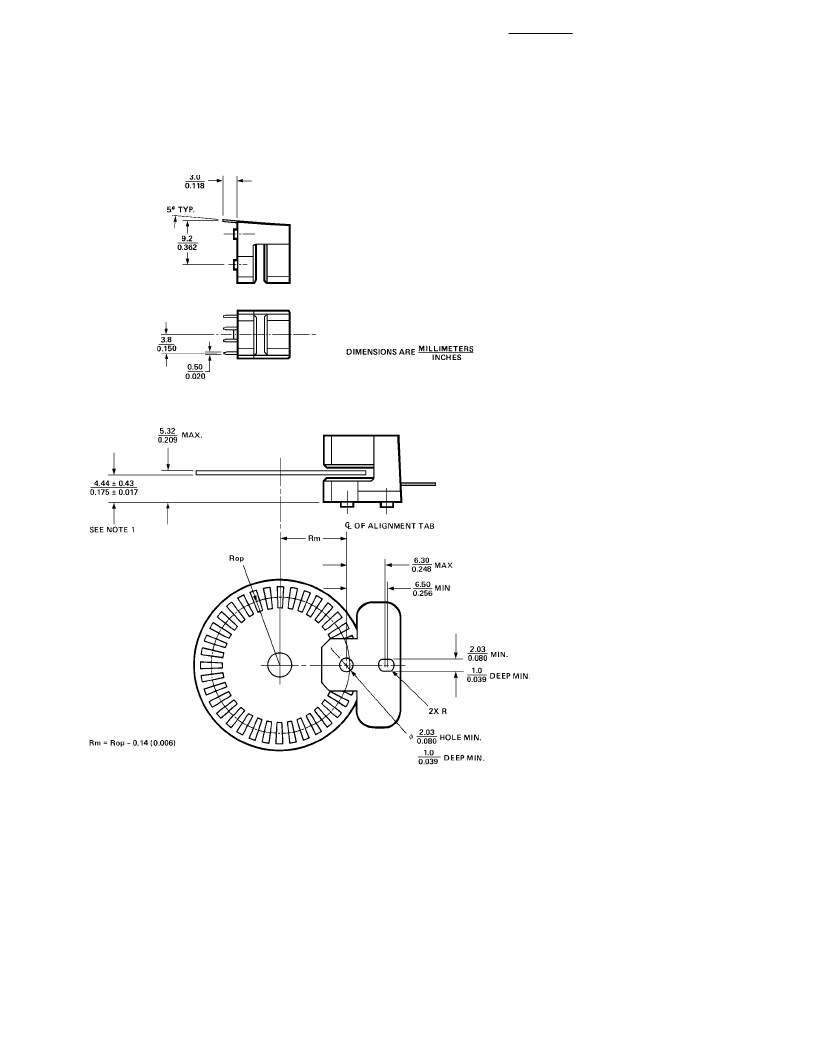

Bent Lead Option
Note:
These dimensions include shaft end play and codewheel warp.
All dimensions for mounting the module and codewheel/codestrip should be measured with respect to the two mounting posts, shown
above.
Mounting Tolerances
Case 1 and Case 2 specify the mounting tolerances required on Rm in order to achieve the respective
encoding characteristics shown on page 4. The mounting tolerances are as follows:
Case 1: Rm
±
0.13 mm (.005 inches)
Case 2: Rm
±
0.25 mm (.010 inches)
Recommended Screw Size:
M2.5 x 0.45 or 2-56
Mounting Considerations
