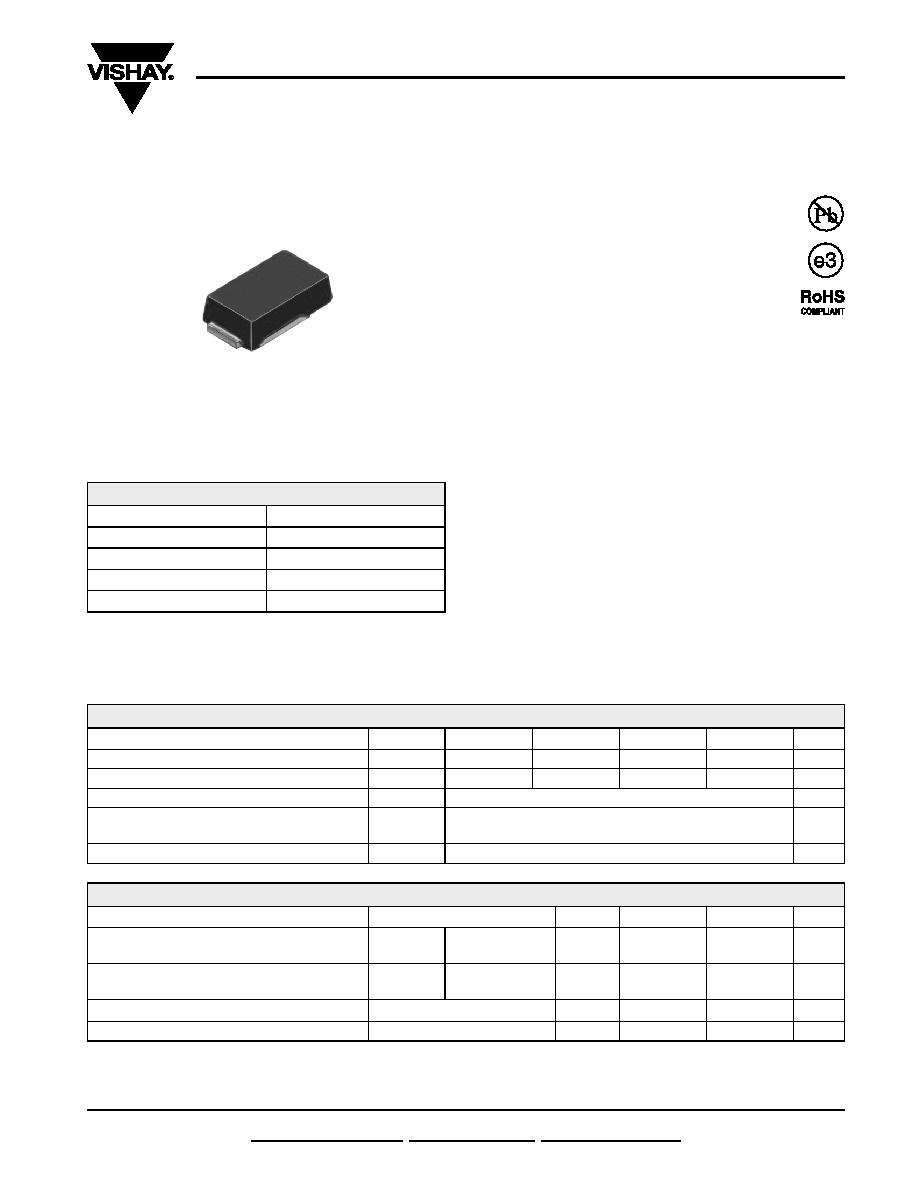

New Product
SE10PB thru SE10PJ
Vishay General Semiconductor
Document Number: 89024
Revision: 26-May-08
For technical questions within your region, please contact one of the following:
PDD-Americas@vishay.com, PDD-Asia@vishay.com, PDD-Europe@vishay.com
www.vishay.com
1
Surface Mount ESD Capability Rectifiers
FEATURES
Very low profile - typical height of 1.0 mm
Ideal for automated placement
Oxide planar chip junction
Low forward voltage drop
Typical IR less than 0.1 A
ESD capability
Meets MSL level 1, per J-STD-020, LF maximum
peak of 260 °C
Component in accordance to RoHS 2002/95/EC
and WEEE 2002/96/EC
TYPICAL APPLICATIONS
General purpose, polarity protection, and rail-to-rail
protection
in
both
consumer
and
automotive
applications.
MECHANICAL DATA
Case: DO-220AA (SMP)
Epoxy meets UL 94V-0 flammability rating
Terminals: Matte tin plated leads, solderable per
J-STD-002 and JESD22-B102
E3 suffix for consumer grade, meets JESD 201 class
1A whisker test
Polarity: Color band denotes the cathode end
PRIMARY CHARACTERISTICS
IF(AV)
1.0 A
VRRM
100 V to 600 V
IR
5 A
VF at IF = 1.0 A
0.86 V
TJ max.
175 °C
DO-220AA (SMP)
eSMPTM Series
Notes:
(1) Pulse test: 300 s pulse width, 1 % duty cycle
(2) Pulse test: Pulse width
≤ 40 ms
MAXIMUM RATINGS (TA = 25 °C, unless otherwise noted)
PARAMETER
SYMBOL
SE10PB
SE10PD
SE10PG
SE10PJ
UNIT
Device marking code
10B
10D
10G
10J
Maximum repetitive peak reverse voltage
VRRM
100
200
400
600
V
Average forward current (Fig. 1)
IF(AV)
1.0
A
Peak forward surge current 10 ms single half
sine-wave superimposed on rated load
IFSM
25
A
Operating junction and storage temperature range
TJ, TSTG
- 55 to + 175
°C
ELECTRICAL CHARACTERISTICS (TA = 25 °C, unless otherwise noted)
PARAMETER
TEST CONDITIONS
SYMBOL
TYP.
MAX.
UNIT
Maximum instantaneous forward voltage (1)
IF = 1.0 A,
TJ = 25 °C
TJ = 125 °C
VF
0.960
0.860
1.05
0.95
V
Maximum reverse current (2)
rated VR
TJ = 25 °C
TJ = 125 °C
IR
-
4.8
5.0
50
A
Typical reverse recovery time
IF = 0.5 A, IR = 1.0 A, Irr = 0.25 A
trr
780
-
Typical junction capacitance time
4.0 V, 1 MHz
CJ
7.0
-
pF
