參數資料
| 型號： | SL23EP04NZZC-1Z |
| 廠商： | SILICON LABORATORIES |
| 元件分類： | 時鐘及定時 |
| 英文描述： | 23EP SERIES, LOW SKEW CLOCK DRIVER, 4 TRUE OUTPUT(S), 0 INVERTED OUTPUT(S), PDSO8 |
| 封裝： | 4.40 MM, ROHS COMPLIANT, TSSOP-8 |
| 文件頁數： | 1/11頁 |
| 文件大小： | 175K |
| 代理商： | SL23EP04NZZC-1Z |
Rev 2.1, May 2, 2008
Page 1 of 11
2400 West Cesar Chavez, Austin, TX 78701
1+(512) 416-8500
1+(512) 416-9669
www.silabs.com
SL23EP04NZ
Key Features
DC to 220 MHz operating frequency range
Low output clock skew: 60ps-typ
Low part-to-part output skew: 80 ps-typ
3.3V to 2.5V operation supply voltage range
Low power dissipation:
- 10 mA-typ at 66MHz at VDD=3.3V
- 9 mA-typ at 66MHz at VDD=2.5V
One input to four output fanout buffer drivers
Output Enable (OE) control function
Available in 8-pin TSSOP package
Available in Commercial and Industrial grades
Available in Lead (Pb) free package
Applications
General Purpose PCI/PCI-X Clock Buffer
Printers, MFPs and Digital Copiers
PCs and Work Stations
Routers, Switchers and Servers
Datacom and Telecom
High-Speed Digital Embeded Systems
Description
The SL23EP04NZ is a low skew, jitter and power fanout
buffer designed to produce up to four (4) clock outputs
from one (1) reference input clock, for high speed clock
distribution, including PCI/PCI-X applications.
The SL23EP04NZ products operate from DC to 220MHz.
The only difference between SL23EP04-1 and
SL23EP04NZ-1Z is the OE logic implementation. Refer to
the Available OE Logic Configuration Table. 1
Benefits
Up to four (4) distribution of input clock
Low propagation delay
Low output-to-output skew
Low output jitter
Low power dissipation

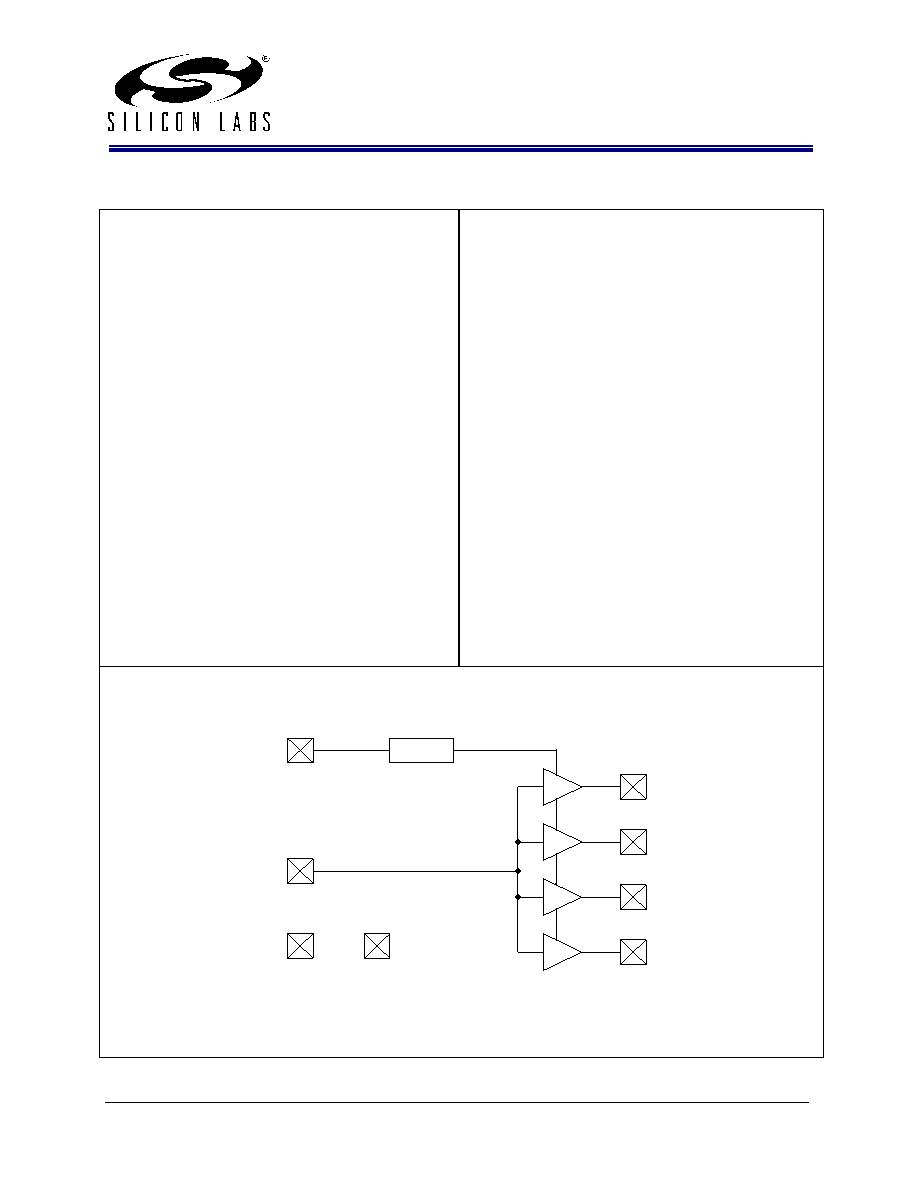

Block Diagram
Logic
Control
CLK1
CLK2
CLK3
CLK4
CLKIN
OE
GND
VDD
Low Jitter and Skew DC to 220 MHz Clock Buffer
