USA/Canada 1-800-278-5666
Asia +886-3-5821124
USA/Canada 1-847-359-8904
Asia +886-3-5821154
www.lumex.com
66

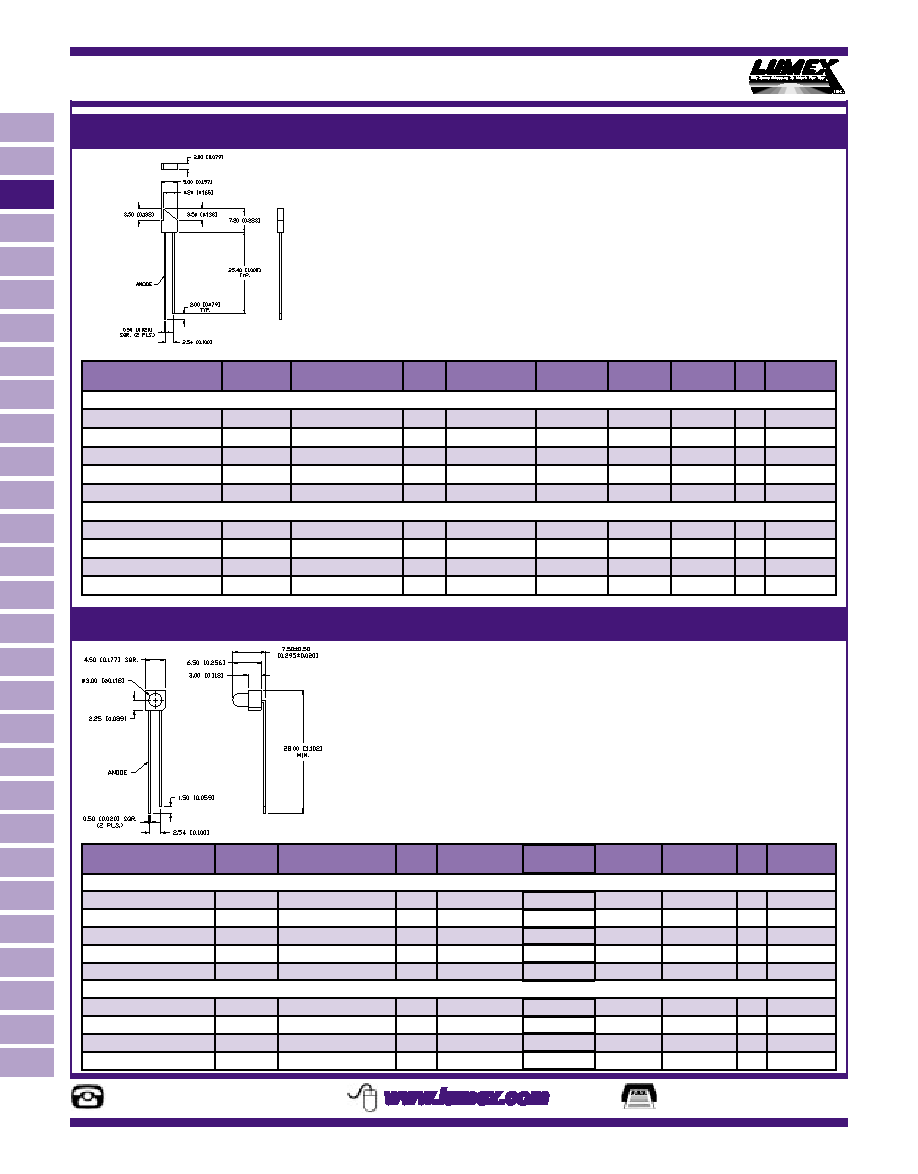

Discrete LEDs ~ Right Angle
SSF-EX2573 Series
2x5mm Angled LED, Special Side Cut
SSF-LX3P74-99 Series
T-3mm Right Angle Stove Pipe Lens
Lumex Part Number
Die Material
Emitted Color
Peak
(nm)
Lens
Operating
Current (mA)
Operating
TYP. Vf (V)
Brightness
TYP. Mcd
@
mA
View Angle°
2θ
HIGH BRIGHTNESS
SSF-EX2573SID
AlInGaP
Super High Intensity Red
636
Red Diffused
5-25
2
50
20
80
SSF-EX2573SOD
AlInGaP
Super Orange
610
Orange Diffused
5-25
2
50
20
80
SSF-EX2573SUGD
AlInGaP
Super Ultra Green
574
Green Diffused
5-25
2.2
30
20
80
SSF-EX2573USBD
InGaN/SiC
Ultra Super Blue
470
Blue Diffused
5-25
3.5
50
20
80
SSF-EX2573SYD
AlInGaP
Super Yellow
590
Yellow Diffused
5-25
2
45
20
80
STANDARD BRIGHTNESS
SSF-EX2573GD
GaP
Green
565
Green diffused
5-25
2.2
10
20
80
SSF-EX2573YD
GaAsP
Yellow
585
Yellow Diffused
5-25
2.1
10
20
80
SSF-EX2573SRD
GaAlAs
Super Red
660
Red Diffused
5-25
1.7
30
20
80
SSF-EX2573ID
GaAsP
High Intensity Red
635
Red Diffused
5-25
2.0
10
20
80
Lumex Part Number
Die Material
Emitted Color
Peak
(nm)
Lens
Operating
Current (mA)
Operating
TYP. Vf (V)
Brightness
TYP. Mcd
@
mA
View Angle°
2θ
HIGH BRIGHTNESS
SSF-LX3P74SID-99
AlInGaP
Super High Intensity Red
636
Red Diffused
5-25
2
200
20
60
SSF-LX3P74SOD-99
AlInGaP
Super Orange
610
Orange Diffused
5-25
2
200
20
60
SSF-LX3P74SUGD-99
AlInGaP
Super Ultra Green
574
Green Diffused
5-25
2.2
120
20
60
SSF-LX3P74USBD-99
InGaN/SiC
Ultra Super Blue
470
Blue Diffused
5-25
3.5
150
20
60
SSF-LX3P74SYD-99
AlInGaP
Super Yellow
590
Yellow Diffused
5-25
2
200
20
60
STANDARD BRIGHTNESS
SSF-LX3P74GD-99
GaP
Green
565
Green diffused
5-25
2.2
25
20
60
SSF-LX3P74YD-99
GaAsP
Yellow
585
Yellow Diffused
5-25
2.1
25
20
60
SSF-LX3P74SRD-99
GaAlAs
Super Red
660
Red Diffused
5-25
1.7
250
20
60
SSF-LX3P74ID-99
GaAsP
High Intensity Red
635
Red Diffused
5-25
2.0
40
20
60
APPLICATIONS / USES
Backlighting of Overlays and Graphics
Annunciator and Control Panels
Keyboards and Switches
Telecom Switches and Central Station Equipment
Fault, Circuit Status Indicator
FEATURES / OPTIONS
State-of-the-Art, High Brightness Chip Technology
Choice of Colors and Lens Finishes
Lead Frame / Lens Casting Reliability
Easy-to-Solder Leads, Tin Finish
Available Bulk or on Tape and Reel
Lead Trimming and FormingAvailable
RightAngle to PCB Light Emission
Blinking LED
With Internal Resistor for 5V and 12V Operation
Patent applied for
APPLICATIONS / USES
Backlighting of Overlays and Graphics
Annunciator and Control Panels
Keyboards and Switches
Telecom Switches and Central Station Equipment
Fault, Circuit Status Indicator
FEATURES / OPTIONS
State-of-the-Art, High Brightness Chip Technology
Choice of Colors and Lens Finishes
Lead Frame / Lens Casting Reliability
Easy-to-Solder Leads, Tin Finish
Available Bulk or on Tape and Reel
Lead Trimming and FormingAvailable
RightAngle to PCB Light Emission
Blinking LED
With Internal Resistor for 5V and 12V Operation
