參數資料
| 型號： | TLE4966K |
| 廠商： | INFINEON TECHNOLOGIES AG |
| 元件分類： | 模擬信號調理 |
| 英文描述： | MAGNETIC SENSOR, PDSO6 |
| 封裝： | GREEN, PLASTIC, TSOP-6 |
| 文件頁數： | 12/16頁 |
| 文件大小： | 865K |
| 代理商： | TLE4966K |

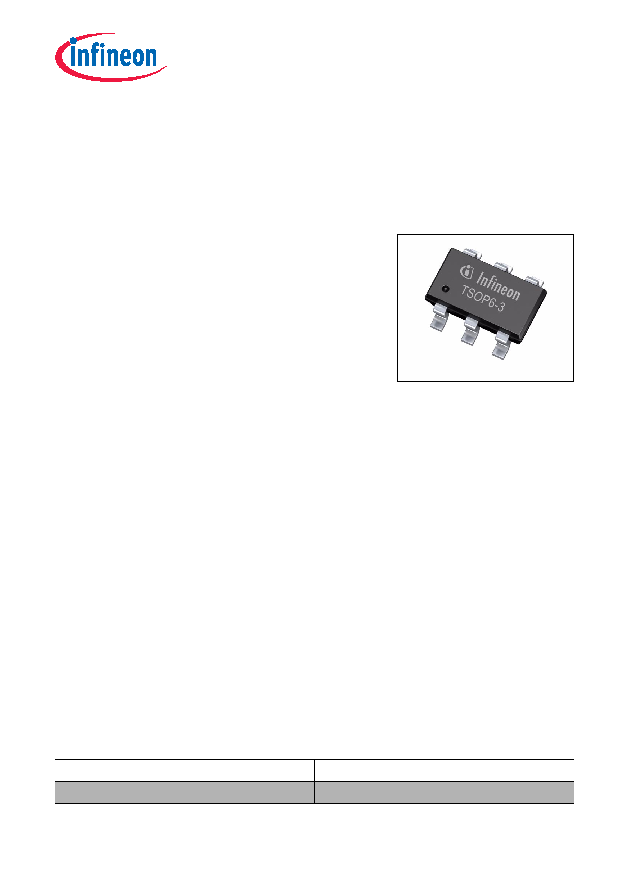

Type
Package
TLE4966K
PG-TSOP6-6-5
High Precision Hall-Effect Switch with Direction
Detection
TLE4966K
Data Sheet
5
Rev. 1.0, 2007-09
1Overview
1.1
Features
2.7 V to 24 V supply voltage operation
Operation from unregulated power supply
High sensitivity and high stability
of the magnetic switching points
High resistance to mechanical stress
by Active Error Compensation
Reverse battery protection (-18 V)
Superior temperature stability
Peak temperatures up to 195°C without damage
Low jitter (typ. 1
s)
Digital output signals
Bipolar version
Excellent matching between the 2 Hall probes
Hall plate distance 1.45 mm
Direction & speed information
Direction signal switches before the speed signal
SMD package PG-TSOP6-6-5
1.2
Functional Description
The TLE4966K is an integrated circuit double Hall-effect sensor designed specifically for
highly accurate applications. Precise magnetic switching points and high temperature
stability are achieved by active compensation circuits and chopper techniques on chip.
They provide a speed signal at Q2 for every magnetic pole pair and a direction
information at Q1, which is provided before the speed signal.
