www.ti.com
RL
C(C)
VO(PP)
VDD
3 dB
fc
Single-Ended Operation
BTL AMPLIFIER EFFICIENCY
V(LRMS)
VO
IDD
IDD(avg)
TPA0132
SLOS223E – MAY 1999 – REVISED SEPTEMBER 2004

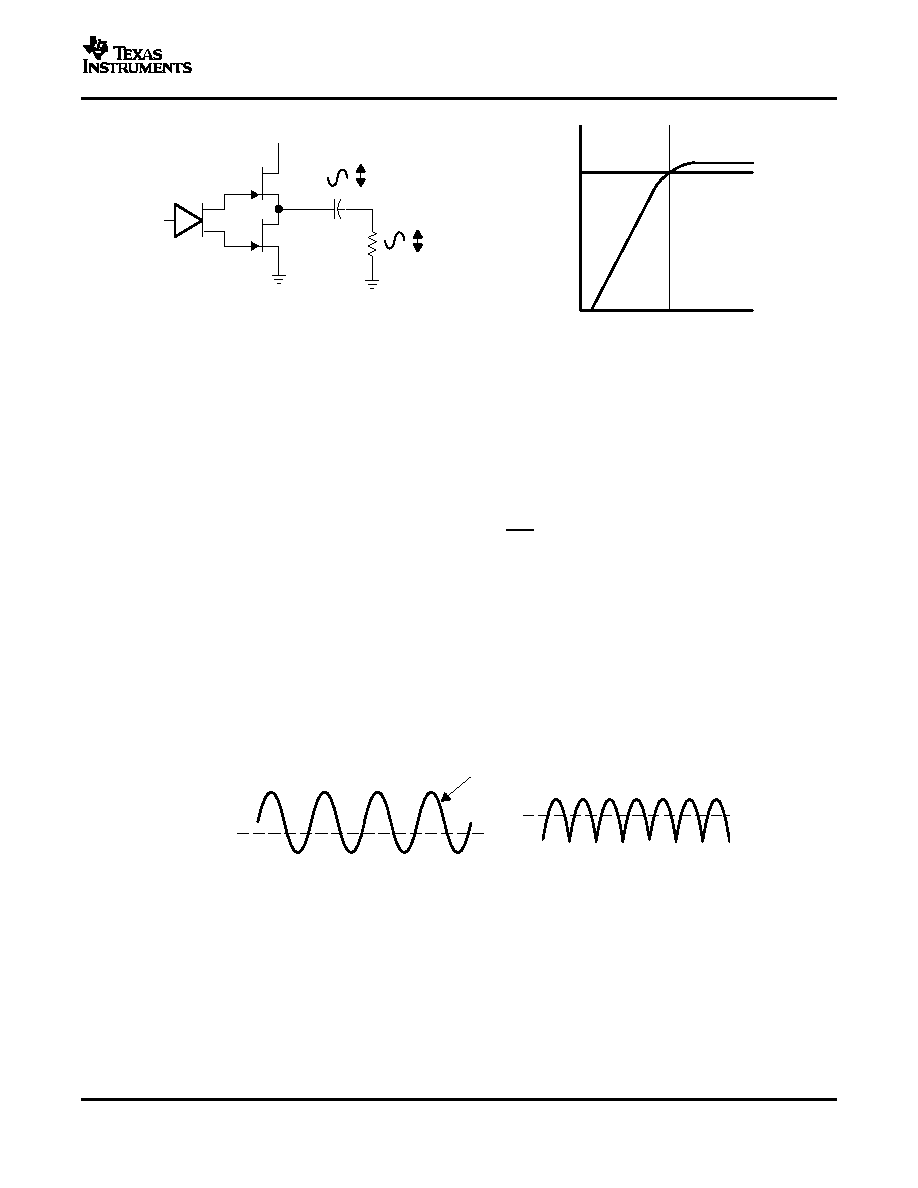

Figure 35. Single-Ended Configuration and Frequency Response
Increasing power to the load does carry a penalty of increased internal power dissipation. The increased
dissipation is understandable, since the BTL configuration produces 4
× the output power of the SE configuration.
Internal dissipation versus output power is discussed further in the Crest Factor and Thermal Considerations
section.
In SE mode (see Figure 35), the load is driven from the primary amplifier output for each channel (LOUT+ and
ROUT+).
The amplifier switches to single-ended operation when the SE/BTL terminal is held high. This puts the negative
outputs in a high-impedance state, and reduces the amplifier's gain by 6 dB.
Class-AB amplifiers are inefficient, primarily because of voltage drop across the output-stage transistors. The two
components of the internal voltage drop are the headroom or dc voltage drop that varies inversely to output
power, and the sine wave nature of the output. The total voltage drop can be calculated by subtracting the RMS
value of the output voltage from VDD. The internal voltage drop multiplied by the RMS value of the supply current
(IDDrms) determines the internal power dissipation of the amplifier.
An easy-to-use equation to calculate efficiency begins as the ratio of power from the power supply to the power
delivered to the load. To accurately calculate the RMS and average values of power in the load and in the
amplifier, the current and voltage waveforms must be understood (see Figure 36).
Figure 36. Voltage and Current Waveforms for BTL Amplifiers
Although the voltages and currents for SE and BTL are sinusoidal in the load, currents from the supply are very
different between SE and BTL configurations. In an SE application, the current waveform is a half-wave rectified
shape, whereas in BTL it is a full-wave rectified waveform. Therefore, RMS conversion factors are different. Keep
in mind that for most of the waveform both the push and pull transistors are not on at the same time, which
supports the fact that each amplifier in the BTL device only draws current from the supply for half the waveform.
Equation 7 and Equation 8 are the basis for calculating amplifier efficiency.
21
