SLOS666 – MAY 2010
www.ti.com

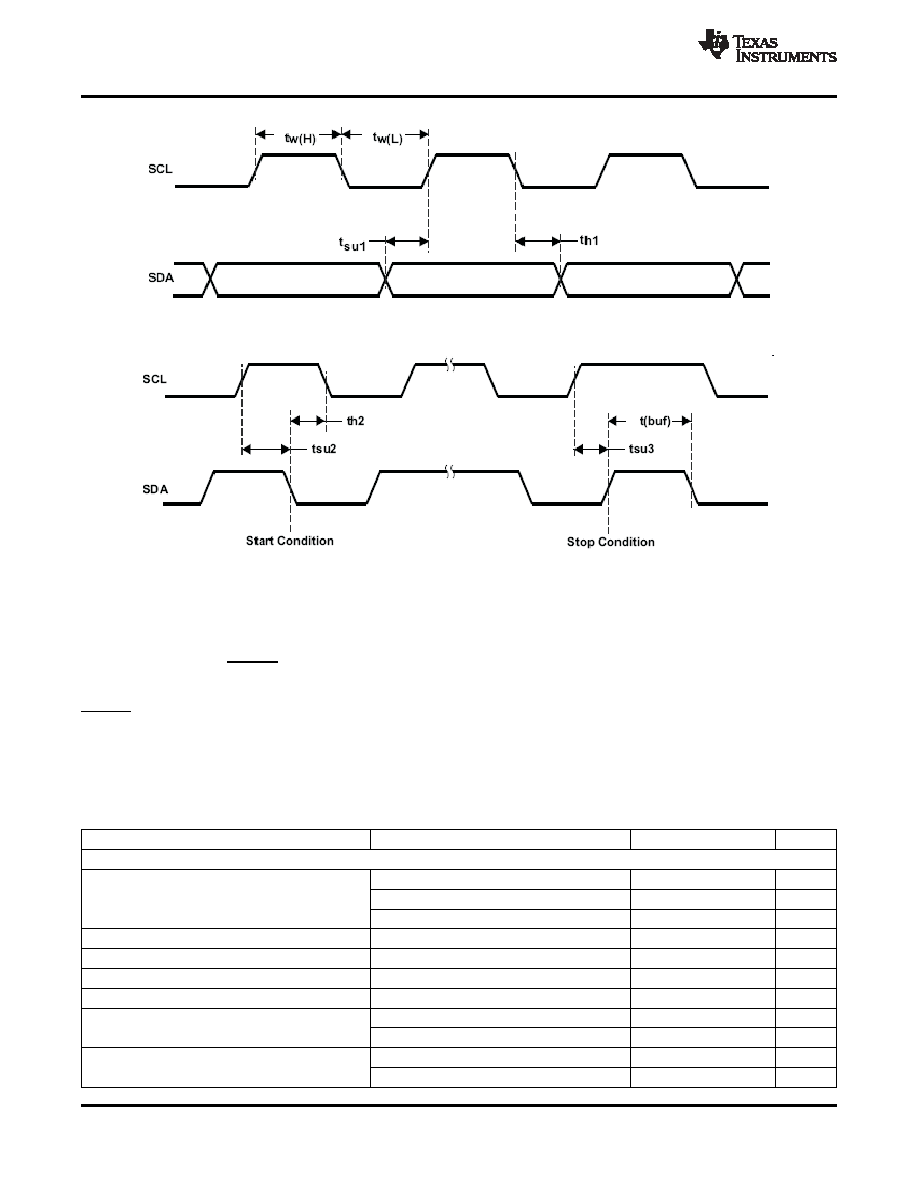

Figure 3. SCL and SDA Timing
Figure 4. Start and Stop Conditions Timing
DEVICE RESET
Apply logic low to the RESET pin to deactivate the TPA2054D4A and return all I2C registers to their default state.
This clears the LIM_Lock bit to logic low, allowing changes to the headphone output limiter byte. Refer to the
Register Map section for a complete list of default states. The I2C registers cannot be programmed until
RESETreturns to logic high. The TPA2054D4A activates in soft shutdown mode, SWS bit at logic high.
OPERATING CHARACTERISTICS
VDD = 3.6 V, TA = 25°C, RSPEAKER = 8 + 33 mH, RHEADPHONES = 16 , Total HP Gain = 6 dB, Total Class-D Gain = 6 dB,
MODE[2:0] = 001 (single-ended mode)(unless otherwise noted)
PARAMETER
TEST CONDITIONS
MIN
TYP
MAX
UNIT
POWER AMPLIFIER
THD = 1%, VDD = 3.6 V, f = 1 kHz
700
mW
PO
Speaker output power
THD = 10%, VDD = 3.6 V, f = 1 kHz
860
mW
THD = 1%, VDD = 4.2 V, f = 1 kHz
940
mW
VOS
Offset Voltage
VDD = 5.5 V
–13
5
13
mV
Output impedance in shutdown
2
k
SNR
Signal-to-noise ratio
PO = 250 mW;
90
dB
En
Noise output voltage
Total gain = 0 dB; A-weighted
22
mVRMS
VDD = 5.0 V, PO = 1 W, f = 1 kHz
0.18
%
THD+N
Total harmonic distortion plus noise
VDD = 3.6 V, PO = 0.6 W, f = 1 kHz
0.25
%
200 mVpp ripple, f = 217 Hz, Total gain = 0 dB
-75
dB
kSVR
AC-Power supply rejection ratio
200 mVpp ripple, f = 4 kHz, Total gain = 0 dB
-70
dB
6
Copyright 2010, Texas Instruments Incorporated
Product Folder Link(s): TPA2054D4A
