EFFICIENCY AND THERMAL INFORMATION
JA
1
=
= 111 C/W
Derating Factor
0.009
q
°
(3)
A
J
JA DMAX
T Max = T Max
θ
P
= 150
111(0.12) = 137 C
-
°
(4)
OPERATION WITH DACS AND CODECS
FILTER FREE OPERATION AND FERRITE BEAD FILTERS
Ferrite
ChipBead
Ferrite
ChipBead
1nF
OUTP
OUTN
www.ti.com ..................................................................................................................................................................................................... SLOS607 – APRIL 2009
The maximum ambient temperature depends on the heat-sinking ability of the PCB system. The derating factor
for the packages are shown in the dissipation rating table. Converting this to
θ
JA for the WCSP package:
Given
θ
JA of 111°C/W, the maximum allowable junction temperature of 150°C, and the maximum internal
dissipation of 0.12 W (0.06 W per channel) for 1.4 W per channel, 8-
load, 5-V supply, from Figure 25 , the
maximum ambient temperature can be calculated with the following equation:
Equation 4 shows that the calculated maximum ambient temperature is 137°C at maximum power dissipation
with a 5-V supply and 8-
a load. The TPA2054D4 is designed with thermal protection that turns the device off
when the junction temperature surpasses 150°C to prevent damage to the IC. Also, using speakers more
resistive than 8-
dramatically increases the thermal performance by reducing the output current and increasing
the efficiency of the amplifier.
In using Class-D amplifiers with CODECs and DACs, sometimes there is an increase in the output noise floor
from the audio amplifier. This occurs when mixing of the output frequencies of the CODEC/DAC mix with the
switching frequencies of the audio amplifier input stage. The noise increase can be solved by placing a low-pass
filter between the CODEC/DAC and audio amplifier. This filters off the high frequencies that cause the problem
and allow proper performance. See the functional block diagram.
A ferrite bead filter can often be used if the design is failing radiated emissions without an LC filter and the
frequency sensitive circuit is greater than 1 MHz. This filter functions well for circuits that just have to pass FCC
and CE because FCC and CE only test radiated emissions greater than 30 MHz. When choosing a ferrite bead,
choose one with high impedance at high frequencies, and low impedance at low frequencies. In addition, select a
ferrite bead with adequate current rating to prevent distortion of the output signal.
Use an LC output filter if there are low frequency (< 1 MHz) EMI sensitive circuits and/or there are long leads
from amplifier to speaker. Figure 49 shows typical ferrite bead and LC output filters.

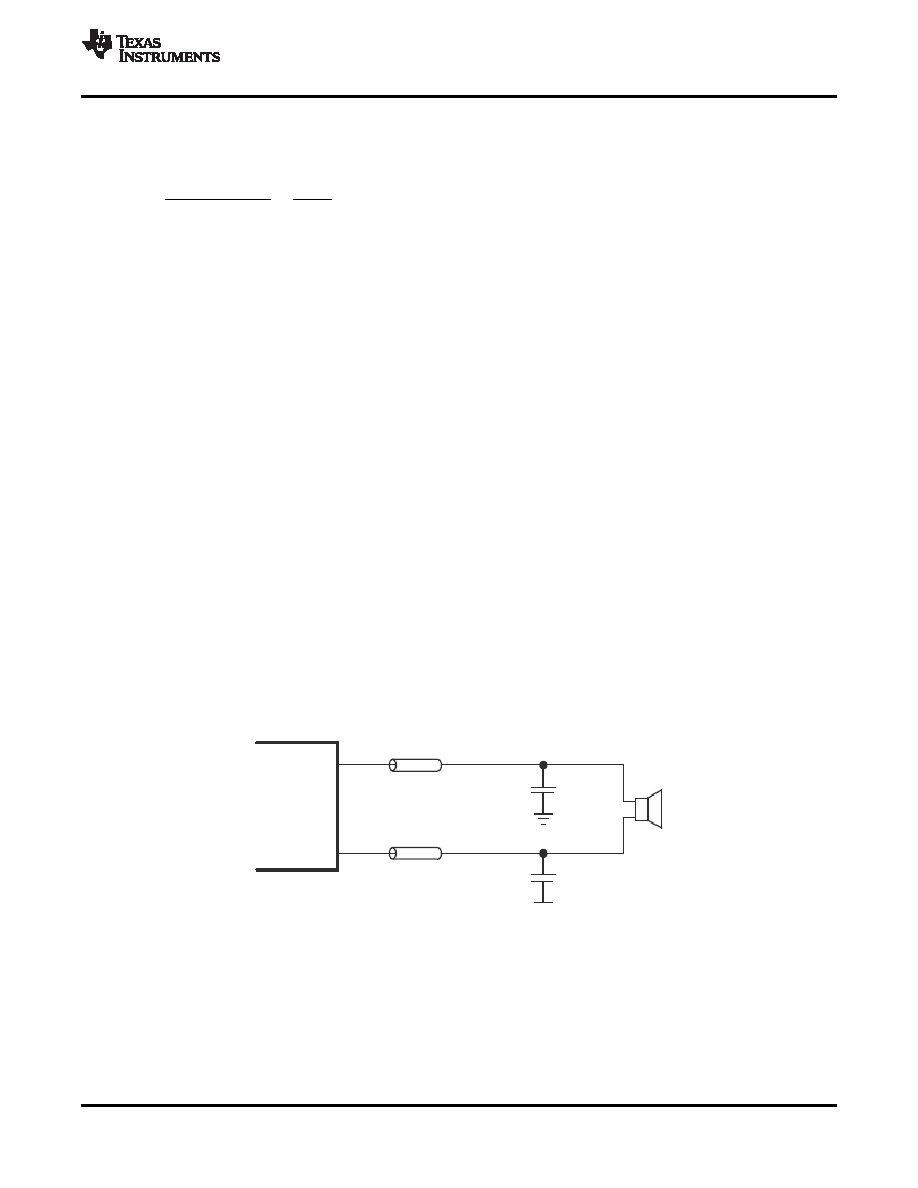

Figure 49. Typical Ferrite Bead Filter (Chip bead example: TDK: MPZ1608S221A)
Copyright 2009, Texas Instruments Incorporated
23
Product Folder Link(s): TPA2054D4
