Application Circuits
Design Procedure
www.ti.com ....................................................................................................................................................................................................... SLVS935 – JULY 2009

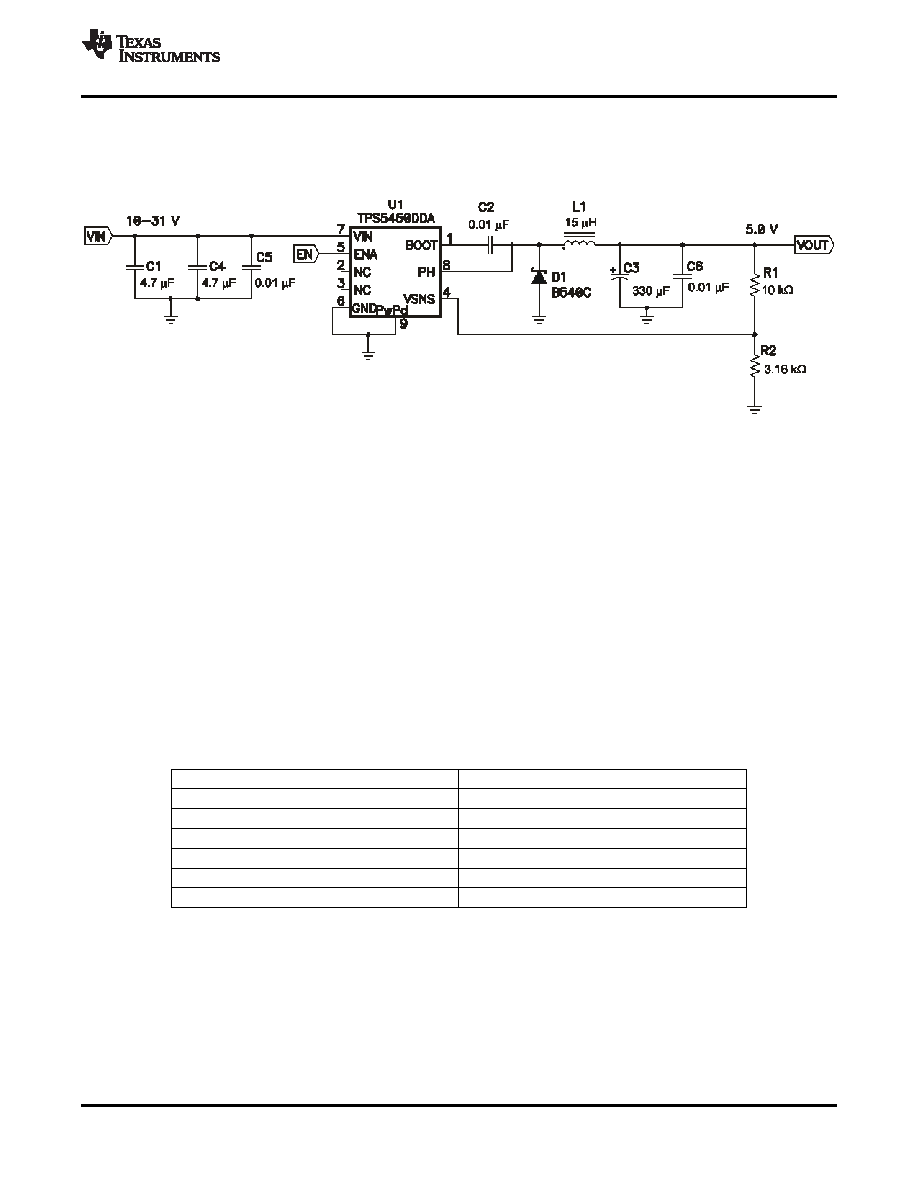

Figure 11 shows the schematic for a typical TPS5450 application. The TPS5450 can provide up to 5-A output
current at a nominal output voltage of 5 V. For proper thermal performance, the exposed PowerPAD
underneath the device must be soldered down to the printed-circuit board.
Figure 11. Application Circuit, 12-V to 5.0-V
The following design procedure can be used to select component values for the TPS5450. Alternately, the
SWIFT Designer Software may be used to generate a complete design. The SWIFT Designer Software uses
an iterative design procedure and accesses a comprehensive database of components when generating a
design. This section presents a simplified discussion of the design process.
To begin the design process a few parameters must be decided upon. The designer needs to know the following:
Input voltage range
Output voltage
Input ripple voltage
Output ripple voltage
Output current rating
Operating frequency
Design Parameters
For this design example, use the following as the input parameters:
DESIGN PARAMETER(1)
EXAMPLE VALUE
Input voltage range
10 V to 31 V
Output voltage
5 V
Input ripple voltage
400 mV
Output ripple voltage
30 mV
Output current rating
5 A
Operating frequency
500 kHz
(1)
As an additional constraint, the design is set up to be small size and low component height.
Copyright 2009, Texas Instruments Incorporated
11
Product Folder Link(s): TPS5450-EP
