2
TS83102G0BMGS
5360AS–BDC–08/04

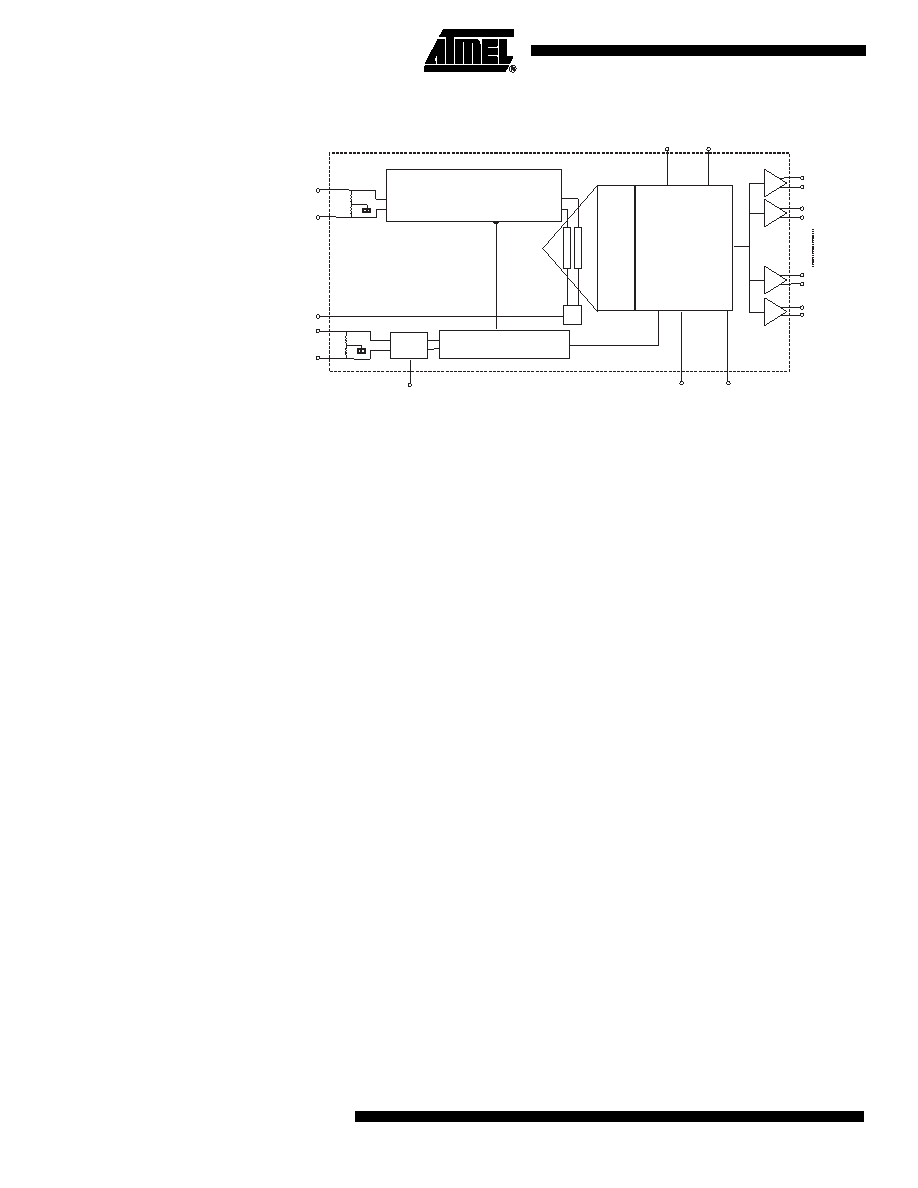

Figure 1. Simplified Block Diagram
Functional Description
The TS83102G0BMGS is a 10-bit 2 Gsps ADC. The device includes a front-end master/slave
Track and Hold stage (Sample and Hold), followed by an analog encoding stage (Analog
Quantizer), which outputs analog residues resulting from analog quantization. Successive
banks of latches regenerate the analog residues into logical levels before entering an error
correction circuit and resynchronization stage, followed by 50
differential output buffers.
The TS83102G0BMGS works in a fully differential mode from analog inputs to digital outputs.
A differential Data Ready output (DR/DRB) is available to indicate when the outputs are valid
and an Asynchronous Data Ready Reset ensures that the first digitized data corresponds to
the first acquisition.
The control pin B/GB (A11 of the CI-CGA package) is provided to select either a binary or gray
data output format. The gain control pin GA (R9 of the CI-CGA package) is provided to adjust
the ADC gain transfer function.
A Sampling Delay Adjust function (SDA) may be used to ease the interleaving of ADCs.
A pattern generator is integrated on the chip for debug or acquisition setup. This function is
activated through the PGEB pin (A9 of the CI-CGA package).
An Out-of-range bit (OR/ORB) indicates when the input overrides 0.5 Vpp.
A selectable decimation by 32 functions is also available for enhanced testability coverage
(A10 of the CI-CGA package), along with the die junction temperature monitoring function.
The TS83102G0BMGS uses only vertical isolated NPN transistors together with oxide isolated
polysilicon resistors, which provides enhanced radiation tolerance (over 100 kRad (Si) total
dose expected tolerance).
Sample &Hold
Clock generation
Logic block
Analog
Q
uant
izer
VIN
VINB
CLK
CLKB
PGEB
B/GB
DRRB
OR
ORB
D9
D9B
D0
D0B
GA
DR
DRB
50
SDA
DECB/
DIODE
