1999 Feb 17
6
Philips Semiconductors
Product specification
Cordless telephone, answering machine
line interface
UBA1707
FUNCTIONAL DESCRIPTION
All data given in this chapter are typical values, except
when otherwise specified.
Supply (pins V
CC
and GND; bits PD and LSPD)
The UBA1707 must be supplied with an external stabilized
voltage source between pins V
CC
and GND.
Pins GND and LSPGND must be connected together.
Without any signal, with the loudspeaker channel enabled
at minimum volume and without any general purpose
switch selected, the internal current consumption is
2.2 mA at V
CC
= 3.3 V. Each selected switch
(pins SWI1, SWI2, or SWI3) increases the current
consumption by 600
μ
A.
The supply current can be reduced when the loudspeaker
channel is not used by switching it off (bit LSPD at logic 1).
The current consumption is then decreased by
approximately 800
μ
A at minimum volume.
To drastically reduce current consumption, the UBA1707
is provided with a power-down mode controlled by bit PD.
When bit PD is at logic 1, the current consumption from
V
CC
becomes 110
μ
A. In this mode, the serial interface is
the only function which remains active.
Line interface
DC
CHARACTERISTICS
(
PINS
LN, SLPE, REG, CST, LVI,
LCC, RGL
AND
GND;
BIT
CRC)
The IC generates a stabilized reference voltage (V
ref
)
between pins LN and SLPE. This reference voltage is
equal to 2.9 V, is temperature compensated and can be
adjusted by means of an external resistor (R
VA
). It can be
increased by connecting the R
VA
resistor between
pins REG and SLPE (see Fig.3).
The voltage at pin REG is used by the internal regulator to
generate the stabilized reference voltage and is decoupled
by a capacitor (C
REG
) which is connected to GND. This
capacitor, converted into an equivalent inductance
(see Section “Set impedance”) realizes the set impedance
conversion from its DC value (R
SLPE
) to its AC value
(Z
SET
in the audio-frequency range). Figure 4 illustrates
the reference voltage supply configuration. As can be seen
from Fig.4, part of the line current flows into the Z
SET
impedance network and is not sensed by the UBA1707.
Therefore using the R
VA
resistor to change value of the
reference voltage will also modify all parameters related to
the line current such as:
The automatic gain control
The DC mask management
The low voltage area characteristics.
In the same way, changing the value of Z
SET
also affects
the characteristics. The IC has been optimized for
V
ref
= 2.9 V and Z
SET
= 619
.
The IC regulates the line voltage at pin LN which can be
calculated as follows:
Where:
I
line
= line current
I
ZSET
= current flowing through Z
SET
I* = current consumed between LN and GND
(approximately 100
μ
A).
The preferred value for R
SLPE
is 10
. Changing R
SLPE
will
affect more than the DC characteristics; it also influences
the transmit gain, the gain control characteristics, the
sidetone level and the maximum output swing on the line.
However, for compliance with CTR 21 8.66
is the best
value for R
SLPE
.

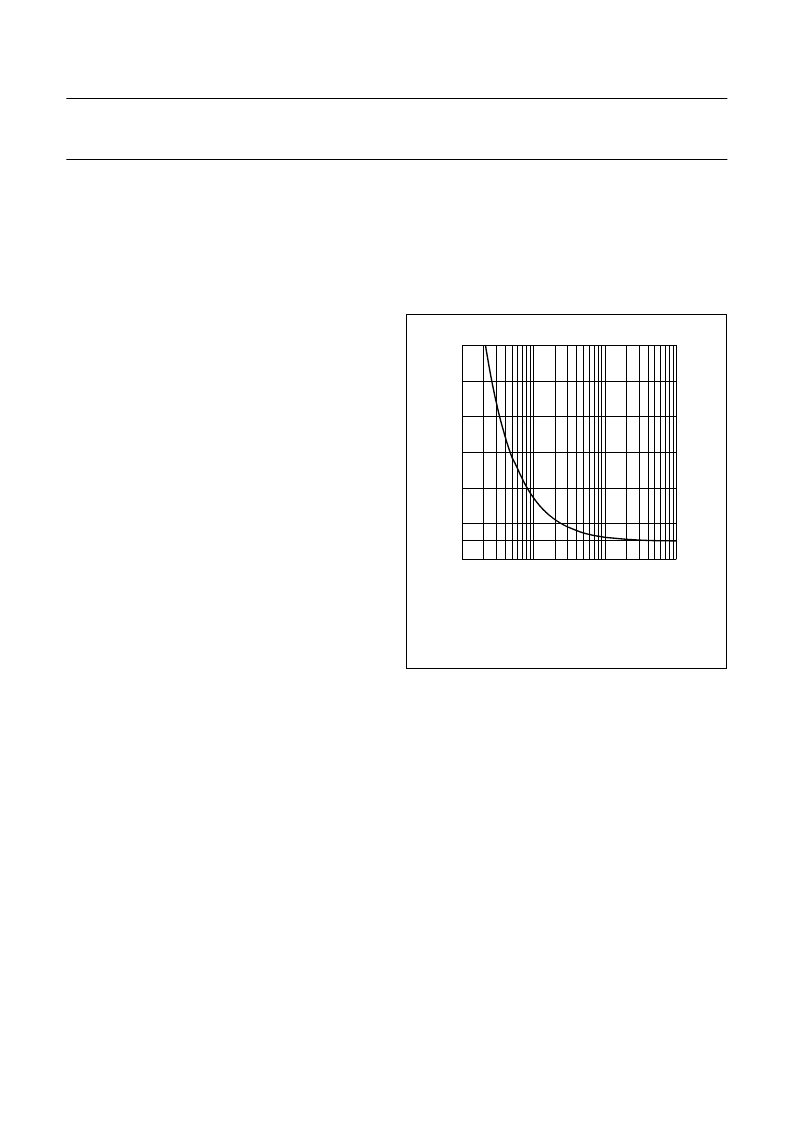

Fig.3 Reference voltage adjustment with R
VA
.
(1) Influence of R
VA
on V
ref
.
(2) V
ref
without influence of R
VA
.
handbook, halfpage
(V)
2.5
(1)
(2)
10
5
10
4
10
3
10
6
MGK706
3.5
4.5
6.5
5.5
7.5
RVA (
)
V
LN
I
SLPE
V
ref
I
line
=
R
SLPE
I
ZSET
–
I
SLPE
I*
×
+
=
I
line
I
ZSET
–
–
