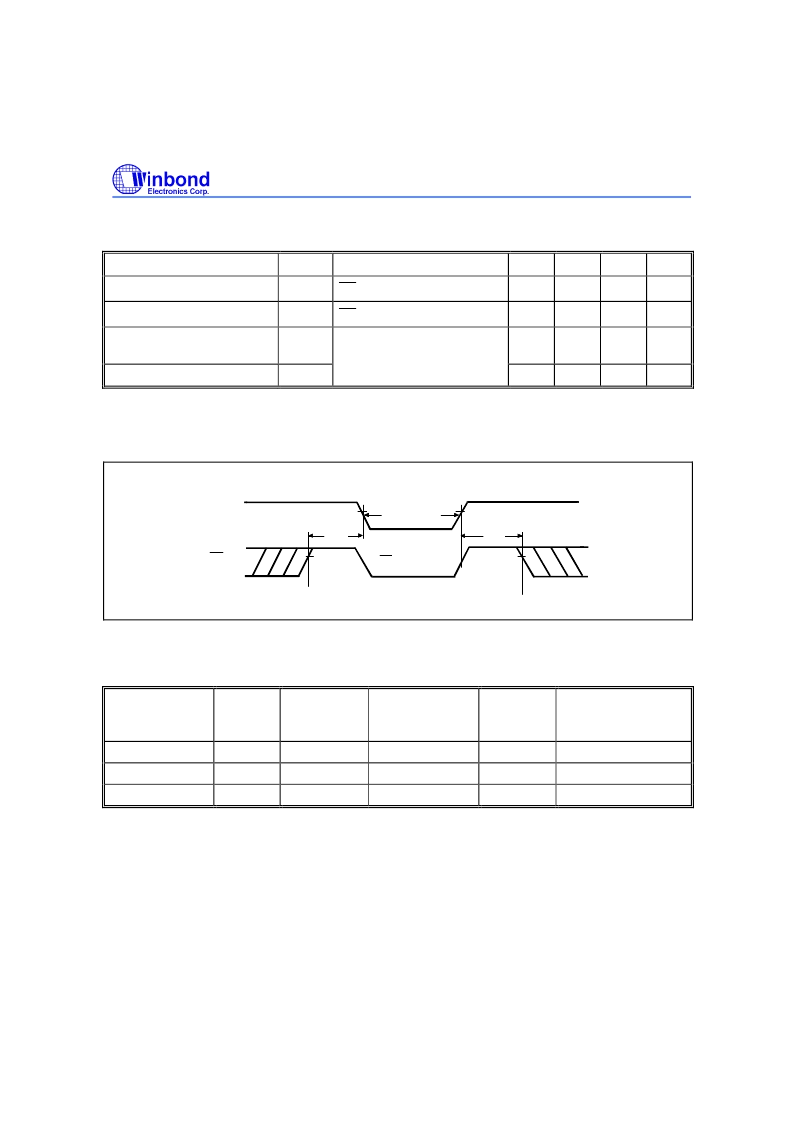

Preliminary W24L25
Publication Release Date: November 1999
- 7 -
Revision A1
DATA RETENTION CHARACTERISTICS
(T
A
(
°
C) = 0 to 70)
PARAMETER
SYM.
TEST CONDITIONS
MIN.
TYP. MAX. UNIT
V
DD
for Data Retention
V
DR
CS
≥
V
DD
-0.2V
2.0
-
-
V
Data Retention Current
I
DDDR
CS
≥
V
DD
-0.2V, V
DD
= 3V
See data retention waveform
-
-
15
μ
A
Chip Deselect to Data
Retention Time
T
CDR
0
-
-
nS
Operation Recovery Time
T
R
T
RC
*
-
-
nS
*
Read Cycle Time
DATA RETENTION WAVEFORM
T
CDR
-0.2V
DD
V
V
DD
CS
T
R
CS
V
DR
2V
=
=
0.9
DD
V
0.9
DD
V
ORDERING INFORMATION
PART NO.
ACCESS
TIME
(nS)
OPERATING
VOLTAGE
(V
)
OPERATING
TEMPERATURE
( C
)
STANDBY
CURRENT
MAX.( A)
PACKAGE
W24L25-70LL
70
3.0V to 3.6V
0 to 70
15
600 mil DIP
W24L25S-70LL
70
3.0V to 3.6V
0 to 70
15
450 mil SOP
W24L25Q-70LL
70
3.0V to 3.6V
0 to 70
15
Small TSOP
Notes:
1. Winbond reserves the right to make changes to its products without prior notice.
2. Purchasers are responsible for performing appropriate quality assurance testing on products intended for use in applications
where personal injury might occur as a consequence of product failure.
