Preliminary W25S243A
64K
×
64 BURST PIPELINED HIGH-SPEED
CMOS STATIC RAM
Publication Release Date: November 1998
- 1 -
Revision A1
GENERAL DESCRIPTION
The W25S243A is a high-speed, low-power, synchronous-burst pipelined, CMOS static RAM
organized as 65,536
×
64 bits that operates on a single 3.3-volt power supply. A built-in two-bit burst
address counter supports both Pentium
burst mode and linear burst mode. The mode to be
executed is controlled by the LBO pin. Pipelining or non-pipelining of the data outputs is controlled by
the FT pin. A snooze mode can reduces power dissipation.
This device supports 3-1-1-1-2-1-1-1 in a two-bank, back-to-back burst read cycle.
FEATURES
Synchronous operation
High-speed access time: 12 nS
Single +3.3V power supply
Individual byte write capability
3.3V LVTTL compatible I/O
Clock-controlled and registered input
Asynchronous output enable
Pipelined/non-pipelined data output capability
Supports snooze mode (low-power state)
Internal burst counter supports Intel burst
(Interleaved) mode & linear burst mode
Supports 2T/1T mode
Packaged in 128-pin QFP and TQFP

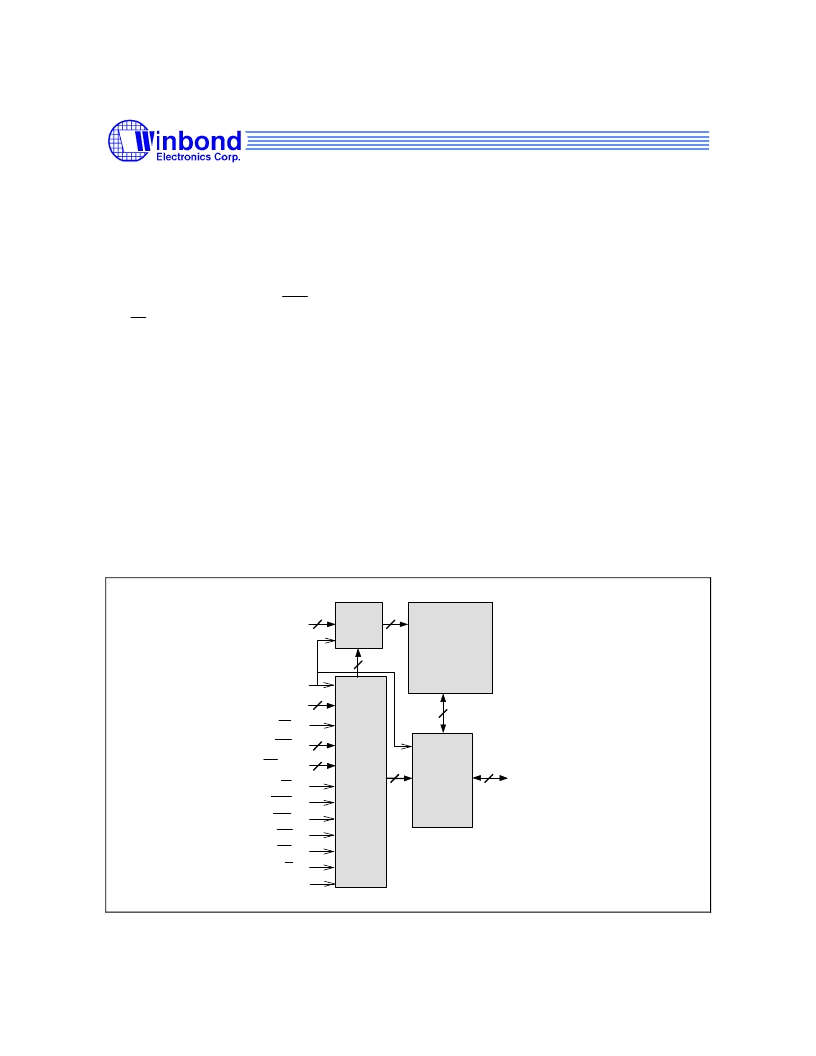

BLOCK DIAGRAM
A(15:0)
DATA I/O
REGISTER
INPUT
REGISTER
CONTROL
LOGIC
REGISTER
64K X 64
CORE
ARRAY
CE(3:1)
BWE
CLK
OE
GW
ADSC
ADSP
ADV
LBO
BW(8:1)
I/O(64:1)
FT
ZZ
