Dimensions are shown in mm (inch)

Dimensions subject to change

136

RF Coaxial Connectors

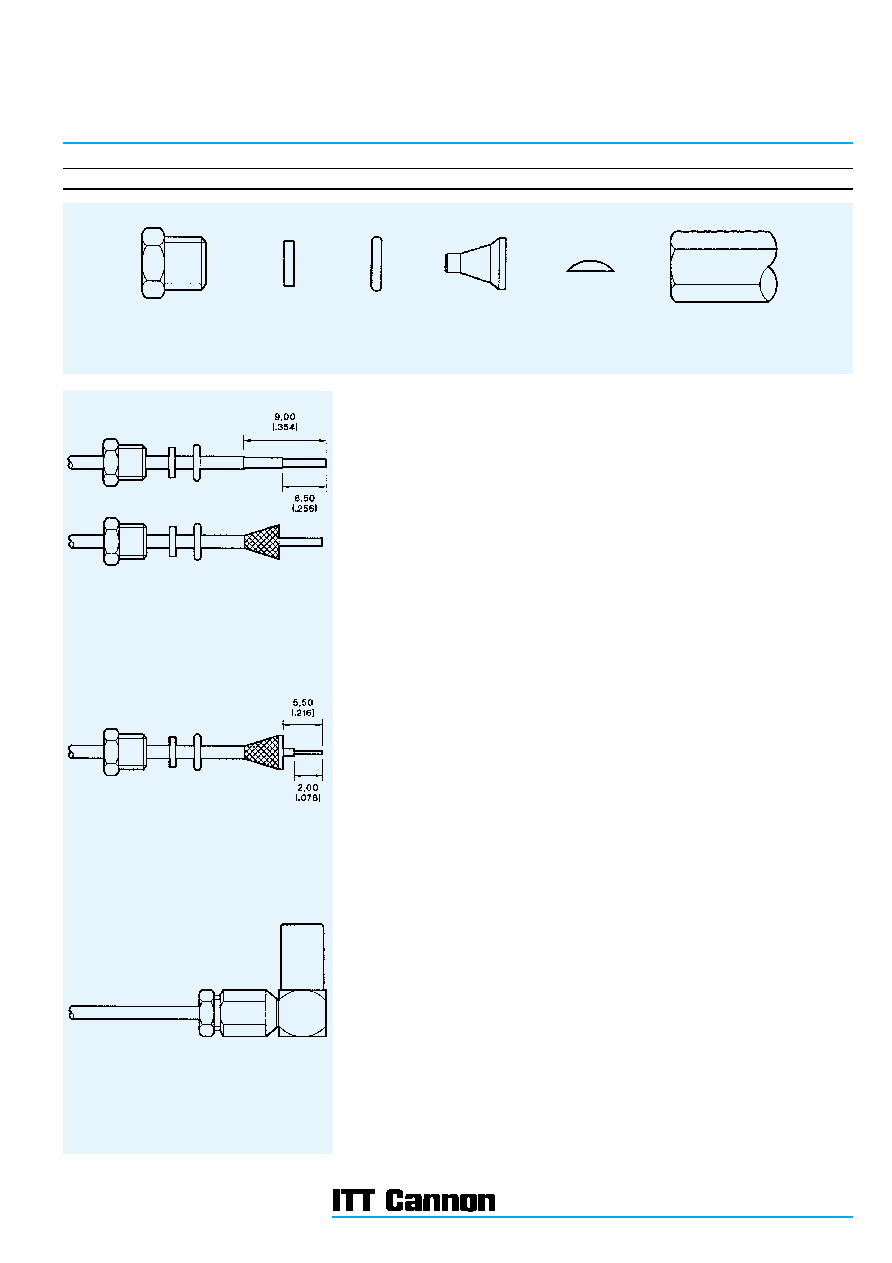

Assembly Instructions

BBAI-1221

SMB Right Angle Connectors, Clamp Type for Braided Cable

CLAMP NUT

WASHER

‘O’ RING

SLEEVE

CAP

BODY

11. Locate the cap in rear of body and dimple or lightly punch to ensure it is locked in position

(recommended tool is a flat punch).

10. Center conductor will extend into contact slot. Using a small soldering iron solder center

conductor onto contact.

9. Thread into rear body and tighten clamp nut to 1,02 Nm (9 in. lbs.).

8. Slide ’0’ ring forward to trap braid around sleeve.

7. Tin center conductor (DO NOT OVER TIN).

6. Trim back dielectric to dimension shown.

5. Trim braid flush with flange of sleeve.

4. Slide sleeve over dielectric and under braid until sleeve is flush with braid.

N.B. When using cables with inflexible jackets it is permissible to make two 3,17 (.125)

longitudinal slits in the outer jacket.

3. Thumb braid out radially at right angles to cable dielectric.

2. Trim cable to dimensions shown being careful not to nick the braid.

1. Slide clamp nut, washer and ’0’ ring over cable.
