- 您現在的位置：買賣IC網 > PDF目錄153712 > 203175 (ERNI ELECTRONICS INC) 32 CONTACT(S), FEMALE, TELECOM AND DATACOM CONNECTOR, SOLDER, JACK PDF資料下載
參數資料
| 型號： | 203175 |
| 廠商： | ERNI ELECTRONICS INC |
| 元件分類： | 電信和以太網連接器 |
| 英文描述： | 32 CONTACT(S), FEMALE, TELECOM AND DATACOM CONNECTOR, SOLDER, JACK |
| 文件頁數： | 2/2頁 |
| 文件大小： | 42K |
| 代理商： | 203175 |

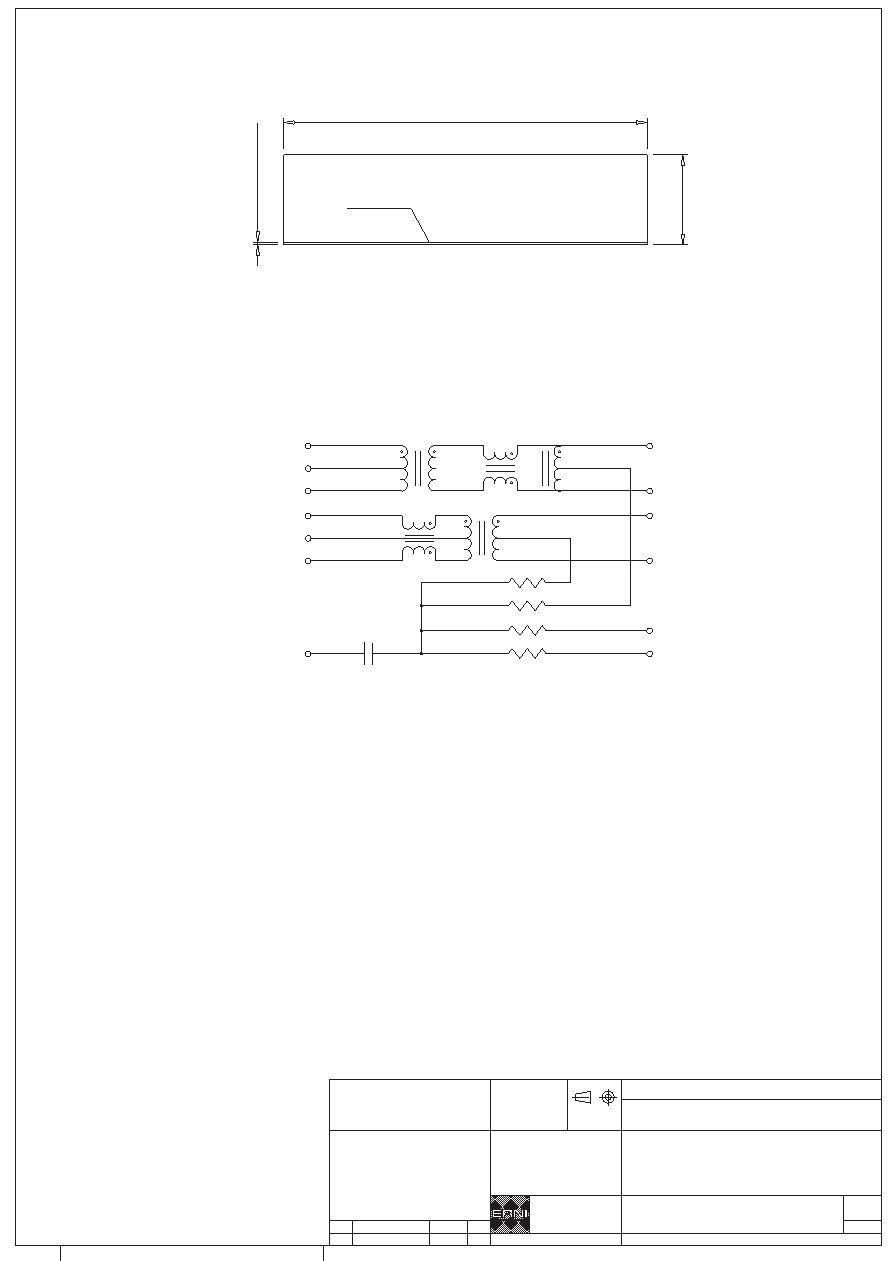

26SEP02
b
8P8C, 1X4, INTEGRATED MAGNETICS
MAXM
J
203175
MOD JACK - MJIM
2:1
-
MAXCONN P.N.:
MJFS-G-88-4B-GF5T-M3F01
LP
EMPFOHLENER FRONTPLATTEN AUSSCHNITT
RECOMMENDED PANEL
CUTOUT
TOP OF PCB
1000pF/2KV
RD- P6
GND P8
RD+ P3
TD- P2
CT
P4
TD+ P1
PCB
4X 75 W
ELECTRICAL SCHEMATIC
ELEKTRISCHES DIAGRAMM
J6 RX-
J7,8
J4,5
CABLE
J2 TX-
J3 RX+
J1 TX+
0.1-100 MHz
-1.1 dB MAX
MAGNETICS SPECIFICATIONS @ 25C
60-80 MHz
-12 dB MIN
50 MHz
-13.6 dB MIN
40 MHz
-15.5 dB MIN
INSERTION LOSS:
(P1-P2:P3-P6)
350
H MIN
(P3-P6:J3-J6)
1CT:1CT
±3%
(P1-P2:J1-J2)
1CT:1CT
±3%
TURNS RATIO:
OCL (100 KHz, 0.1 Vrms, 8 mA)
ISOLATION
1500 Vrms
CMR (0.1-100 MHz)
-40 dB TYP
CROSSTALK (0.1-100 MHz)
-40 dB MIN
RETURN LOSS:
0.5-30 MHz
-18 dB MIN
CT
P5
0.38
±0.10
[.015
±.004]
60.19
±0.20 [2.370±0.008]
14.89
[.586]
Date
Rev.
in mm
ERNI Components
CHESTER, VA U.S.A.
Group/Type
[in]
I
Scale
Designation
Tolerances
Consider
pr
otection
memo
fr
om
DIN
34
All rights reserved.
Only for information.
To insure that this is the latest
version of this drawing, please
contact one of the ERNI companies
before using.
Subject to modification without
prior notice.
Drawing will not be updated.
Information:
All Dimensions
