| 型號： | 203186 |
| 廠商： | ERNI ELECTRONICS INC |
| 元件分類： | 電信和以太網連接器 |
| 英文描述： | 64 CONTACT(S), FEMALE, TELECOM AND DATACOM CONNECTOR, SOLDER, JACK |
| 文件頁數： | 1/2頁 |
| 文件大小： | 57K |
| 代理商： | 203186 |
02MAR04
b
-
2:1
-
MAXMJ

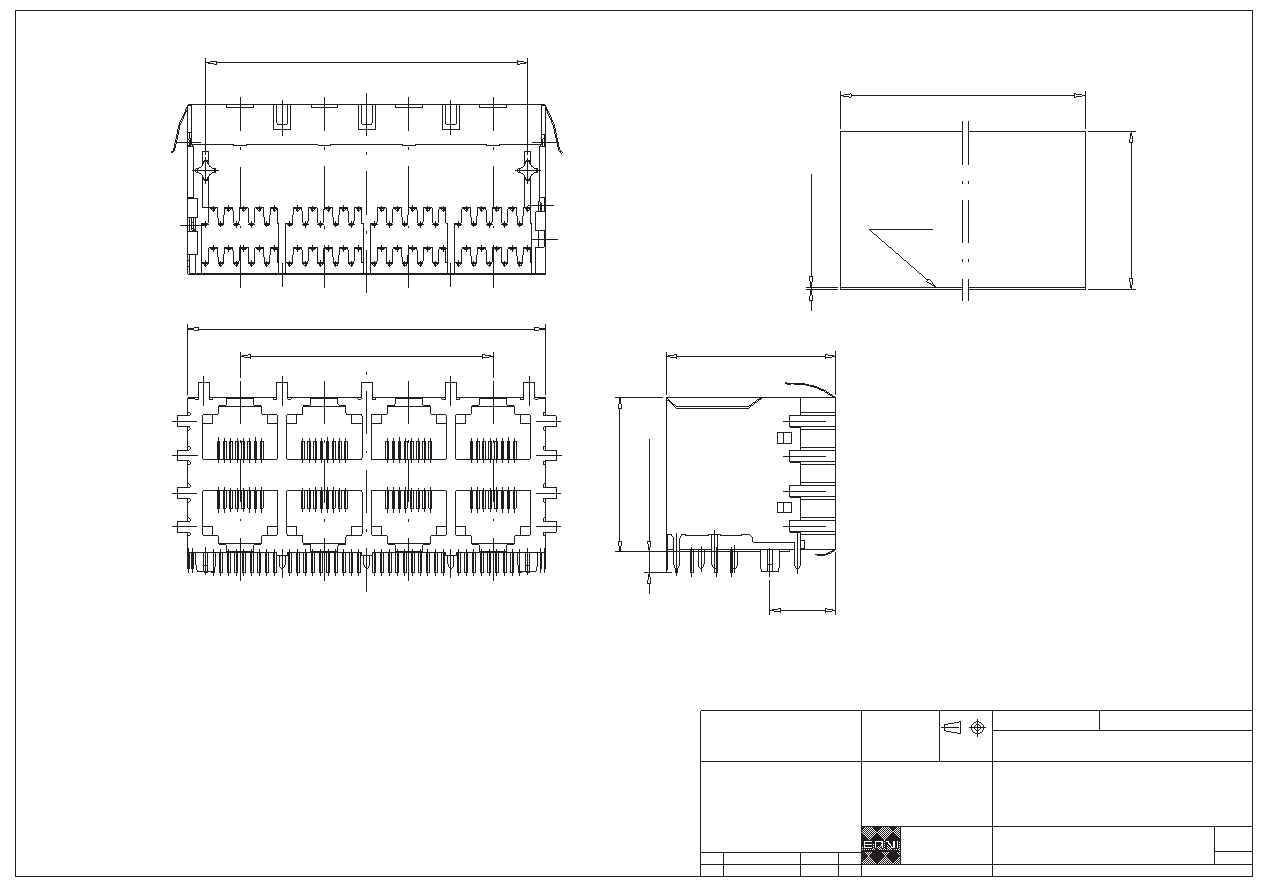

MOD JACK - MJIM
-
8C10T, 2X4, INTEGRATED MAGNETICS
203186
I
SCHEMATIC NUMBER: M5B01
LP
RECOMMENDED PANEL CUTOUT
EMPFOHLENER FRONTPLATTEN AUSSCHNITT
TOP OF PCB
26.16
[1.030]
0.38
±0.10
[.015
±.004]
60.19
±0.20 [2.370±.008]
NOTE 2: GROUNDING PIN BETWEEN EVERY PORT [T]
NOTE 1: PANEL GROUND FLANGES TOP, BOTTOM, SIDES (GF9)
1
8
1
8
1
8
1
8
1
8
1
8
1
8
1
3 x 13.97 [.550] = (41.91 [1.650])
59.17 [2.330]
53.34
±0.13 [2.100±.005]
3.50
±0.30
[.138
±.012]
25.50
[1.004]
MAX
10.89 [.429]
28.50 [1.122] MAX
HOUSING: GLASS FILLED POLYESTER UL 94 V-0 BLACK
FRONT SHIELD: STAINLESS STEEL
ELECTRICAL CHARACTERISTICS
CONTACT RESISTANCE: 30 MILLIOHMS MAX
OPERATING TEMPERATURE: 0C TO 70C
TERMINAL FINISH: SnPb
CONTACT FINISH: Au, 0.8
m (30 in) OVER Ni
MECHANICAL CHARACTERISTICS
CONTACTS: PHOSPHOR BRONZE
DURABILITY: 1000 MATING CYCLES
MATERIALS AND FINISH
INNER SHIELD: Cu ALLOY, PLATED WITH Sn
REAR SHIELD: Cu ALLOY, PLATED WITH Ni
Scale
Designation
Tolerances
Consider
pr
otection
memo
fr
om
DIN
34
All rights reserved.
Only for information.
To insure that this is the latest
version of this drawing, please
contact one of the ERNI companies
before using.
Subject to modification without
prior notice.
Drawing will not be updated.
Date
Index
Information:
All Dimensions
in mm
www.ERNI.com
