2002 Mar 27
2
Philips Semiconductors
Product specication
Schottky barrier double diode
BAS40-07V
FEATURES
Low forward voltage
Low capacitance
Ultra small plastic SMD package
Flat leads: excellent coplanarity and improved thermal
behaviour
APPLICATIONS
Ultra high-speed switching
Voltage clamping
Line termination
Inverse-polarity protection.
DESCRIPTION
Planar Schottky barrier double diode with an integrated
guard ring for stress protection.
Two separate dies encapsulated in a SOT666 ultra small
SMD plastic package.
PINNING
PIN
DESCRIPTION
1
anode 1
2
not connected
3
cathode 2
4
anode 2
5
not connected
6
cathode 1
handbook, halfpage
12
3
4
6
5
Top view
MAM461
64
3
1

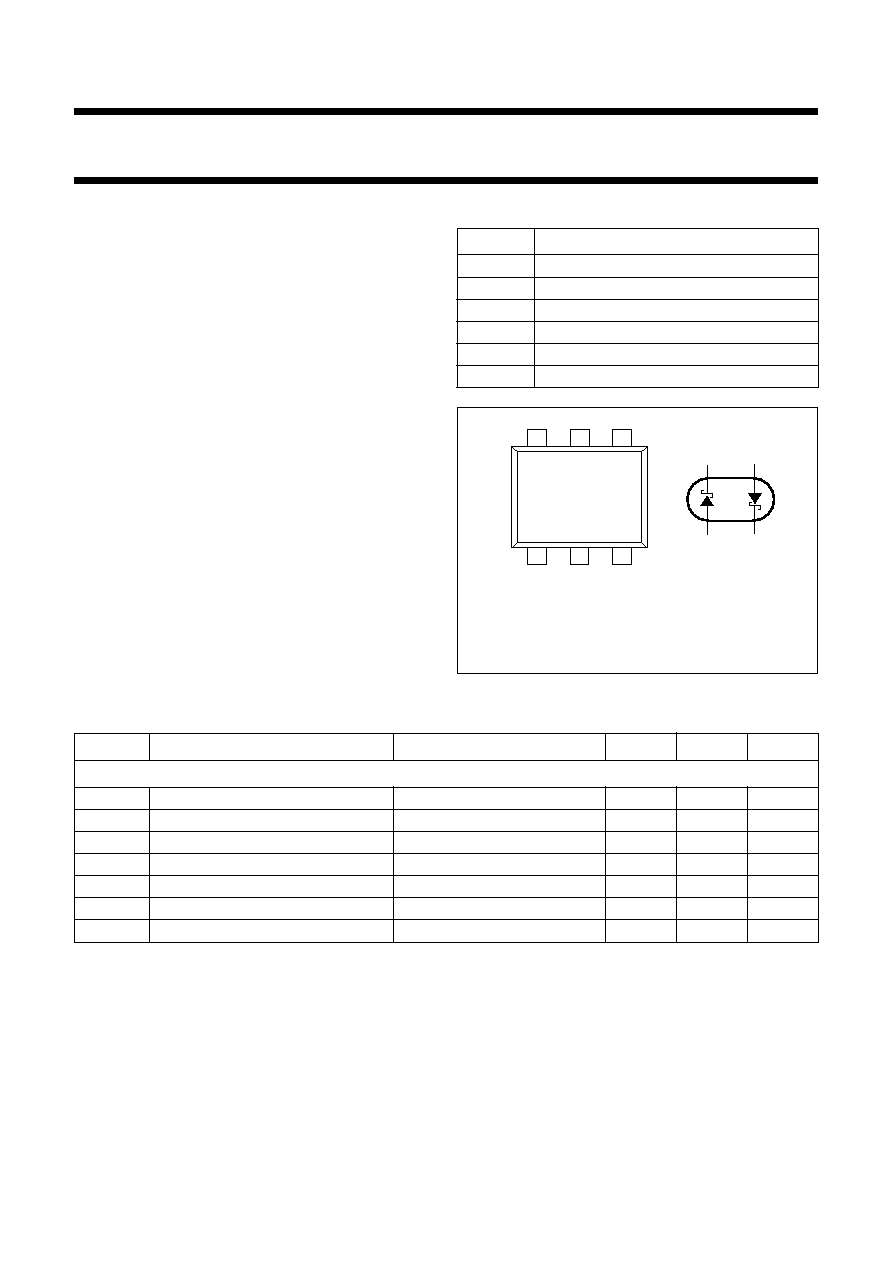

Fig.1
Simplified outline (SOT666) and symbol.
Marking code: 67.
LIMITING VALUES
In accordance with the Absolute Maximum Rating System (IEC 60134).
SYMBOL
PARAMETER
CONDITIONS
MIN.
MAX.
UNIT
Per diode
VR
continuous reverse voltage
40
V
IF
continuous forward current
120
mA
IFRM
repetitive peak forward current
120
mA
IFSM
non-repetitive peak forward current
tp <10ms
200
mA
Tstg
storage temperature
65
+150
°C
Tj
junction temperature
150
°C
Tamb
operating ambient temperature
65
+150
°C
