| 型號： | 934056717115 |
| 廠商： | NXP SEMICONDUCTORS |
| 元件分類： | 二極管(射頻、小信號、開關、功率) |
| 英文描述： | 0.12 A, 2 ELEMENT, SILICON, SIGNAL DIODE |
| 封裝： | ULTRA SMALL, PLASTIC, SMD, 6 PIN |
| 文件頁數： | 4/8頁 |
| 文件大小： | 51K |
| 代理商： | 934056717115 |
2002 Mar 27
4
Philips Semiconductors
Product specication
Schottky barrier double diode
BAS40-07V

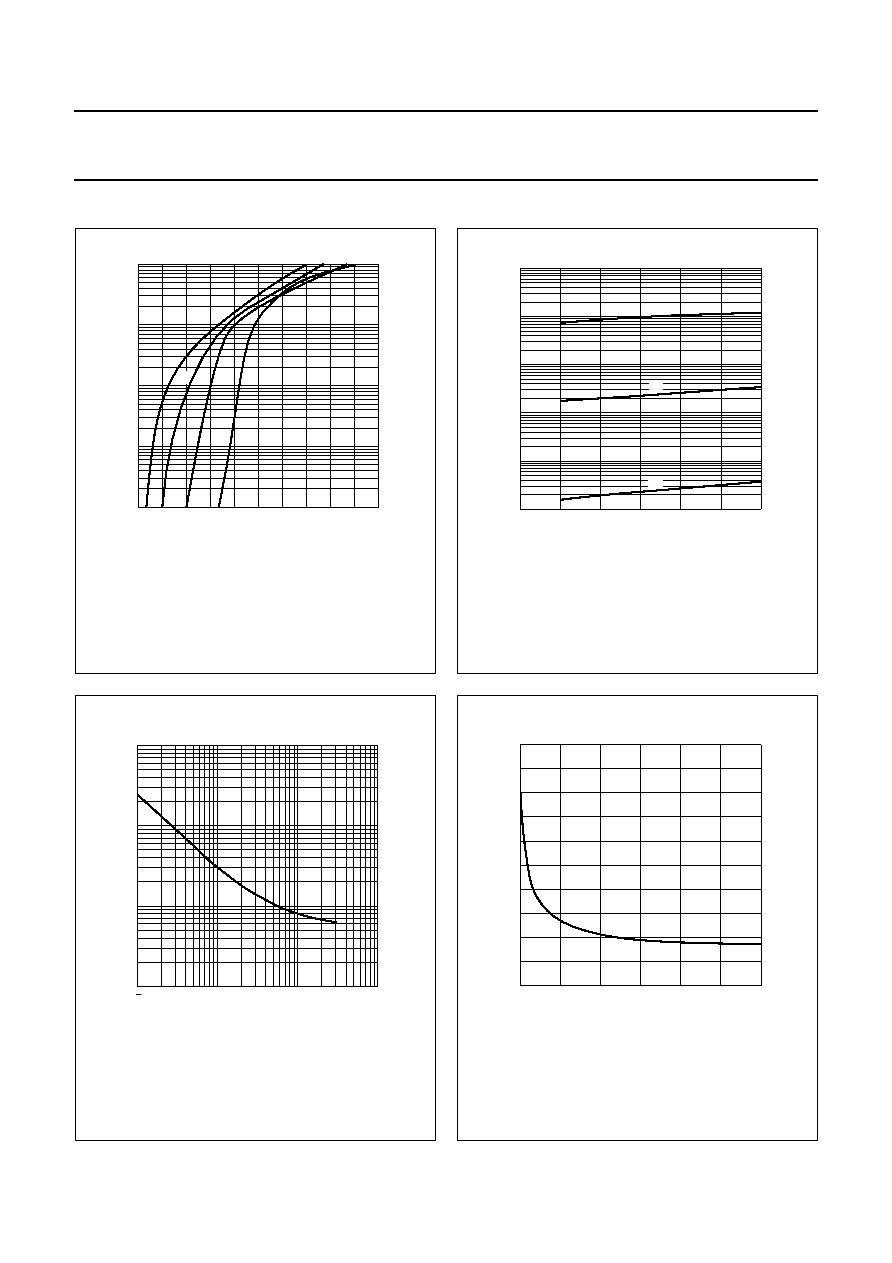

GRAPHICAL DATA
handbook, halfpage
102
101
102
10
1
0
MLC361
0.6
0.8
0.4
0.2
1
VF (V)
IF
(mA)
(1)
(2)
(3)
(4)
Fig.2
Forward current as a function of forward
voltage; typical values.
(1) Tamb = 150 °C.
(2) Tamb =85 °C.
(3) Tamb =25 °C.
(4) Tamb = 40 °C.
handbook, halfpage
103
102
101
102
10
1
0
MHC180
20
10
30
VR (V)
IR
(
A)
(1)
(2)
(3)
Fig.3
Reverse current as a function of reverse
voltage; typical values.
(1) Tamb = 150 °C.
(2) Tamb =85 °C.
(3) Tamb =25 °C.
handbook, halfpage
MLC364
110
10
2
1
10 3
10
102
10 1
r diff
(
)
I (mA)
F
Fig.4
Differential forward resistance as a function
of forward current; typical values.
f = 10 kHz.
handbook, halfpage
010
20
30
5
0
4
MHC181
3
2
1
VR (V)
Cd
(pF)
Fig.5
Diode capacitance as a function of reverse
voltage; typical values.
f = 1 MHz; Tamb =25 °C.
