Philips Semiconductors
Product data
NE57605
Lithium-ion battery protector for
3 or 4 cell battery packs
2
2001 Oct 03
853-2295 27198
GENERAL DESCRIPTION
The NE57605 is a 3-4-cell Li-ion protection IC. Its over- and
under-voltage accuracy is trimmed to within
±25 mV (5%), and is
available to match the requirements of all lithium-ion cells
manufactured in the market today.
FEATURES
Trimmed overvoltage trip point to within ±25 mV
Programmable overvoltage trip time delay
Trimmed undervoltage trip point to within ±25 mV
Very low undervoltage sleep quiescent current 2 mA.
Discharge overcurrent cutoff.
Low operating current (10 mA).
Very small package (TSOP-20A).
APPLICATIONS
Laptop Computers
Other battery-powered devices
SIMPLIFIED SYSTEM DIAGRAM
OV REF
UV REF
VC4
VC3
OV REF
UV REF
VC2
OV REF
UV REF
VC1
OV REF
UV REF
GND
CHARGER
DETECTOR
OC REF
CS
OVERCURRENT
DEADTIME
CONTROL
CDLY(OC)
SEL
OD
DEADTIME
CONTROL
CDLY(UV)
CON
DF
VCC
OV
DEADTIME
CONTROL
CF
VCC
CDLY(OV)
SEL
VCC
SL01582

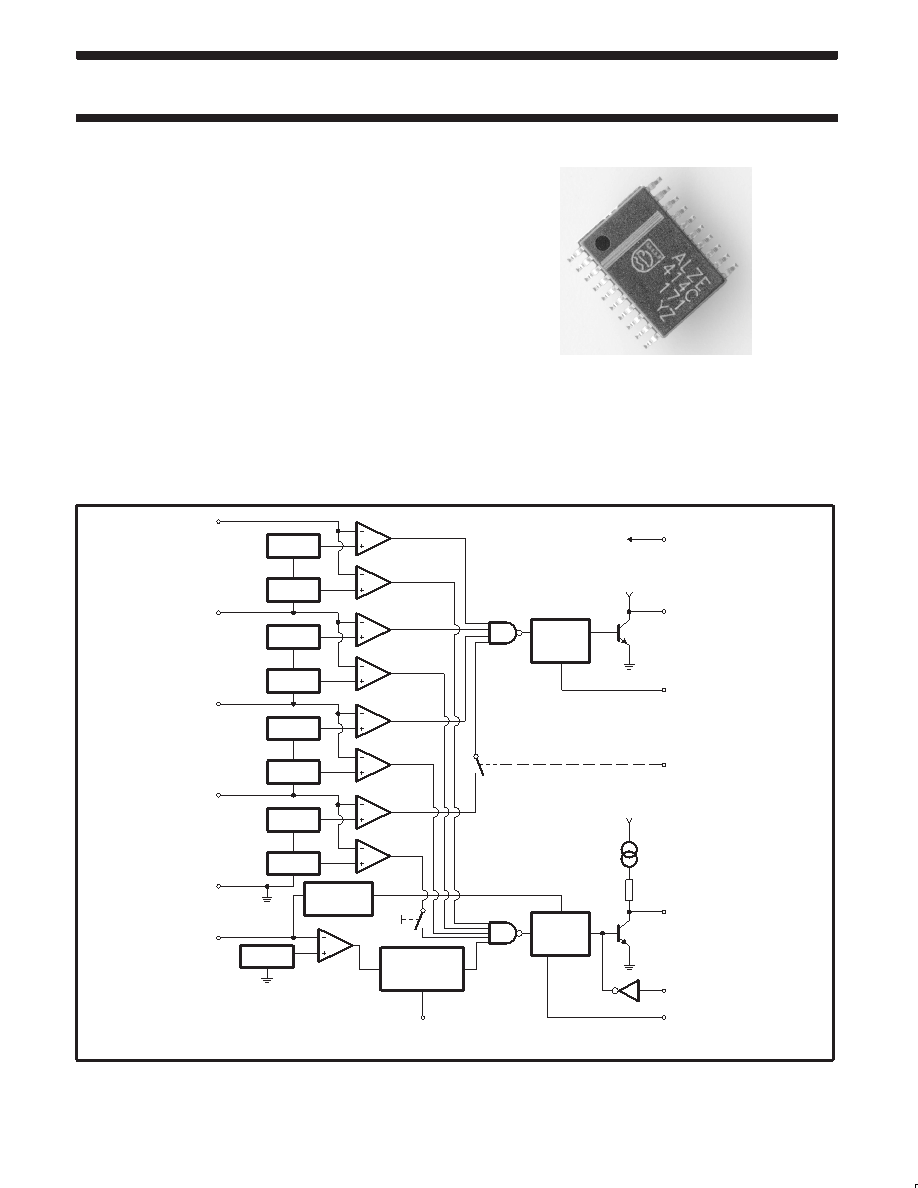

Figure 1. Simplified system diagram.
