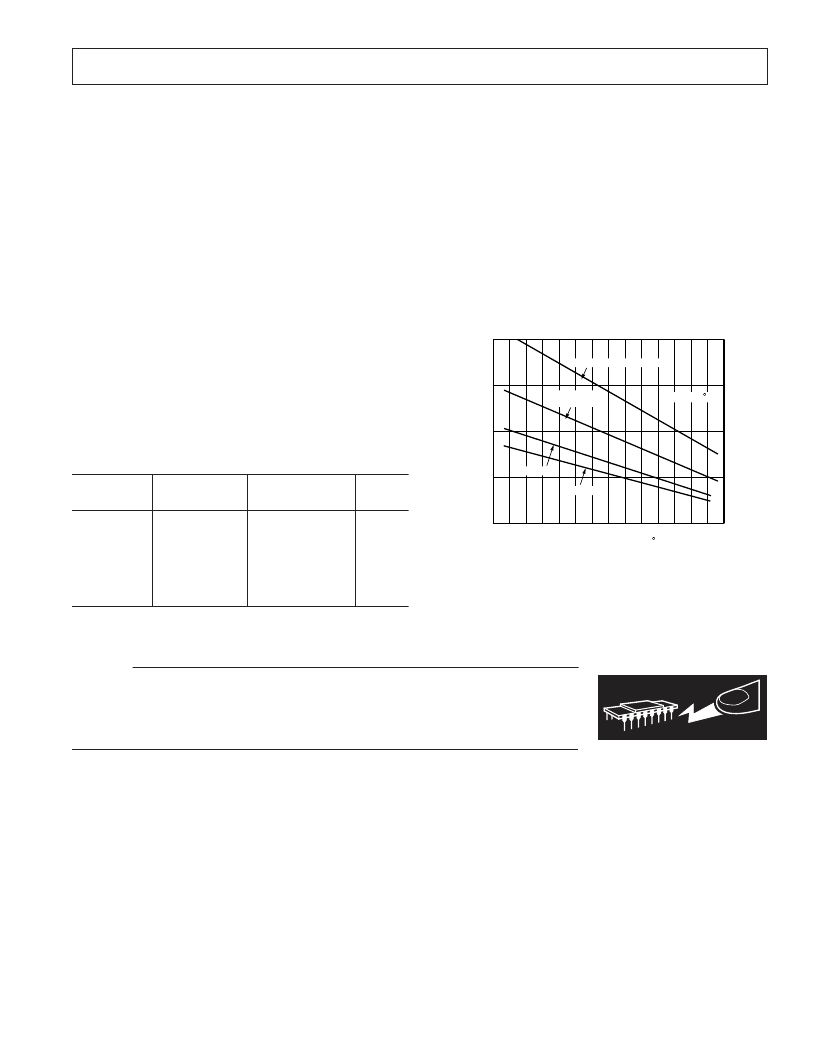

AD8055/AD8056
–3–
REV. 0
WARNING!
ESD SENSITIVE DEVICE
CAUTION
ESD (electrostatic discharge) sensitive device. Electrostatic charges as high as 4000 V readily
accumulate on the human body and test equipment and can discharge without detection.
Although the AD8055/AD8056 feature proprietary ESD protection circuitry, permanent damage
may occur on devices subjected to high energy electrostatic discharges. Therefore, proper ESD
precautions are recommended to avoid performance degradation or loss of functionality.
ABSOLUTE MAXIMUM RATINGS
1
Supply Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12.6 V
Internal Power Dissipation
2
Plastic Package (N) . . . . . . . . . . . . . . . . . . . . . . . . . . 1.3 W
Small Outline Package (R) . . . . . . . . . . . . . . . . . . . . . 0.8 W
SOT-23-5 Package . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.5 W
microSOIC Package . . . . . . . . . . . . . . . . . . . . . . . . . . 0.6 W
Input Voltage (Common Mode) . . . . . . . . . . . . . . . . . . .
±
V
S
Differential Input Voltage . . . . . . . . . . . . . . . . . . . . . .
±
2.5 V
Output Short Circuit Duration
. . . . . . . . . . . . . . . . . . . . . .Observe Power Derating Curves
Storage Temperature Range N, R . . . . . . . . –65
°
C to +125
°
C
Operating Temperature Range (A Grade) . . –40
°
C to +85
°
C
Lead Temperature Range (Soldering 10 sec) . . . . . . . +300
°
C
NOTES
1
Stresses above those listed under Absolute Maximum Ratings may cause perma-
nent damage to the device. This is a stress rating only; functional operation of the
device at these or any other conditions above those indicated in the operational
section of this specification is not implied. Exposure to absolute maximum rating
conditions for extended periods may affect device reliability.
2
Specification is for device in free air:
8-Lead Plastic DIP Package:
θ
= 90
°
C/Watt
8-Lead SOIC Package:
θ
= 160
°
C/Watt
5-Lead SOT-23-5 Package:
θ
JA
= 240
°
C/Watt
8-Lead microSOIC Package:
θ
JA
= 200
°
C/Watt
ORDERING GUIDE
Temperature
Range
Package
Description
Package
Options*
Model
AD8055AN
AD8055AR
AD8055ART
AD8056AN
AD8056AR
AD8056ARM
–40
°
C to +85
°
C
–40
°
C to +85
°
C
–40
°
C to +85
°
C
–40
°
C to +85
°
C
–40
°
C to +85
°
C
–40
°
C to +85
°
C
8-Lead PDIP
8-Lead SOIC
5-Lead SOT-23-5
8-Lead PDIP
8-Lead SOIC
8-Lead microSOIC RM-08
N-8
R-8
RT-5
N-8
R-8
*N = Plastic DIP; R = Small Outline; RM = Micro Small Outline; RT = Surface
Mount.
MAXIMUM POWER DISSIPATION
The maximum power that can be safely dissipated by the AD8055/
AD8056 is limited by the associated rise in junction temperature.
The maximum safe junction temperature for plastic encapsu-
lated devices is determined by the glass transition temperature
of the plastic, approximately +150
°
C. Exceeding this limit tem-
porarily may cause a shift in parametric performance due to a
change in the stresses exerted on the die by the package. Exceeding
a junction temperature of +175
°
C for an extended period can
result in device failure.
While the AD8055/AD8056 are internally short circuit protected,
this may not be sufficient to guarantee that the maximum junc-
tion temperature (+150
°
C) is not exceeded under all conditions.
To ensure proper operation, it is necessary to observe the maxi-
mum power derating curves.
AMBIENT TEMPERATURE – C
–50
0
T
J
= +150 C
2.0
1.5
1.0
0.5
M
8-PIN SOIC
PACKAGE
–40 –30 –20 –10
0
10
20
30
40
50
60
70
80
90
8-PIN MINI-DIP PACKAGE
microSOIC
SOT-23-5
Figure 2. Plot of Maximum Power Dissipation vs.
Temperature for AD8055/AD8056
