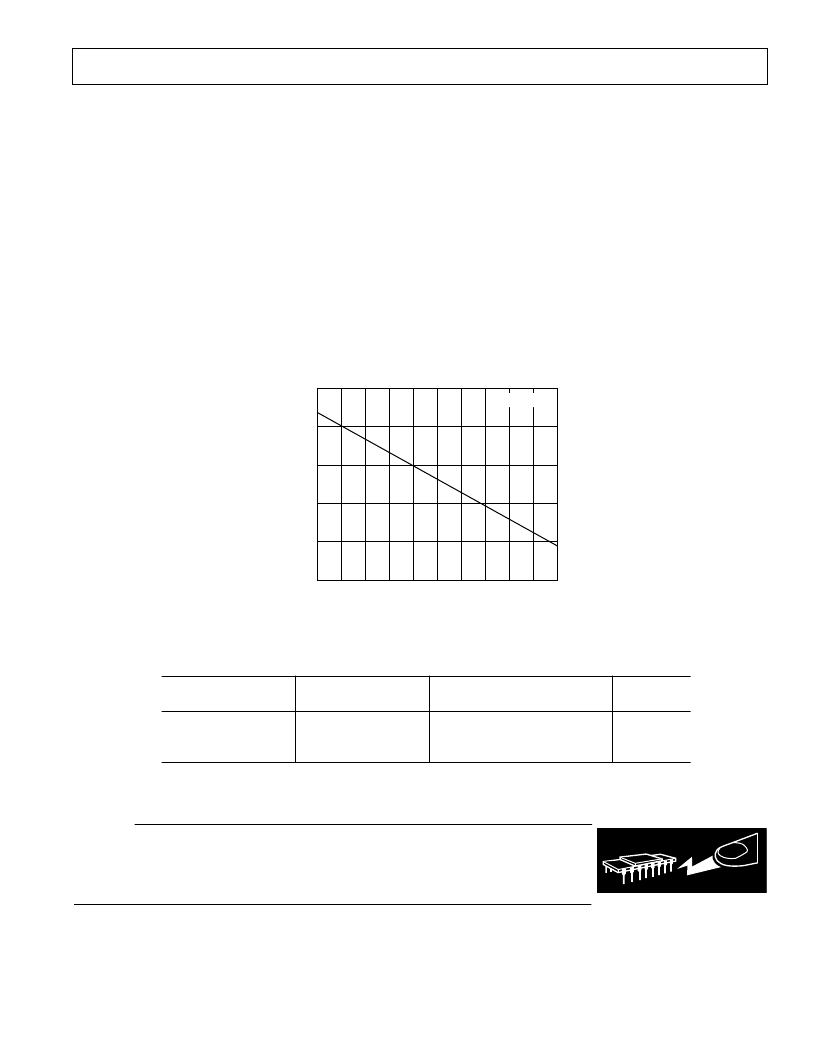

AD8150
–3–
REV. 0
CAUTION
ESD (electrostatic discharge) sensitive device. Electrostatic charges as high as 4000 V readily
accumulate on the human body and test equipment and can discharge without detection. Although
the AD8150 features proprietary ESD protection circuitry, permanent damage may occur on
devices subjected to high energy electrostatic discharges. Therefore, proper ESD precautions are
recommended to avoid performance degradation or loss of functionality.
WARNING!
ESD SENSITIVE DEVICE
MAXIMUM POWER DISSIPATION
The maximum power that can be safely dissipated by the AD8150
is limited by the associated rise in junction temperature. The
maximum safe junction temperature for plastic encapsulated
devices is determined by the glass transition temperature of
the plastic, approximately 150
°
C. Temporarily exceeding this
limit may cause a shift in parametric performance due to a change
in the stresses exerted on the die by the package. Exceeding a
junction temperature of 175
°
C for an extended period can result in
device failure.
While the AD8150 is internally short circuit protected, this may
not be sufficient to guarantee that the maximum junction temp-
erature (150
°
C) is not exceeded under all conditions. To ensure
proper operation, it is necessary to observe the maximum power
derating curves shown in Figure 2.
ABSOLUTE MAXIMUM RATINGS
1
Supply Voltage V
DD
– V
EE
. . . . . . . . . . . . . . . . . . . . . . . 10.5 V
Internal Power Dissipation
2
AD8150 184-Lead Plastic LQFP (ST) . . . . . . . . . . . . .4.2 W
Differential Input Voltage . . . . . . . . . . . . . . . . . . . . .V
CC
– V
EE
Output Short Circuit Duration
. . . . . . . . . . . . . . . . . . . . . . Observe Power Derating Curves
Storage Temperature Range . . . . . . . . . . . . .–65
°
C to +125
°
C
Lead Temperature Range (Soldering 10 sec) . . . . . . . . . 300
°
C
NOTES
1
Stresses above those listed under Absolute Maximum Ratings may cause perma-
nent damage to the device. This is a stress rating only; functional operation of the
device at these or any other conditions above those indicated in the operational
section of this specification is not implied. Exposure to absolute maximum rating
conditions for extended periods may affect device reliability.
2
Specification is for device in free air (T
A
= 25
°
C):
184-lead plastic LQFP (ST):
θ
JA
= 30
°
C/W.
ORDERING GUIDE
Temperature
Range
Package
Description
Package
Option
Model
AD8150AST
0
°
C to 85
°
C
184-Lead Plastic LQFP
(20 mm
×
20 mm)
Evaluation Board
ST-184
AD8150-EVAL
AMBIENT TEMPERATURE
–
C
M
–
–
10
0
10
20
30
40
50
60
70
80
90
2.0
3.0
4.0
5.0
6.0
T
J
= 150 C
1.0
Figure 2. Maximum Power Dissipation vs. Temperature
