Preliminary Technical Data
AD8176
this error. This distorts the output signal from the ideal
response compared to the case when the two outputs are
balanced.
Decoupling
The signal path of the AD8176 is based on high open loop gain
amplifiers with negative feedback. Dominant-pole compensation
is used on-chip to stabilize these amplifiers over the range of
expected applied swing and load conditions. To guarantee this
designed stability, proper supply decoupling is necessary with
respect to both the differential control loops and the common-
mode control loops of the signal path. Signal-generated
currents must return to their sources through low impedance
paths at all frequencies in which there is still loop gain (up to
700 MHz at a minimum).
The signal path compensation capacitors in the AD8176 are
connected to the VNEG supply. At high frequencies, this limits
the power supply rejection ratio (PSRR) from the VNEG supply
to a lower value than that from the VPOS supply. If given a
choice, an application board should be designed such that the
VNEG power is supplied from a low inductance plane, subject
to a least amount of noise.
VOCM_CMENCON and VOCM_CMENCOFF are high speed
common-mode control loops of all output drivers. In the single-
ended output sense, there is no rejection from noise on these
inputs to the outputs. For this reason, care must be taken to
produce low noise sources over the entire range of frequencies
of interest. This is not only important to single-ended
operation, but to differential operation, as there is a common-
mode-to-differential gain conversion that becomes greater at
higher frequencies.
VOCM_CMENCON and VOCM_CMENCOFF are internally
buffered to prevent transients flowing into or out of these inputs
from acting on the source impedance and becoming sources of
crosstalk.
Power Dissipation
Calculation of Power Dissipation
Rev. PrA | Page 27 of 32
8
415
85
M
AMBIENT TEMPERATURE (°C)
5
6
7
25
35
45
55
65
75
T
J
= 150°C
0

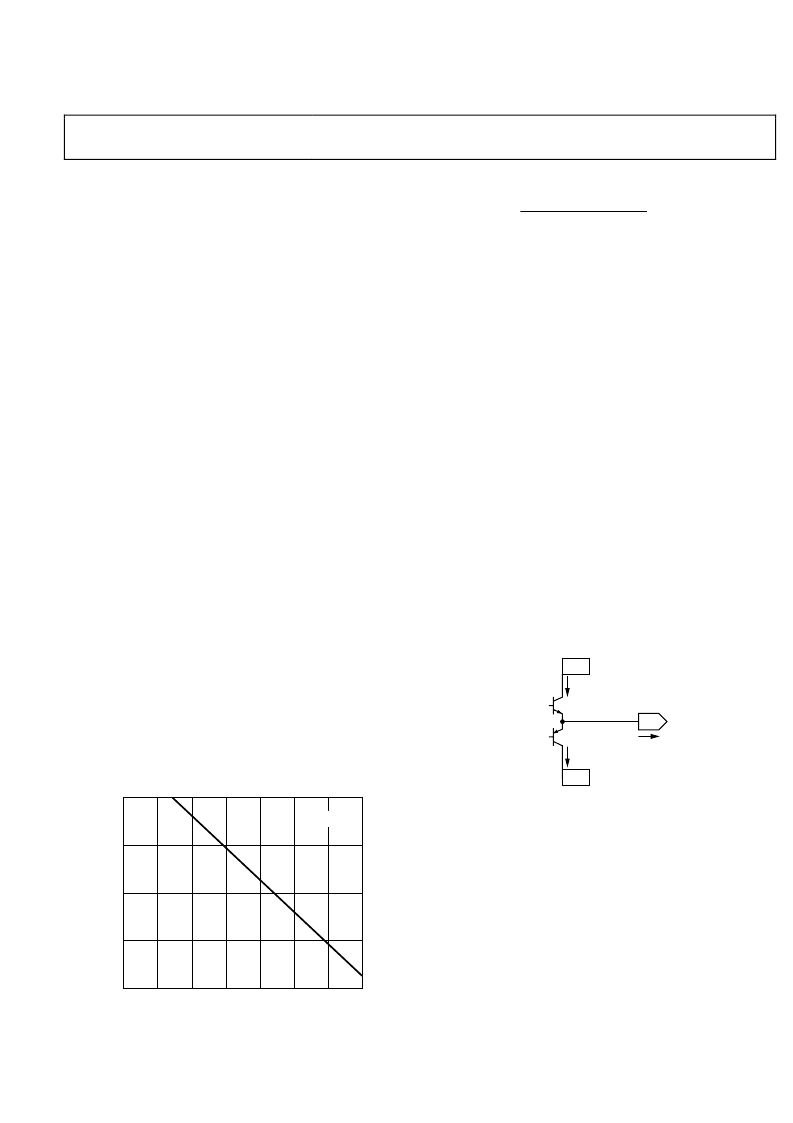

Figure 25. Maximum Die Power Dissipation vs. Ambient Temperature
The curve in Figure 25 was calculated from
JA
AMBIENT
T
MAX
θ
JUNCTION
T
MAX
D
P
=
,
,
(1)
As an example, if the AD8176 is enclosed in an environment at
45
°
C (T
A
), the total on-chip dissipation under all load and
supply conditions must not be allowed to exceed 7.0 W.
When calculating on-chip power dissipation, it is necessary to
include the power dissipated in the output devices due to
current flowing in the loads. For a sinusoidal output about
ground and symmetrical split supplies, the on-chip power
dissipation due the load can be approximated by
(
RMS
UTPUT
O
POS
OUT
D
,
,
)
RMS
OUTPUT
I
V
V
P
,
×
=
(2)
For nonsinusoidal output, the power dissipation should be
calculated by integrating the on-chip voltage drop across the
output devices multiplied by the load current over one period.
The user can subtract the quiescent current for the Class AB
output stage when calculating the loaded power dissipation. For
each output stage driving a load, subtract a quiescent power,
according to
(
)
NEG
POS
Q
OUT
D
V
V
P
,
,
QUIESCENT
OUTPUT
I
,
×
=
(3)
where
I
OUTPUT, QUIESCENT
= 1.65 mA for each single-ended output
pin for the AD8176.
For each disabled RGB output channel, the quiescent
power supply current in VPOS and VNEG drops by approxi-
mately 34 mA.
QNPN
QPNP
V
NEG
V
POS
V
OUTPUT
I
OUTPUT
I
O, QUIESCENT
I
O, QUIESCENT
0
Figure 26. Simplified Output Stage
An example:
For the
AD8176, with an ambient temperature of
85°C, all nine RGB output channels driving 1 V
rms
into 100 Ω
loads, and power supplies at ±2.5 V, follow these steps:
1.
Calculate power dissipation of AD8176 using data sheet
quiescent currents. Neglecting V
DD
current, as it is
insignificant.
(
VPOS
POS
QUIESCENT
D
I
V
P
,
(
mA
600
V
5
,
QUIESCENT
D
P
) (
+
)
VNEG
NEG
(
5
I
V
×
×
=
(4)
)
)
W
3
mA
600
V
=
×
+
×
=
2.
Calculate power dissipation from loads. For a differential
output and ground-referenced load, the output power is
symmetrical in each output phase.
