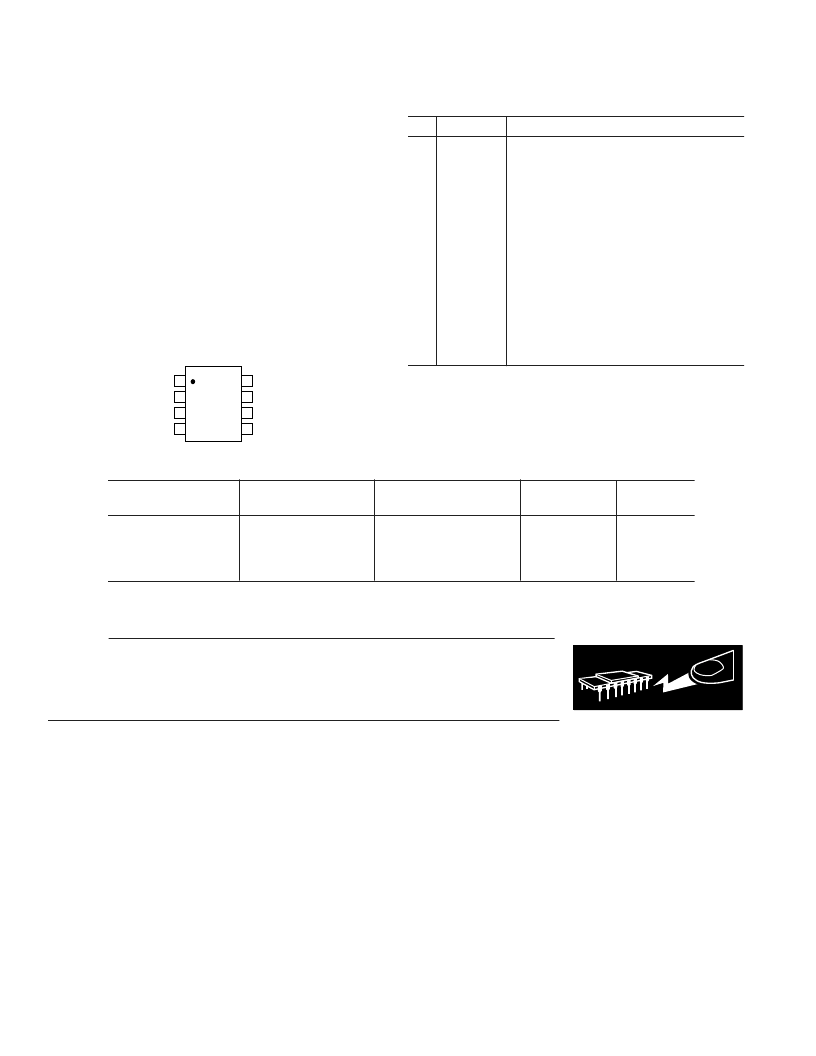

AD8313
–4–
REV. B
CAUTION
ESD (electrostatic discharge) sensitive device. Electrostatic charges as high as 4000 V readily
accumulate on the human body and test equipment and can discharge without detection. Although
the AD8313 features proprietary ESD protection circuitry, permanent damage may occur on
devices subjected to high energy [>250 V HBM] electrostatic discharges. Therefore, proper ESD
precautions are recommended to avoid performance degradation or loss of functionality.
ABSOLUTE MAXIMUM RATINGS*
Supply Voltage V
S
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5.5 V
VOUT, VSET, PWDN . . . . . . . . . . . . . . . . . . . . . . 0 V, VPOS
Input Power Differential (re: 50
, 5.5 V) . . . . . . . . . +25 dBm
Input Power Single-Ended (re: 50
, 5.5 V) . . . . . . . +19 dBm
Internal Power Dissipation . . . . . . . . . . . . . . . . . . . . .200 mW
θ
JA
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 200
°
C/W
Maximum Junction Temperature . . . . . . . . . . . . . . . . +125
°
C
Operating Temperature Range . . . . . . . . . . . .–40
°
C to +85
°
C
Storage Temperature Range . . . . . . . . . . . . .–65
°
C to +150
°
C
Lead Temperature Range (Soldering 60 sec) . . . . . . . . +300
°
C
*Stresses above those listed under Absolute Maximum Ratings may cause perma-
nent damage to the device. This is a stress rating only; functional operation of the
device at these or any other conditions above those indicated in the operational
section of this specification is not implied. Exposure to absolute maximum rating
conditions for extended periods may effect device reliability.
PIN CONFIGURATION
TOP VIEW
(Not to Scale)
8
7
6
5
1
2
3
4
VPOS
INHI
INLO
VPOS
VOUT
VSET
COMM
PWDN
AD8313
PIN FUNCTION DESCRIPTIONS
Pin
Name
Description
1, 4
VPOS
Positive supply voltage (VPOS), +2.7 V to
+5.5 V.
Noninverting Input. This input should be
ac coupled.
Inverting Input. This input should be ac
coupled.
Connect pin to ground for normal operat-
ing mode. Connect pin to supply for power-
down mode.
Device Common.
Setpoint input for operation in controller
mode. To operate in RSSI mode, short
VSET and VOUT.
Logarithmic/Error Output.
2
INHI
3
INLO
5
PWDN
6
7
COMM
VSET
8
VOUT
WARNING!
ESD SENSITIVE DEVICE
ORDERING GUIDE
Temperature
Range
–40
°
C to +85
°
C
–40
°
C to +85
°
C
–40
°
C to +85
°
C
Package
Descriptions
8-Lead
μ
SOIC
13” Tape and Reel
7” Tape and Reel
Evaluation Board
Package
Option
Brand
Code
Model
AD8313ARM
AD8313ARM-REEL
AD8313ARM-REEL7
AD8313-EVAL
RM-08
RM-08
RM-08
J1A
J1A
J1A
