AD9661A
REV. 0
–11–
AD9661A E VALUAT ION BOARD
T he AD9661A Evaluation Board is comprised of two printed
circuit boards. T he Laser Diode Driver (LDD) Resource Board
is both a digital pattern generator and an analog reference gen-
erator (see LDD Resource Board Block Diagram.) T he board is
controlled by an IBM compatible personal computer through a
standard printer cable. T he resource board interfaces to the
AD9661A DUT board, which contains the AD9661A, a level
shift circuit for the analog input, and a socket for an N type
laser diode. A dummy load circuit for the laser diode is in-
cluded for evaluation. Power for all the boards is provided
through the banana jacks on the AD9661A DUT board.
T hese should be connected to a linear, +5 V power supply.
Schematics for the LDD Resource Board, AD9661A DUT ,
and Dummy Load are included, along with a bill of mate-
rial and layout information. Please contact Applications for
additional information.

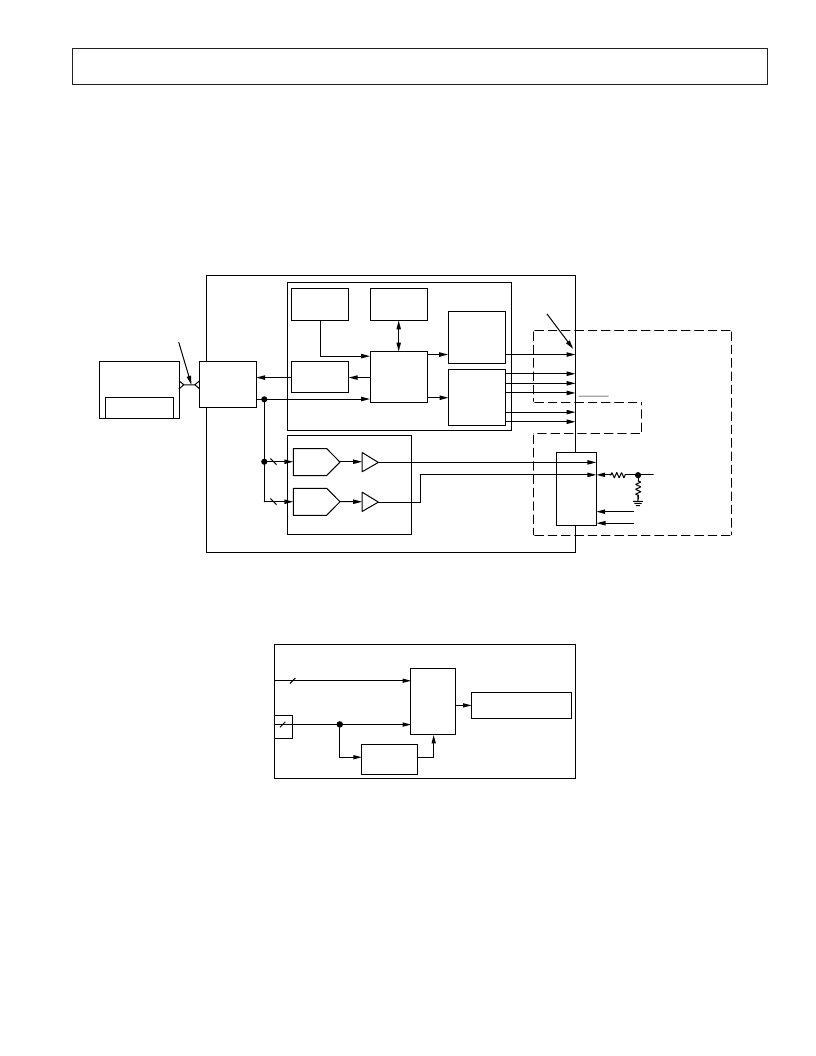

Figure 10. LDD Resource Board Block Diagram
AD9661A
DUMMY LOAD CIRCUIT/
LASER DIODE SOCKET
OPTIONAL
LEVEL SHIFT
CIRCUIT
AD9661A
EVALUATION BOARD
20
5
INPUT SMB CONNECTORS
FOR DIGITAL CONTROLS
20-PIN HEADER
FOR ANALOG
CONTROLS
Figure 11. Evaluation Board Block Diagram
40MHz
CLOCK
OSCILLATOR
32K x 16
MEMORY
OUTPUT
SMB
CONNECTORS
ADDRESS
COUNTER
AND
RESOURCE
CONTROLLER
READBACK
LATCH
DIGITAL PATTERN GENERATOR
CENTRONICS
CONNECTOR
P1
STANDARD PARALLEL
PRINTER CABLE
IBM-COMPATIBLE
PC
WITH WINDOWS
PARALLEL
PRINTER PORT
8
8
X1
X1
0–2.55V
0–2.55V
ANALOG REFERENCE
LASER DIODE DRIVER RESOURCE BOARD
J4
J5
J7
J8
J6
J2
CAL
(JCALB)
DISABLE (JDIS)
PULSE2
(JPULB)
UNUSED
TRIGGER
PULSE1 (JPUL)
20-PIN
HEADER
J3
12
11
R9
R8
AD9661A
LEVEL SHIFT IN
+5V POWER SUPPLY
GROUND
17–20
1–10
EXTERNAL LEVEL SHIFT CIRCUIT
PULSE
WIDTH
MODULATOR
(AD9560)
OUTPUT
BUFFER
INTERFACE TO
AD9661A
EVALUATION
BOARD
DAC 1
DAC 2
