REV. 0
ADD8502
–14–
LOGIC LEVEL
TRANSLATOR
LOGIC LEVEL
TRANSLATOR
LOGIC LEVEL
TRANSLATOR
LOGIC LEVEL
TRANSLATOR
LOGIC LEVEL
TRANSLATOR
LOGIC LEVEL
TRANSLATOR
LOGIC LEVEL
TRANSLATOR
LOGIC LEVEL
TRANSLATOR
LOGIC LEVEL
TRANSLATOR
LOGIC LEVEL
TRANSLATOR
ADD8502
CORE
V0
V1
V2
V3
V4
COM
COM_M
D
IN
SCK
CS-LD
PSK
GS1
GS2
REV1
REV2
CM
CV4
GND
V
L
V
DD
V
L
V
DD

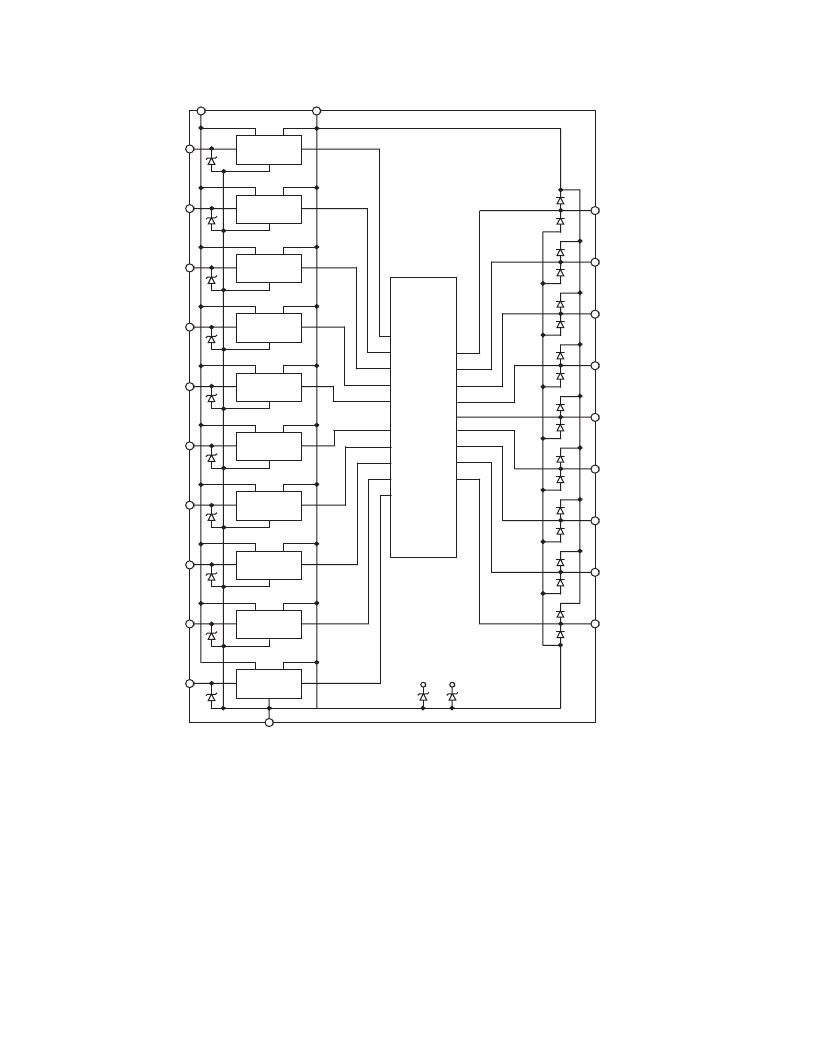

Figure 5. CST ESD and Logic Level Translation Scheme
ADD8502 Description
The ADD8502 uses logic level translators to convert external
logic levels to levels suitable for use in the ADD8502 core.
The logic level translators are intended to be powered from
the same supply voltage as is used to power the external
logic driving the ADD8502.
V
DD
may be powered down while normal voltages are present
on the V
L
and logic input pins.
V
DD
and V
L
are independent and can be in the range 0 V to
5.5 V.
No damage to the digital inputs will occur with applied
voltages up to 7 V (see Absolute Maximum Ratings section
of data sheet).
No current will flow between V
DD
and V
L
under normal
operating conditions.
Logic voltages can be present on the logic input pins even if
V
L
is powered down. Inputs are limited by max supply rating
of 7 V.
Digital input pins have ESD protection connected to GND.
All other input and output pins have ESD protection connected
to GND and V
DD.
