ADV7150
–8–
REV. A
RECOMMENDEDOPERATINGCONDITION
Parameter
Symbol
Min
T yp
Max
Units
Power Supply
Ambient Operating T emperature
Reference Voltage
Output Load
V
AA
T
A
V
REF
R
L
4.75
0
1.14
5.00
5.25
+70
1.26
Volts
°
C
Volts
1.235
37.5
WARNING!
ESD SENSITIVE DEVICE
C AUT ION
ESD (electrostatic discharge) sensitive device. Electrostatic charges as high as 4000 V readily
accumulate on the human body and test equipment and can discharge without detection.
Although the ADV7150 features proprietary ESD protection circuitry, permanent damage may
occur on devices subjected to high energy electrostatic discharges. T herefore, proper ESD
precautions are recommended to avoid performance degradation or loss of functionality.
ABSOLUT E MAX IMUM RAT INGS
1
V
AA
to GND . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 V
Voltage on Any Digital Pin . . . . GND – 0.5 V to V
AA
+ 0.5 V
Ambient Operating T emperature (T
A
) . . . . –55
°
C to +125
°
C
Storage T emperature (T
S
) . . . . . . . . . . . . . . –65
°
C to +150
°
C
Junction T emperature (T
J
) . . . . . . . . . . . . . . . . . . . . .+150
°
C
Lead T emperature (Soldering, 10 secs) . . . . . . . . . . . .+260
°
C
Vapor Phase Soldering (1 minute) . . . . . . . . . . . . . . . .+220
°
C
Analog Outputs to GND
2
. . . . . . . . . . . . . GND – 0.5 to V
AA
NOT ES
1
Stresses above those listed under Absolute Maximum Ratings may cause perma-
nent damage to the device. T his is a stress rating only; functional operation of the
device at these or any other conditions above those listed in the operational sections
of this specification is not implied. Exposure to absolute maximum rating condi-
tions for extended periods may affect device reliability.
2
Analog Output Short Circuit to any Power Supply or Common can be of an
indefinite duration.
ORDE RING GUIDE
1, 2, 3
Speed
220 MHz
170 MHz
135 MHz
ADV7150LS220
ADV7150LS170
ADV7150LS135
110 MHz
85 MHz
ADV7150LS110
ADV7150LS85
NOT ES
1
ADV7150 is packaged in a 160-pin plastic quad flatpack, QFP.
2
All devices are specified for 0
°
C to +70
°
C operation.
3
Contact sales office for latest information on package design.
16-Lead QFP Configuration
ROW D
PIN NO. 1
IDENTIFIER
R
R
ADV7150 QFP
TOP VIEW
(NOT TO SCALE)
ROW B
160
121
41
80
1
40
120
81
t
19
t
20
VALID
CONTROL DATA
t
21
t
22
t
23
t
26
t
25
t
27
D0–D9
(READ MODE)
D0–D9
(WRITE MODE)
CE
R/W, C0, C1
R/W = 1
R/W = 0
t
24

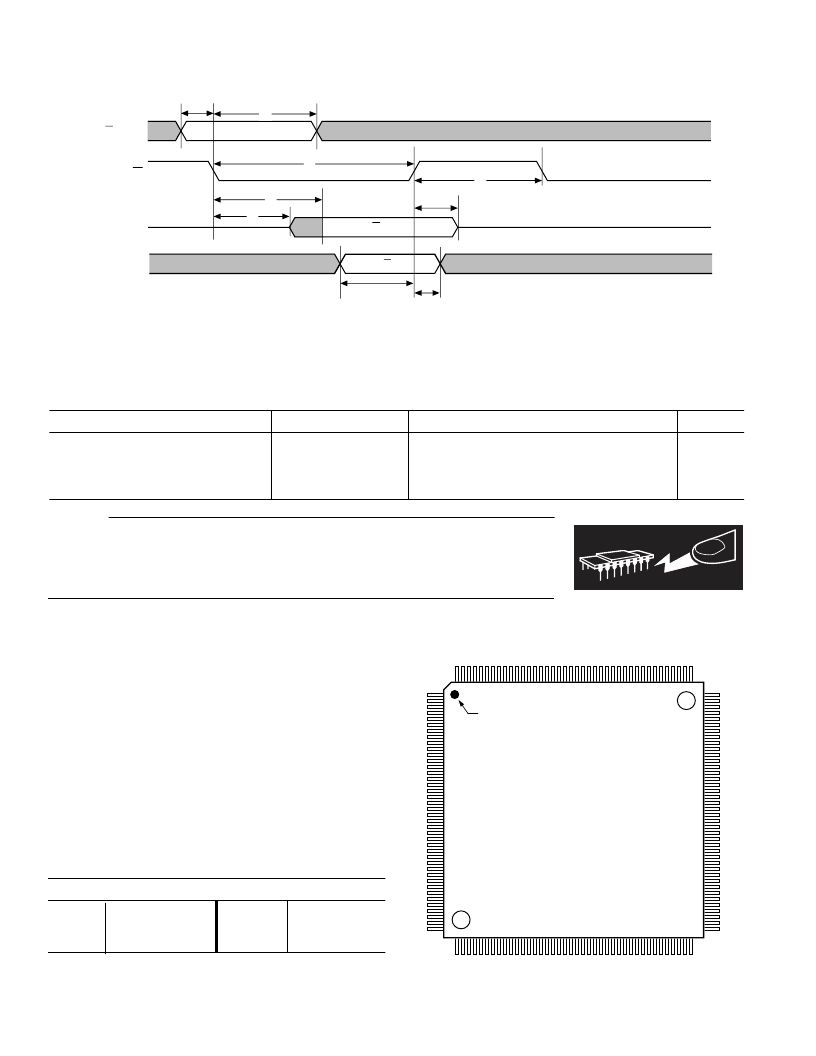

Figure 11. Microprocessor Port (MPU) Interface Timing
