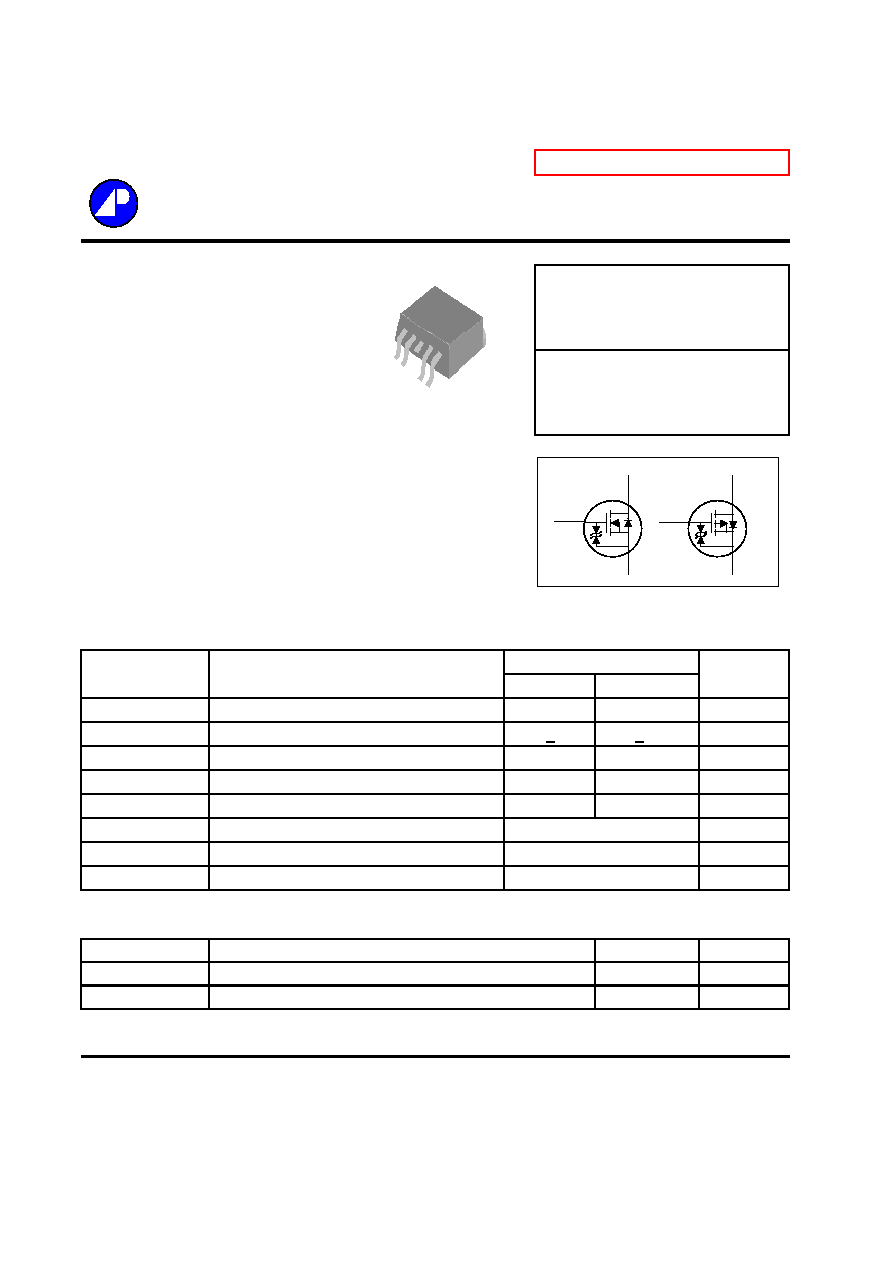

AP4543GEH-HF
Advanced Power
N AND P-CHANNEL ENHANCEMENT
Electronics Corp.
MODE POWER MOSFET
▼ Simple Drive Requirement
N-CH BVDSS
40V
▼ Good Thermal Performance
RDS(ON)
24mΩ
▼ Fast Switching Performance
ID
8.7A
▼ RoHS Compliant & Halogen-Free
P-CH BVDSS
-40V
RDS(ON)
40m
Description
ID
-7A
Absolute Maximum Ratings
Symbol
Parameter
Rating
Units
N-channel
P-channel
VDS
Drain-Source Voltage
40
-40
V
VGS
Gate-Source Voltage
+20
V
ID@TA=25℃
Continuous Drain Current
3
8.7
-7.0
A
ID@TA=70℃
Continuous Drain Current
3
7.0
-5.6
A
IDM
Pulsed Drain Current
1
30
-30
A
PD@TA=25℃
Total Power Dissipation
W
TSTG
Storage Temperature Range
-55 to 150
℃
TJ
Operating Junction Temperature Range
-55 to 150
℃
Symbol
Value
Unit
Rthj-c
Maximum Thermal Resistance, Junction-case
6
℃
/W
Rthj-a
Maximum Thermal Resistance, Junction-ambient
3
40
℃
/W
Data and specifications subject to change without notice
200909042
1
Parameter
Thermal Data
3.13
Halogen-Free Product
Advanced Power MOSFETs from APEC provide the
designer with the best combination of fast switching,
ruggedized device design, low on-resistance and
cost-effectiveness.
S1
TO-252-4L
G1
S2
G2
D1/D2
S1
G1
D1
S2
G2
D2
