參數資料
| 型號： | AP4800CGM-HF |
| 廠商： | ADVANCED POWER ELECTRONICS CORP |
| 元件分類： | JFETs |
| 英文描述： | 30 V, 0.014 ohm, N-CHANNEL, Si, POWER, MOSFET |
| 封裝： | HALOGEN FREE AND ROHS COMPLIANT, SOP-8 |
| 文件頁數： | 1/4頁 |
| 文件大小： | 57K |
| 代理商： | AP4800CGM-HF |

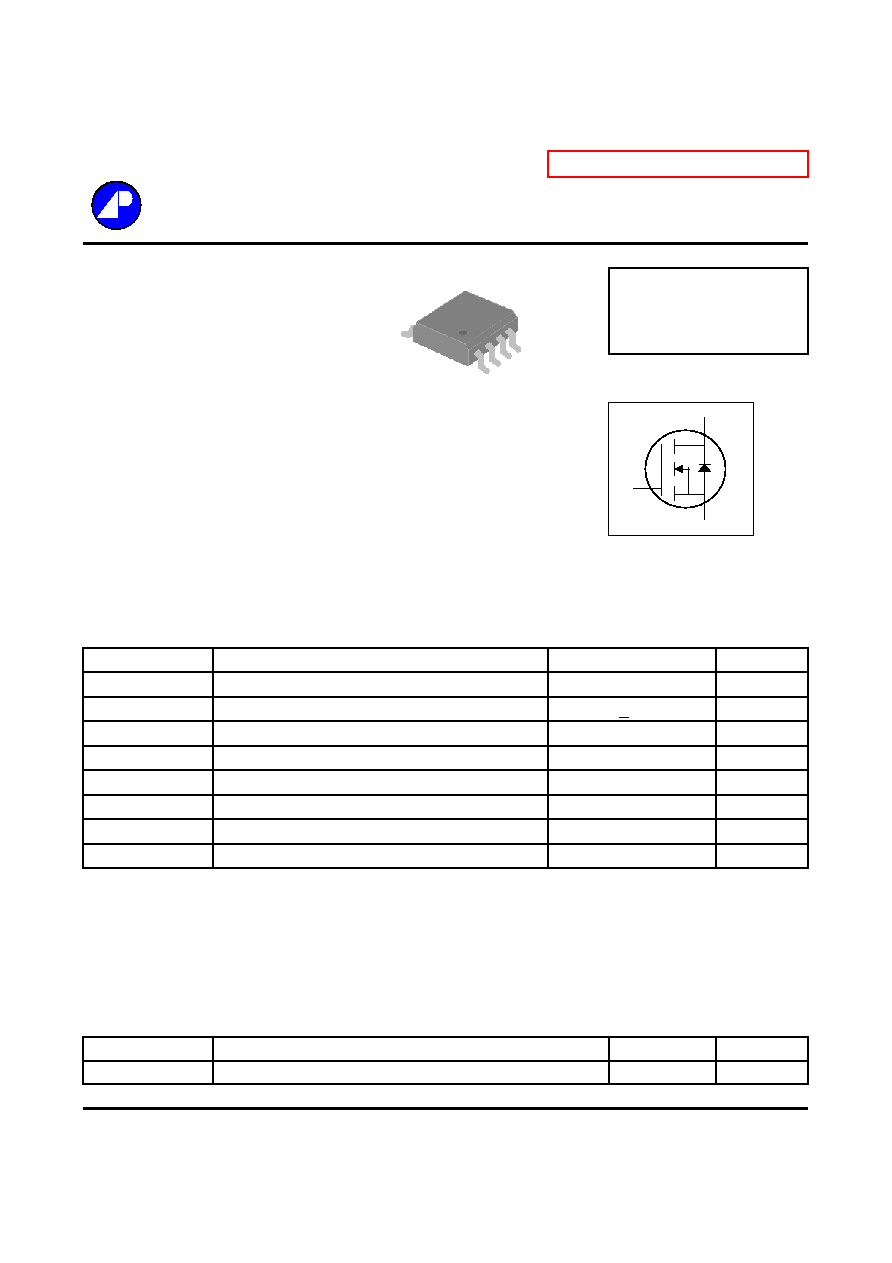

Advanced Power
N-CHANNEL ENHANCEMENT MODE
Electronics Corp.
POWER MOSFET
▼ Lower Gate Charge
BVDSS
30V
▼ Simple Drive Requirement
RDS(ON)
14mΩ
▼ Fast Switching Characteristic
ID
10.4A
▼ RoHS Compliant & Halogen-Free
Description
Absolute Maximum Ratings
Symbol
Units
VDS
V
VGS
V
ID@TA=25℃
A
ID@TA=70℃
A
IDM
A
PD@TA=25℃
W
TSTG
℃
TJ
℃
Symbol
Value
Unit
Rthj-a
Maximum Thermal Resistance, Junction-ambient
3
50
℃/W
Data and specifications subject to change without notice
200912082
1
AP4800CGM-HF
Rating
30
+20
10.4
Parameter
Drain-Source Voltage
Gate-Source Voltage
Continuous Drain Current
3
Storage Temperature Range
Continuous Drain Current
3
8.4
Pulsed Drain Current
1
40
Halogen-Free Product
Thermal Data
Parameter
Total Power Dissipation
2.5
-55 to 150
Operating Junction Temperature Range
-55 to 150
Advanced Power MOSFETs from APEC provide the
designer with the best combination of fast switching,
ruggedized device design, low on-resistance and cost-effectiveness.
The SO-8 package is widely preferred for commercial-industrial
surface mount applications and suited for low voltage applications
such as DC/DC converters.
S
G
D
SO-8
G
D
S
