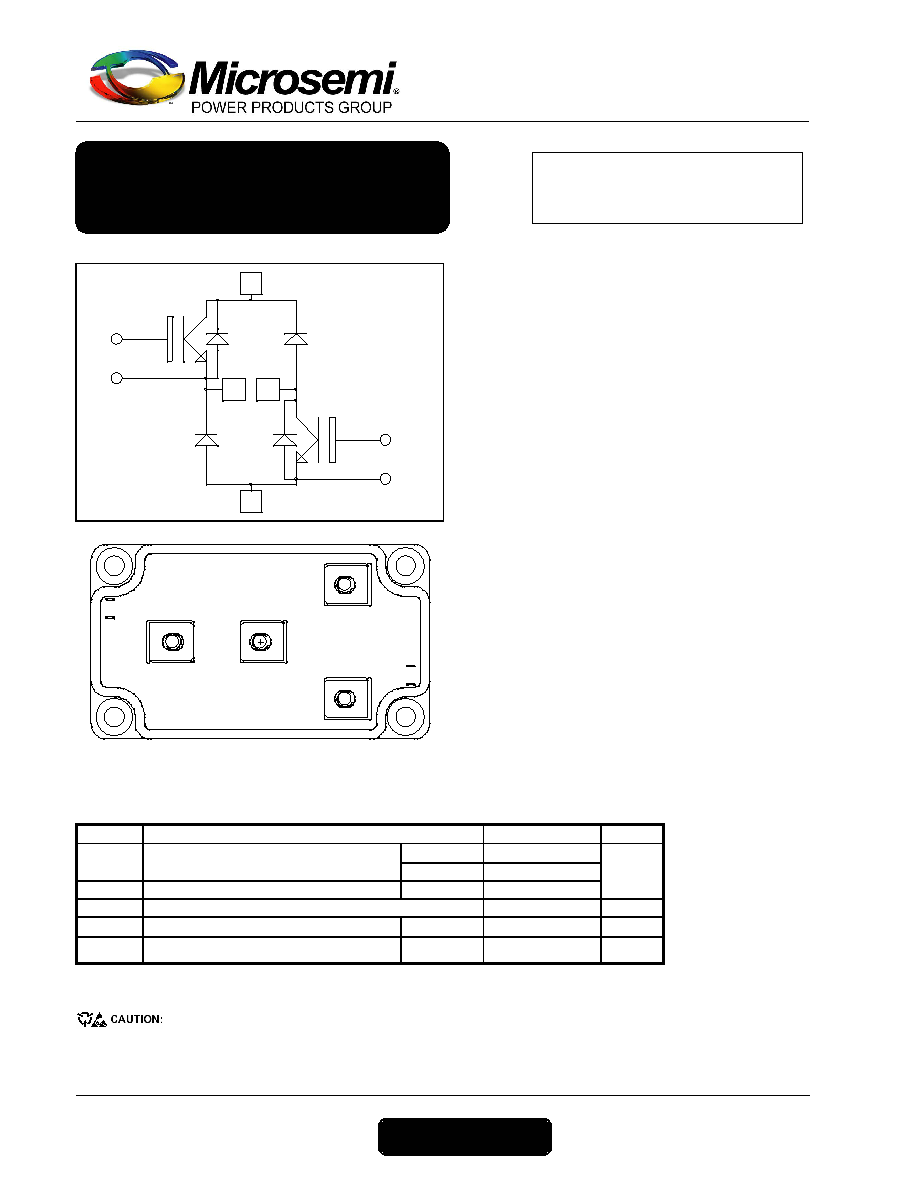

APTGF180DH60G
A
P
T
G
F
180
D
H
60
G
–
R
ev
2
J
ul
y,
2006
www.microsemi.com
1 - 6
Absolute maximum ratings
Symbol
Parameter
Max ratings
Unit
VCES
Collector - Emitter Breakdown Voltage
600
V
Tc = 25°C
220
IC
Continuous Collector Current
Tc = 80°C
180
ICM
Pulsed Collector Current
Tc = 25°C
630
A
VGE
Gate – Emitter Voltage
±20
V
PD
Maximum Power Dissipation
Tc = 25°C
833
W
RBSOA
Reverse Bias Safe Operating Area
Tj = 150°C
400A @ 600V
These Devices are sensitive to Electrostatic Discharge. Proper Handing Procedures Should Be Followed. See application note
APT0502 on www.microsemi.com
VBUS
OUT2
CR3
0/VBUS
E4
Q4
G4
OUT1
CR2
Q1
G1
E1
G4
E4
VBUS
G1
E1
0/VBUS
OUT2
OUT1
VCES = 600V
IC = 180A @ Tc = 80°C
Application
Welding converters
Switched Mode Power Supplies
Switched Reluctance Motor Drives
Features
Non Punch Through (NPT) Fast IGBT
-
Low voltage drop
-
Low tail current
-
Switching frequency up to 100 kHz
-
Soft recovery parallel diodes
-
Low diode VF
-
Low leakage current
-
Avalanche energy rated
-
RBSOA and SCSOA rated
Kelvin emitter for easy drive
Very low stray inductance
-
Symmetrical design
-
M5 power connectors
High level of integration
Benefits
Outstanding performance at high frequency
operation
Stable temperature behavior
Very rugged
Direct mounting to heatsink (isolated package)
Low junction to case thermal resistance
Easy paralleling due to positive TC of VCEsat
Low profile
RoHS compliant
Asymmetrical - bridge
NPT IGBT Power Module
