型號: FAN5038M
廠商: FAIRCHILD SEMICONDUCTOR CORP
元件分類: 穩壓器
英文描述: Current-Mode SMPS Controller
中文描述: SWITCHING CONTROLLER, PDSO16
封裝: SOIC-16
文件頁數: 1/15頁
文件大小: 84K
代理商: FAN5038M
www.fairchildsemi.com
REV. 1.0.2 7/6/00
Features
Provides complete, low-cost core and I/O power in single
chip
I/O power sequencing
Core voltage adjustable from 1.5V to 3.6V
Independent adjustable current limits
Core up to 13A, I/O up to 5A
Precision trimmed low TC voltage reference
Constant On-Time oscillator
Small footprint 16 lead SOIC package
Applications
High efficiency low-cost power for DSPs
Power for ASICs and FPGAs
Programmable dual power supply for high current loads
Description
The FAN5038 provides a complete low-cost power system
for DSPs and other loads requiring high-performance. The
FAN5038 combines an adjustable switch-mode DC-DC
converter for core power with a low-dropout linear regulator
for I/O power in a space-saving SO-16 package. Simple
external circuitry provides power sequencing and indepen-
dent current limits. An internal precision voltage reference
allows the switcher to be adjusted from 1.5V to 3.6V. With
the appropriate external components, the FAN5038 can
deliver core power up to 13A, and I/O power up to 5A,
allowing multiple DSPs to be powered with a single device.

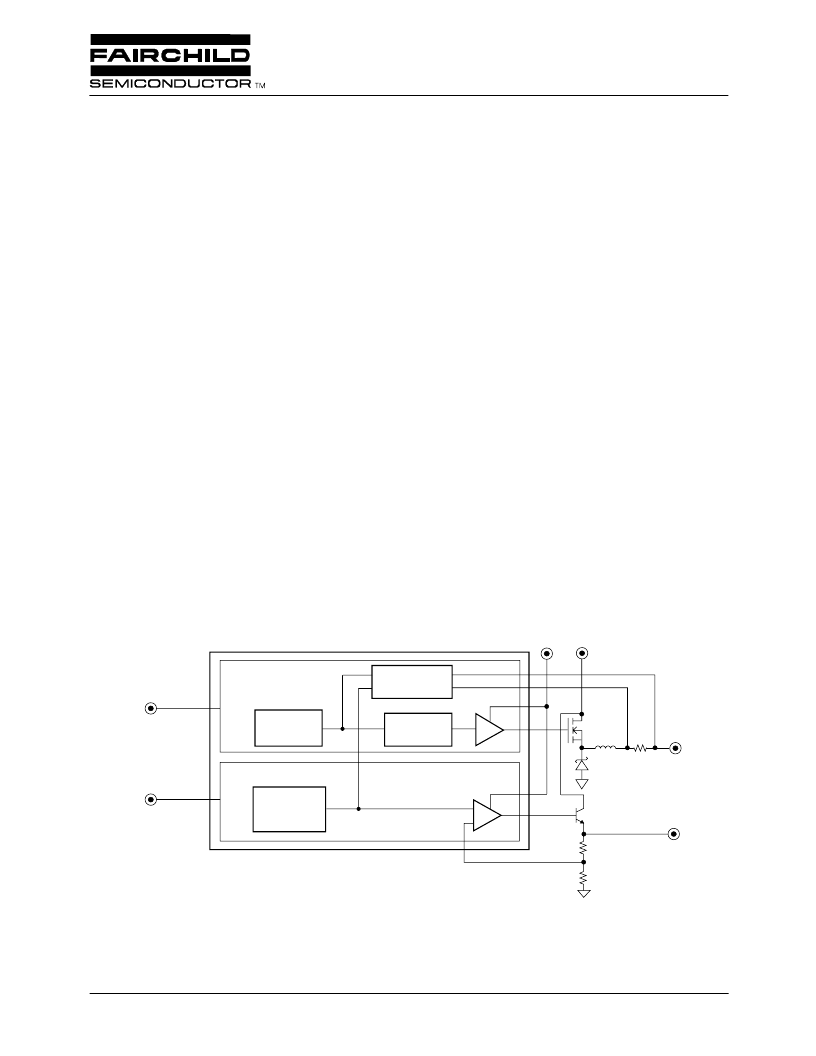

Block Diagram
FAN5038
+
Linear
Enable
Switcher
Select
Feedback
Control
Oscillator
Digital
Logic
Switching
Regulator
Linear Regulator
Core
I/O
1.5V
Reference
+12V
+5V
FAN5038
Dual Voltage Controller for DS P Power
