www.fairchildsemi.com
Pentium is a registered trademark of Intel Corporation. Programmable Active Droop is a trademark of Fairchild Semiconductor.
Rev. 1.0.4
Features
P
rogrammable output for Vcore from 1.3V to 3.5V using
an integrated 5-bit DAC
Controls adjustable linears for Vagp (selectable 1.5V/3.3V),
Vclock (2.5V), and Vtt (1.5V) or Vnorthbridge (1.8V)
Meets VRM specification with as few as 5 capacitors
Meets 1.550V +40/-70mV over initial tolerance,
temperature and transients
Remote sense
Programmable Active Droop (Voltage Positioning)
Drives N-Channel MOSFETs
Overcurrent protection using MOSFET sensing
85% efficiency typical at full load
Integrated Power Good and Enable/Soft Start functions
24 pin SOIC package
Applications
Power supply for Pentium
Power supply for Pentium III Whitney Platform
VRM for Pentium III processor
Programmable multi-output power supply
III Camino Platform
Description
The FAN5059 is a synchronous mode DC-DC controller IC
which provides a highly accurate, programmable set of output
voltages for multi-voltage platforms such as the Intel Camino,
and provides a complete solution for the Intel Whitney and other
high-performance processors. The FAN5059 features remote
voltage sensing, independently adjustable current limit, and a
proprietary Programmable Active Droop
transient response. The FAN5059 uses a 5-bit D/A converter
to program the output voltage from 1.3V to 3.5V. The
FAN5059 uses a high level of integration to deliver load
for optimal converter

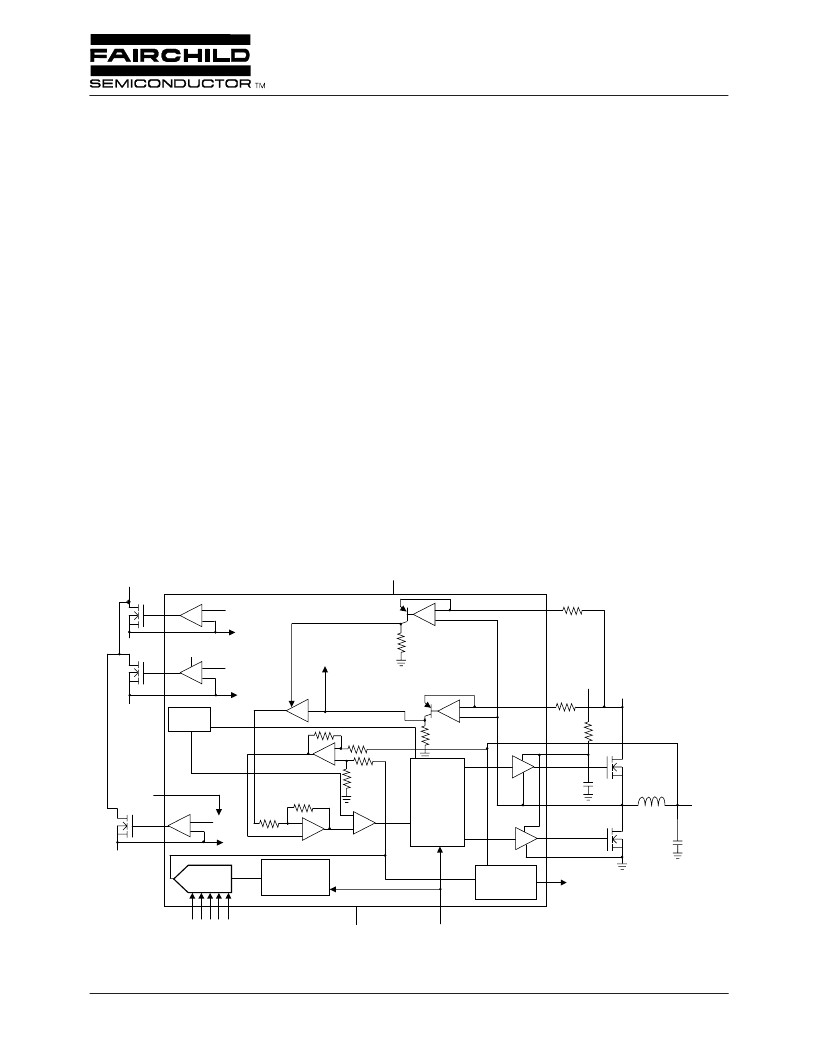

Block Diagram
VID3
VID2
VID1
16
VID0
GNDP
23
22
2
18
24
1
17
-
+
-
+
OSC
1.24V
Reference
Digital
Control
Power
Good
5-Bit
DAC
VID4
8 7 6 5 4
+5V
+12V
PWRGD
-
+
ENABLE/SS
VCC
GNDA
3
LODRV
HIDRV
VCCP
21
VCCA
+5V
20
-
REF
REF
PWRGD,
OCL
PWRGD,
OCL
+3.3V
+1.5V
10
9
+2.5V
12
11
19
OCL
-
+
VCCP
PWRGD, OCL
V
3.3/1.5V
15
14
13
R
D
R
S
-
+
+
-
+
-
+
FAN5059
High Performance Programmable Synchronous
DC-DC Controller for Multi-Voltage Platforms
