FAN8400D (FAN8400BD3)
10
5. FG AMP & FG Schmidt Comparator Block
This block measures of motor rotation speed and controls motor speed.
It is determined FG AMP gain and filter by external component.
FG schmidt block change sine wave form to square wave form

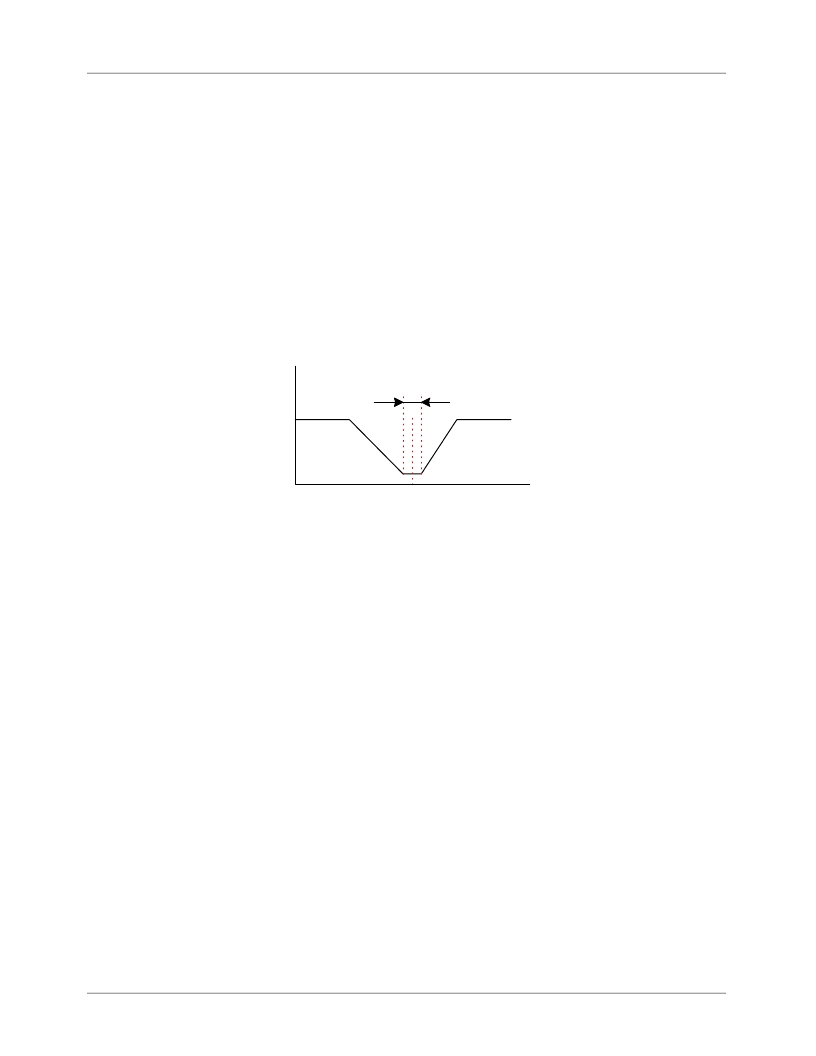

6. Error AMP Block
It composes of dumping filter and ripple filter by external component.
It determines output amplitude of error AMP by width error pulse.
It is determined output current by output amplitude of error AMP.
Bidirectional torque control
7. Regulator Block
Power supply of control circuits in inside.
Band gap reference circuits.
8. Lock Detector
It is low when FG frequency reaches capture range of clock frequency.
Open correct
9. FG Pulse Output
Monitoring pin for motor rotative speed
Open correct
10. Stop And Start
Stop mode: Open or high voltage
Start mode: Low voltage
V
DZ
Reverse
Direction
Forward
Direction
V
RF
V
EO
V
REG
/2
