2000 Fairchild Semiconductor International
www.fairchildsemi.com
Rev. 1.0.0
February. 2000.
1
Features
Commutation FG, PG is executed by 1-hall
Soft switching at output terminal reduces
switching impulse.
3-phase full wave BLDC motor driver.
Voltage reference (Uses band gap circuit)
Built-in thermal shut-down (TSD) circuit
Description

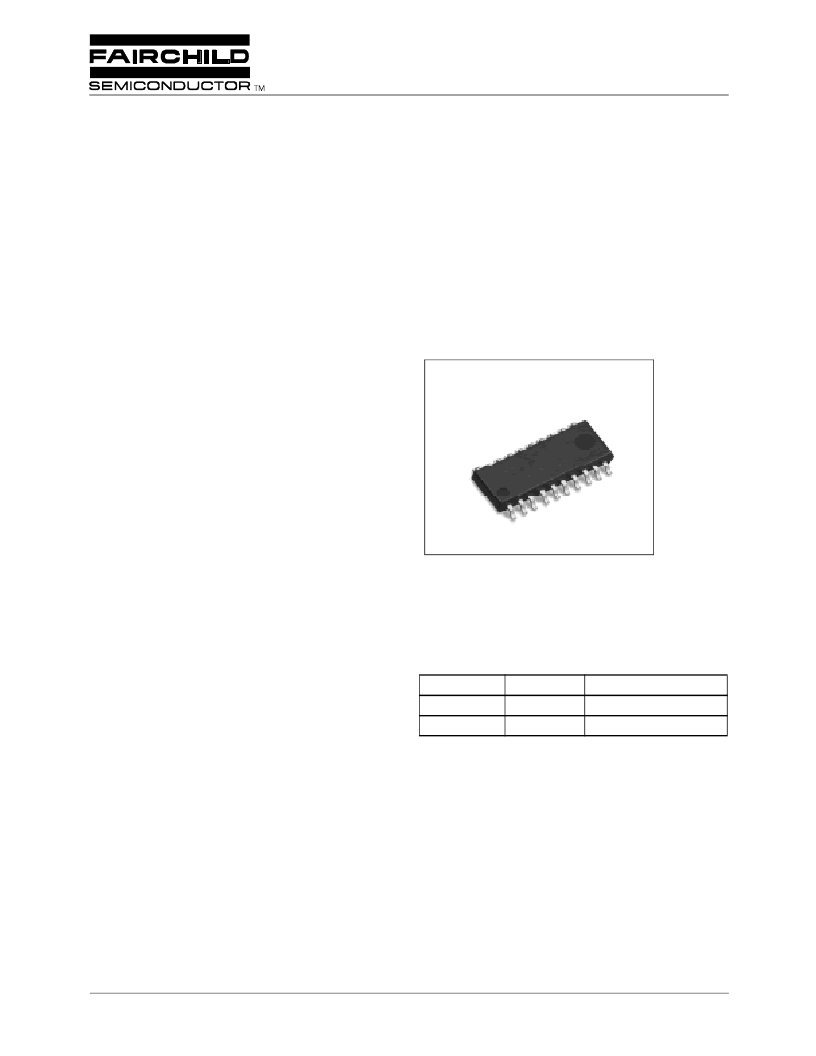

FAN8402D is a bipolar integrated circuit used to drive 3-
phase brushless DC motor in full wave mode using 1-hall
sensor. FAN8402D uses 1-hall for commutation and PG gen-
eration. It is a special circuit for soft switching using 1-hall
reduces the EMI and eliminates snubber. The FG is gener-
ated by BEMF.
20-SOP-300
Typical Applications
Video Cassette recorder (VCR) cylinder (drum) motor
Other 3-phase BLDC motor
Ordering Information
Device
FAN8402D
FAN8402DTF 20-SOP-300
Package
20-SOP-300
Operating Temp.
25
°
C ~ +75
°
C
25
°
C ~ +75
°
C
FAN8402D (KA3081D)
3-Phase BLDC Motor Driver
