| 型號： | FAN8420D3 |
| 廠商： | FAIRCHILD SEMICONDUCTOR CORP |
| 元件分類： | 運動控制電子 |
| 英文描述： | 3-Phase BLDC Motor Driver |
| 中文描述： | BRUSHLESS DC MOTOR CONTROLLER, 1.3 A, PDSO30 |
| 封裝： | 0.375 INCH, HEAT SINK, SSOP-28 |
| 文件頁數： | 1/18頁 |
| 文件大小： | 252K |
| 代理商： | FAN8420D3 |
2000 Fairchild Semiconductor International
www.fairchildsemi.com
Rev. 1.0.1
Oct. 2000.

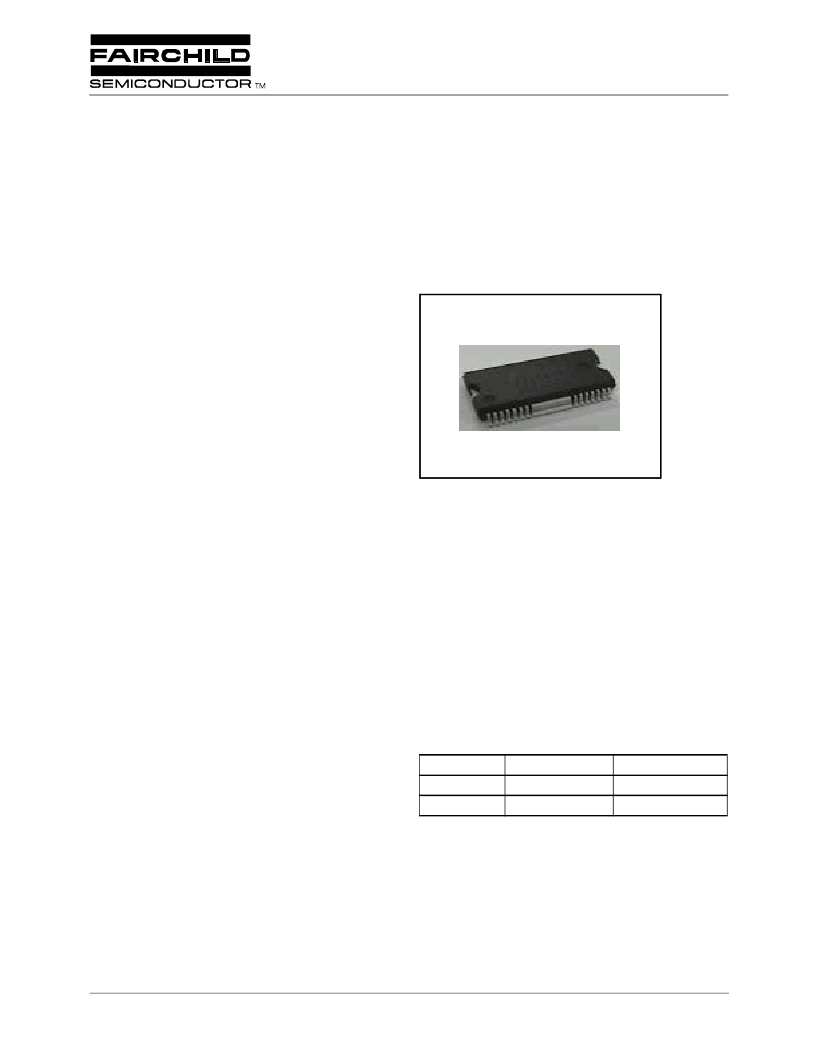

Features
3-phase, full-wave, linear BLDC motor driver
Power save at stop mode
Built-in current limiter
Built-in TSD (Thermal shutdown) circuit
Built-in 3X and 1X hall FG output
Built-in hall bias circuit
Built-in rotational direction detector
Built-in reverse rotation preventer
Built-in short braker
Corresponds to 3.3V DSP
Description
The FAN8420D3 is a monolithic IC, suitable for a 3-phase
spindle motor driver of a CD-media system.
28-SSOPH-375SG2
Typical Applications
Compact disk ROM (CD-ROM) spindle motor
Compact disk RW (CD-RW) spindle motor
Digital video disk ROM (DVD-ROM) spindle motor
Digital video disk RAM (DVD-RAM) spindle motor
Digital video disk Player (DVDP) spindle motor
Other compact disk media spindle motor
Other 3-phase BLDC motor
Ordering Information
Device
FAN8420D3
Package
28-SSOPH-375SG2
Operating Temp.
25
°
C ~ +75
°
C
25
°
C ~ +75
°
C
FAN8420D3TF 28-SSOPH-375SG2
FAN8420D3
3-Phase BLDC Motor Driver
相關PDF資料 |
PDF描述 |
|---|---|
| FAN8420D | 3-Phase BLDC Motor Driver(三相無刷直流電機驅動器) |
| FAN8422G | Floppy Disk Drive Spindle Motor Driver |
| FAN8423D3TF | 3-Phase BLDC Motor Driver |
| FAN8423D3 | 3-Phase BLDC Motor Driver |
| FAN8423D | 3-Phase BLDC Motor Driver(三相無刷直流電機驅動器) |
相關代理商/技術參數 |
參數描述 |
|---|---|
| FAN8420D3TF | 功能描述:馬達/運動/點火控制器和驅動器 BLDC Motor Driver 3Phse 3.3V Interface RoHS:否 制造商:STMicroelectronics 產品:Stepper Motor Controllers / Drivers 類型:2 Phase Stepper Motor Driver 工作電源電壓:8 V to 45 V 電源電流:0.5 mA 工作溫度:- 25 C to + 125 C 安裝風格:SMD/SMT 封裝 / 箱體:HTSSOP-28 封裝:Tube |
| FAN8420DTF | 制造商:未知廠家 制造商全稱:未知廠家 功能描述:DC Motor Controller/Driver |
| FAN8422G | 功能描述:馬達/運動/點火控制器和驅動器 BLDC Motor Driver 3 Phase RoHS:否 制造商:STMicroelectronics 產品:Stepper Motor Controllers / Drivers 類型:2 Phase Stepper Motor Driver 工作電源電壓:8 V to 45 V 電源電流:0.5 mA 工作溫度:- 25 C to + 125 C 安裝風格:SMD/SMT 封裝 / 箱體:HTSSOP-28 封裝:Tube |
| FAN8423D | 制造商:未知廠家 制造商全稱:未知廠家 功能描述:DC Motor Controller/Driver |
| FAN8423D3 | 功能描述:馬達/運動/點火控制器和驅動器 BLDC Motor Driver 3Phase 5V Interface RoHS:否 制造商:STMicroelectronics 產品:Stepper Motor Controllers / Drivers 類型:2 Phase Stepper Motor Driver 工作電源電壓:8 V to 45 V 電源電流:0.5 mA 工作溫度:- 25 C to + 125 C 安裝風格:SMD/SMT 封裝 / 箱體:HTSSOP-28 封裝:Tube |
