| 型號： | FDD10AN06A0 |
| 廠商： | FAIRCHILD SEMICONDUCTOR CORP |
| 元件分類： | JFETs |
| 英文描述： | N-Channel PowerTrench MOSFET 60V, 50A, 10.5mз |
| 中文描述： | 11 A, 60 V, 0.0105 ohm, N-CHANNEL, Si, POWER, MOSFET, TO-252AA |
| 封裝： | TO-252AA, 3 PIN |
| 文件頁數： | 10/11頁 |
| 文件大小： | 236K |
| 代理商： | FDD10AN06A0 |
2002 Fairchild Semiconductor Corporation
FDD10AN06A0 Rev. A
F
SPICE Thermal Model
REV 23 July 2002
FDD10AN06A0T
CTHERM1 TH 6 3.2e-3
CTHERM2 6 5 3.3e-3
CTHERM3 5 4 3.4e-3
CTHERM4 4 3 3.5e-3
CTHERM5 3 2 6.4e-3
CTHERM6 2 TL 1.9e-2
RTHERM1 TH 6 5.5e-4
RTHERM2 6 5 5.0e-3
RTHERM3 5 4 4.5e-2
RTHERM4 4 3 1.5e-1
RTHERM5 3 2 3.37e-1
RTHERM6 2 TL 3.5e-1
SABER Thermal Model
SABER thermal model FDD10AN06A0T
template thermal_model th tl
thermal_c th, tl
{
ctherm.ctherm1 th 6 =3.2e-3
ctherm.ctherm2 6 5 =3.3e-3
ctherm.ctherm3 5 4 =3.4e-3
ctherm.ctherm4 4 3 =3.5e-3
ctherm.ctherm5 3 2 =6.4e-3
ctherm.ctherm6 2 tl =1.9e-2
rtherm.rtherm1 th 6 =5.5e-4
rtherm.rtherm2 6 5 =5.0e-3
rtherm.rtherm3 5 4 =4.5e-2
rtherm.rtherm4 4 3 =1.5e-1
rtherm.rtherm5 3 2 =3.37e-1
rtherm.rtherm6 2 tl =3.5e-1
}

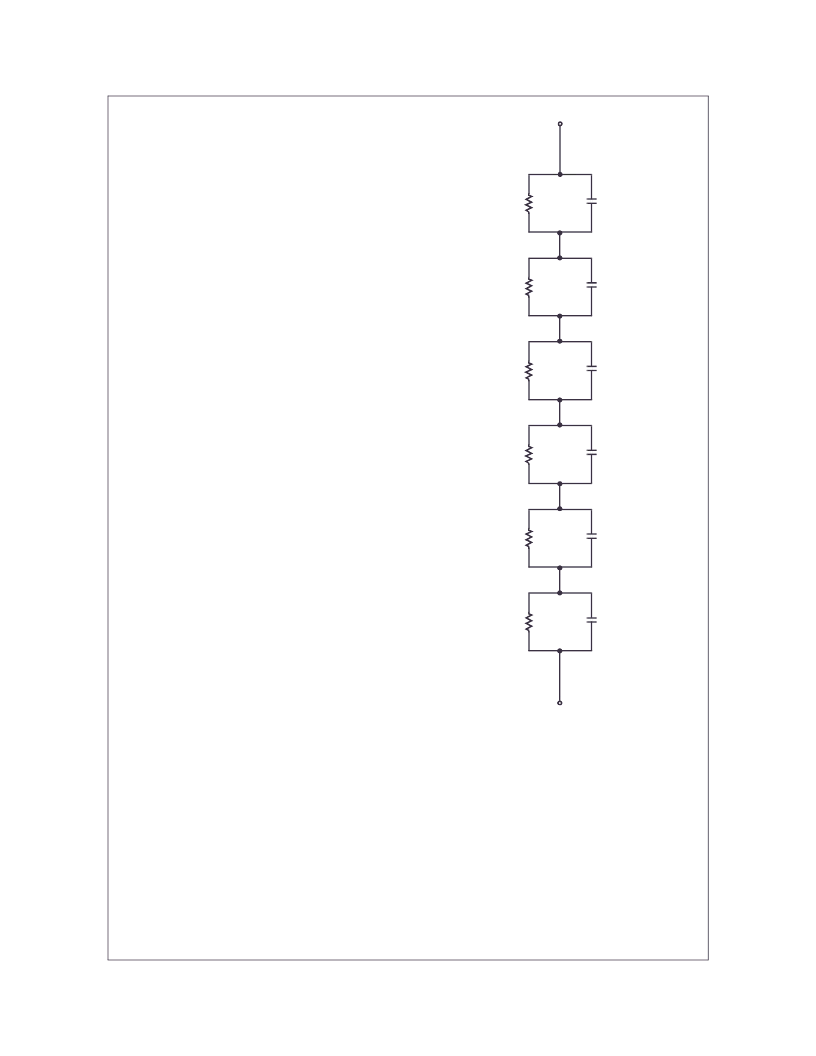

RTHERM4
RTHERM6
RTHERM5
RTHERM3
RTHERM2
RTHERM1
CTHERM4
CTHERM6
CTHERM5
CTHERM3
CTHERM2
CTHERM1
tl
2
3
4
5
6
th
JUNCTION
CASE
