| 型號： | L9949TR |
| 廠商： | STMICROELECTRONICS |
| 元件分類： | 運動控制電子 |
| 英文描述： | BRUSH DC MOTOR CONTROLLER, 10 A, PDSO20 |
| 封裝： | POWER, SO-20 |
| 文件頁數： | 1/22頁 |
| 文件大小： | 418K |
| 代理商： | L9949TR |

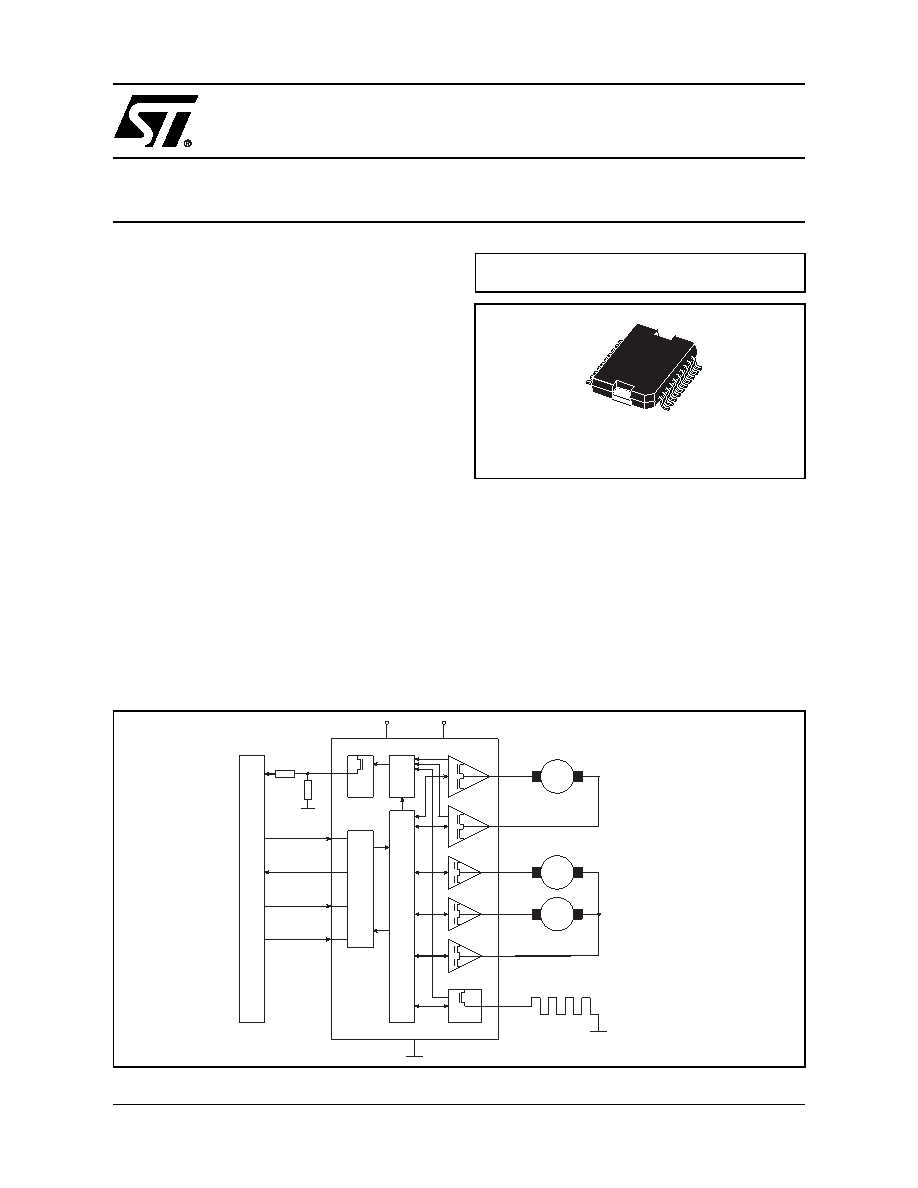

1/20
L9949
September 2002
s
ONE FULL BRIDGE FOR 6A LOAD (ron = 150m)
s
THREE HALF BRIDGES FOR 1.6A LOAD
(ron = 800m)
s
ONE HIGHSIDE DRIVER FOR 6A LOAD
(ron = 100m)
s
VERY LOW CURRENT CONSUMPTION IN
STANDBY MODE (IS < 6A, typ. Tj ≤ 85°C)
s
SERIAL PERIPHERAL INTERFACE (SPI) TO
MICROCONTROLLER
s
ALL OUTPUTS SHORT CIRCUIT PROTECTED
s
CURRENT MONITOR OUTPUT FOR FULL
BRIDGE AND HIGHSIDE DRIVER
s
ALL OUTPUTS OVER TEMPERATURE
PROTECTED
s
OPEN LOAD DIAGNOSTIC FOR ALL OUTPUTS
s
OVERLOAD DIAGNOSTIC FOR ALL OUTPUTS
APPLICATIONS
s
FOR AUTOMOTIVE APPLICATIONS, E.G.
FULL BRIDGE FOR DOOR LATCH OR
MIRROR RETRACT, HALF BRIDGES FOR
MIRROR AXIS CONTROL AND HIGH-SIDE
DRIVER FOR MIRROR DEFROSTER
DESCRIPTION
The L9949 is a microprocessor controlled power in-
terface for automotive applications. It is realized in
multipower BCD60III technology. Up to three DC mo-
PowerSO20
ORDERING NUMBER: L9949
DOOR ACTUATOR DRIVER
MULTIPOWER BCD60III TECHNOLOGY
BLOCK DIAGRAM
OUT1
OUT2
OUT3
OUT4
OUT5
OUT6
SPI
Dr
iv
er
Interf
ace
&
Diagnostic
DI
DO
CLK
CSN
CM
Full bridge
Half bridge
Highside driver
C
M
Ground
e.g. for mirror retract
or door latch
e.g. for mirror
axis control
e.g. for mirror
defroster
MUX
V (battery)
S
V
CC
