LC749870LG
No.A1765-43/44
Other (usage precautions)
1. Precaution when turning-on the power

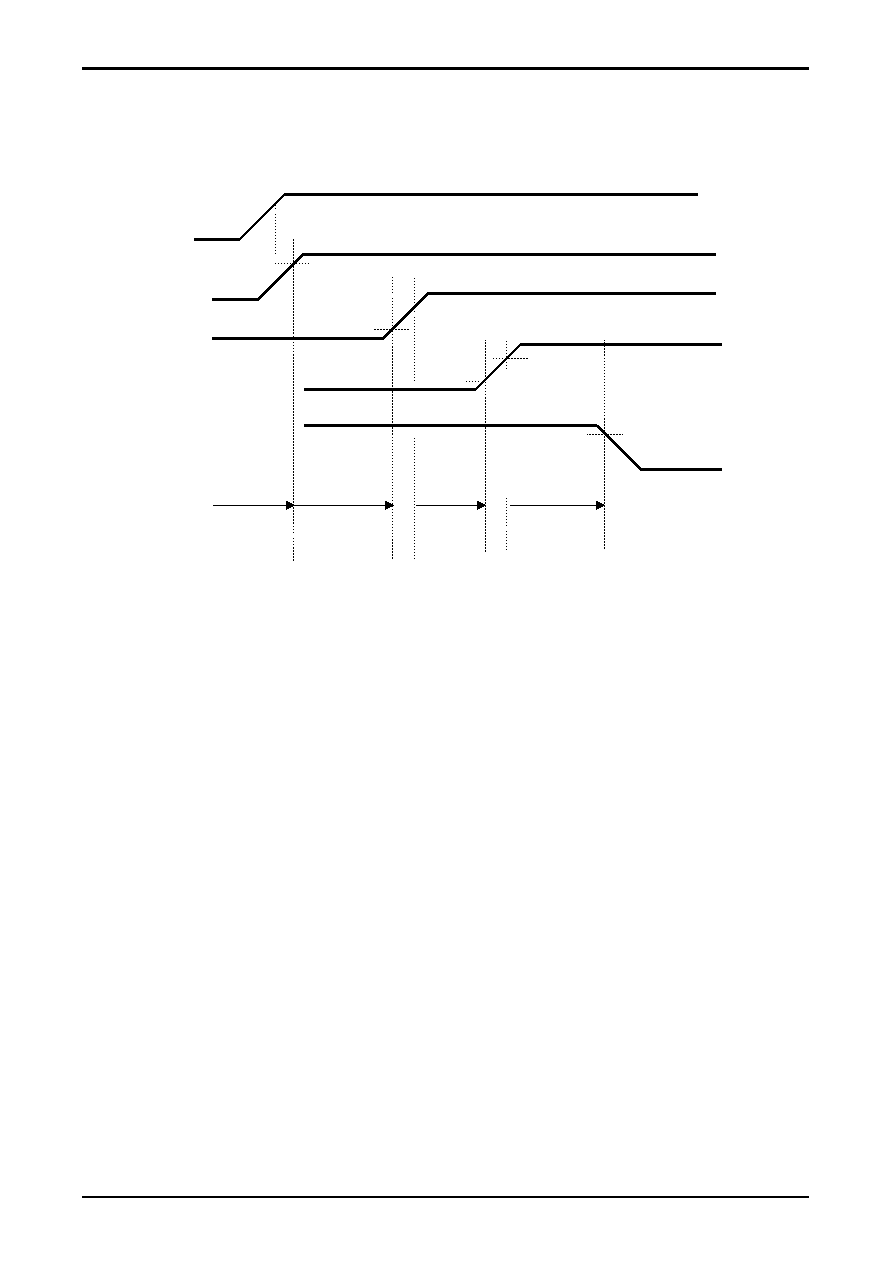

As shown in the figure below, start transfer of the I2C bus command after factoring in the power-on time (A), RST
operation time (B) and command transfer start time (C).
A: Power-on time
This is the time taken from power-on to when the *VDD11 operating voltage has reached the lowest level (0.99V)
and operation has stabilized. The power-on-time depends on the characteristics of the power ICs and other
components, so it must be checked separately.
With regard to *VDD33 and *VDD11, *VDD11 must be turned on after *VDD33 has turned on.
B: PDWN operation time
This is the time during which the “L” level must be applied continuously for a period of 10ms or more to the PDWN
pin after the lowest level (0.99V) of the *VDD11 operating supply voltage has been reached and operation has
stabilized.
C: RESET operation time
This is the time during which the “L” level must be applied continuously for a period of 10ms or more to the RESET
pin after the PDWN is released (“H” level).
D: Command transfer start time
At least an interval of 10ms is required from the time RESET pin is released (“H” level) to the start of command
transfer.
0.99V
0.2VDD
2V
0.75VDD
3.0V
DVDD33
XVDD33
AVDD33
DVDD11
XVDD11
PDWN
0.2VDD
2V
RESET
A
B
C
D
Command
