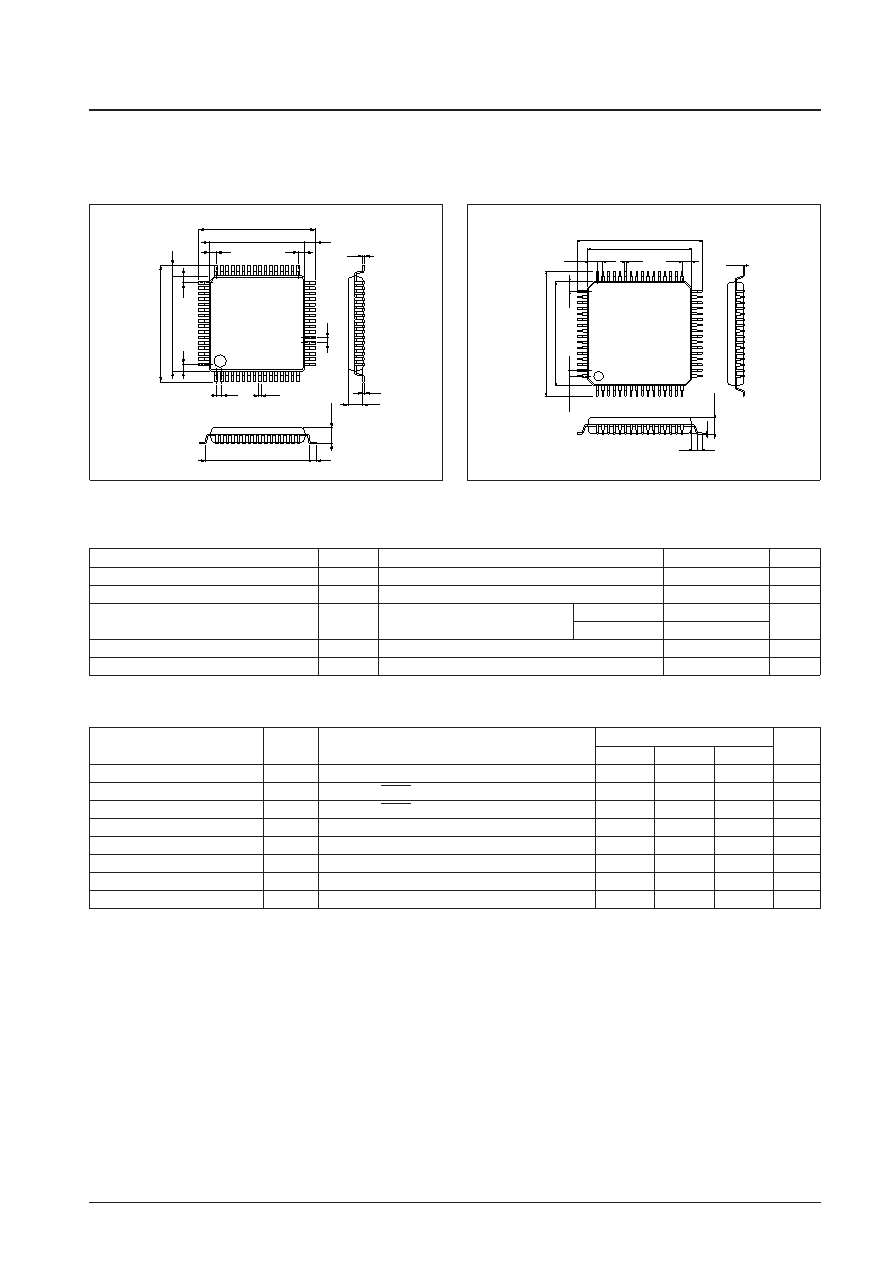

No.6169-2/25
LC75384NE-R, 75384NW
14.0
17.2
1.0
1.6
0.15
0.35
0.1
15.6
0.8
3.0max
1
16
17
32
33
48
49
64
2.7
14.0
17.2
1.0
1.6
0.8
SANYO: QIP64E
[LC75384NE-R]
10.0
12.0
1.25
0.5
1.25
0.5
1.25
0.18
12.0
116
17
32
33
48
49
64
10.0
0.5
1.7max
0.5
0.1
0.15
SANYO: SQFP64E
[LC75384NW]
Package Dimensions
unit: mm
3159-QIP64E
3190-SQFP64
Parameter
Symbol
Conditions
Ratings
Unit
min
typ
max
Supply voltage
VDD
6.0
10.5
V
Input high-level voltage
VIH
CL, DI, CE, MUTE
4.0
VDD
V
Input low-level voltage
VIL
CL, DI, CE, MUTE
VSS
1.0
V
Input voltage amplitude
VIN
VSS
VDD
Vp-p
Input pulse width
tW
CL
1
s
Setup time
tsetup
CL, DI, CE
1
s
Hold time
thold
CL, DI, CE
1
s
Operating frequency
fopg
CL
500
kHz
Allowable Operating Ranges at Ta = 25°C, V
SS = 0 V
Parameter
Symbol
Conditions
Ratings
Unit
Maximum supply voltage
VDD max
VDD
11
V
Maximum input voltage
VIN max
All input pins
VSS – 0.3 to VDD + 0.3
V
Allowable power dissipation
Pd max
Ta
≤ 85°C, when mounted on a printed
LC75384NE-R
500
mW
circuit board
LC75384NW
420
Operating temperature
Topr
–40 to +85
°C
Storage temperature
Tstg
–50 to +125
°C
Specifications
Absolute Maximum Ratings at Ta = 25°C, V
SS = 0 V
