Notes on Serial Data Transfer
1. The CL, DI, and CE pin signal lines must be covered (and thus shielded) by the ground pattern or formed from
shielded cable to prevent the high-frequency digital signals on those lines from entering the analog system.
2. The LC75384NE-R/NW data formats consist of 8 bits of address and 44 bits of data. When the data is sent in units of
8 bits each (i.e. 48 bits are actually sent), use the data transfer technique shown in figure 1.

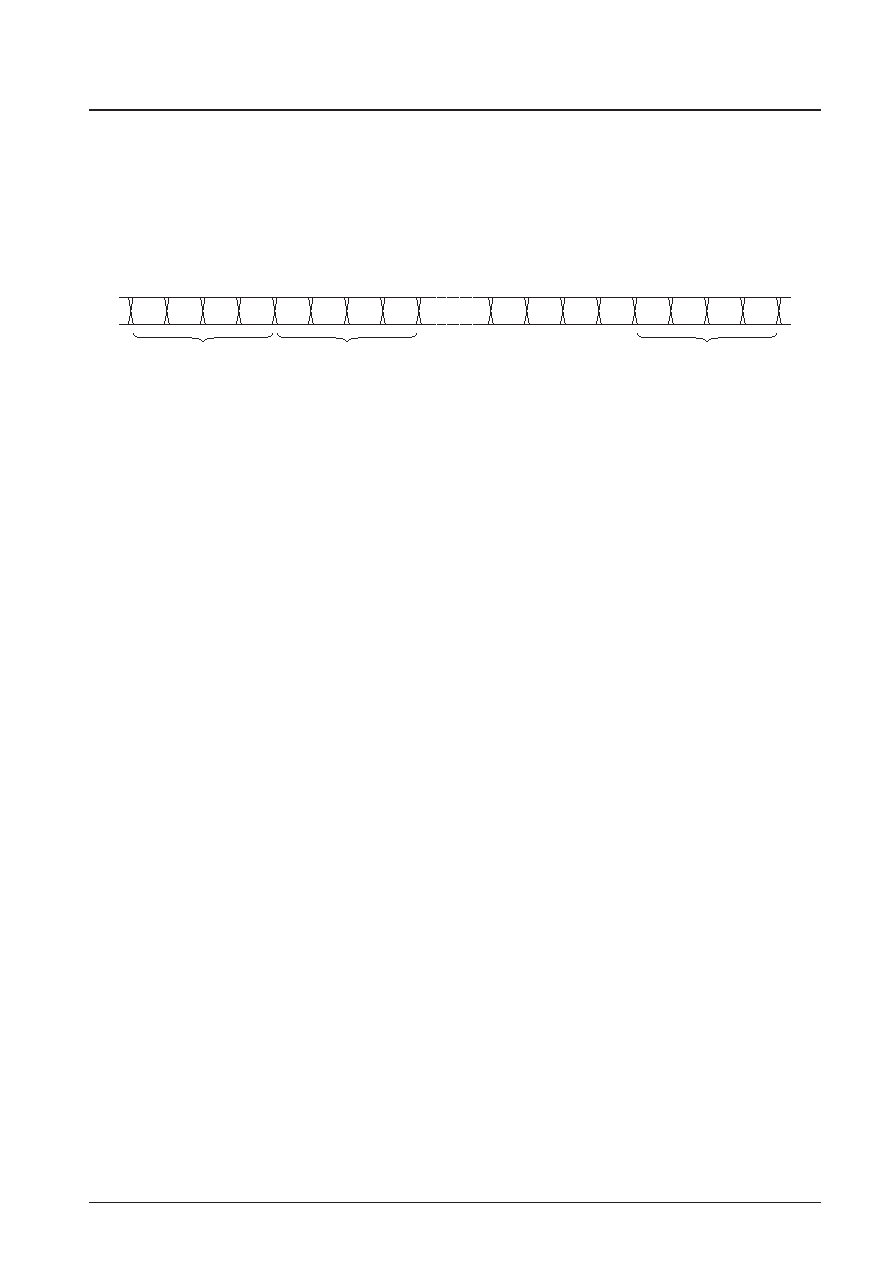

LC75384NE-R/NW data receptions in 8-bit units
No.6169-21/25
LC75384NE-R, 75384NW
Dummy data
3. During CCB transfers, this IC detects address matches on the rising edge of the CE signal. Therefore, applications
must set the CL signal low and then set it high at this time.
D43
D42
D41
D40
D39
D38
D37
D36
.......
D3
D2
D1
D0
X
Input switching control
Test mode control
X: don't care
